Abstracts:

This article is prepared by EUTTEST to analyze and explain the conducted immunity test method of RF field induction, which corresponds to the test method specified in IEC61000-4-6 and GBT17262.6 standard. EUTTEST is also an EMC test system provider, we will provide an available EMC test solution for you to purchase after the description of each test item. EUTTEST is also a supplier of EMC test systems.

Test Standard Name:

  • GB / T17626.6 - 2017 Electromagnetic compatibility Test and measurement techniques Conducted nuisance immunity for RF field induction
  • IEC61000-4-6 : 2013 , Electromagnetic compatibility ( EMC ) - Part4-6 : Testing and measurement techniques - Immunity to conducted disturbances , induced by radio-frequency fields , IDT

IEC61000-4-6 and GBT17262.6 test items:

How to choose the right test method

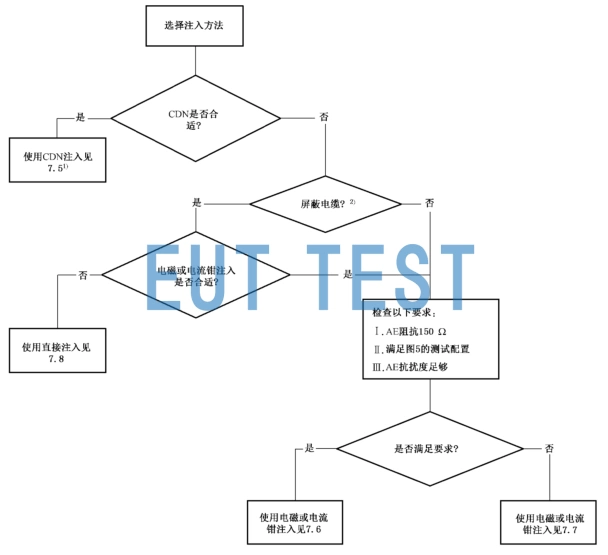

IEC61000-4-6 gives a flowchart for the selection of several different test methods through the following diagram, which should be chosen first for the CDN test method and then for the electromagnetic clamp method or the current clamp method

IEC61000-4-6 Flowchart for Selection of Test Methods

IEC61000-4-6 Flowchart for Selection of Test Methods

Introduction to the CDN Test Method for Coupled Decoupled Networks:

Learn more about:Testing conducted immunity using CDN coupled decoupling networks

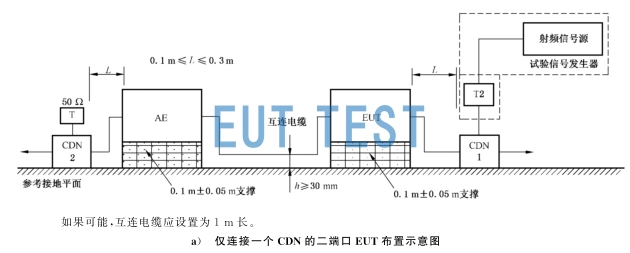

IEC61000-4-6 Coupling Decoupling Network CDN Test Method Test Configuration Chart

IEC61000-4-6 Coupling Decoupling Network CDN Test Method Test Configuration Chart

Introduction to the electromagnetic clamp test method:

Learn more about:Conducted Immunity Testing with Electromagnetic Clamps

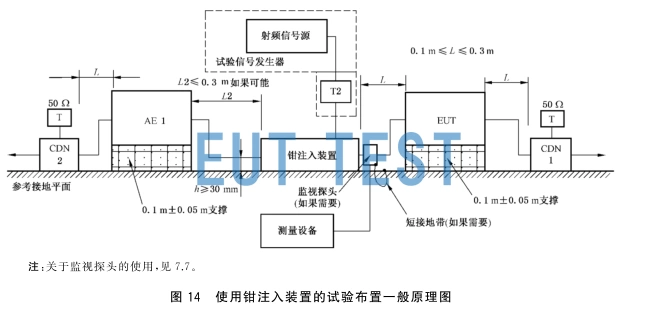

IEC61000-4-6 Test Configuration Diagram using Clamp Injection Test Method

IEC61000-4-6 Test Configuration Diagram using Clamp Injection Test Method

Introduction to the current clamp test method:

Learn more about:Testing conducted immunity with current clamps

The same configuration diagram is used for the current clamp and the electromagnetic clamp, which is not shown here again.



The above is the IEC61000-4-6 and GBT17262.6 standards for RF field induction conducted immunity test method analysis and description.
