YRS02 York Comb Spectrum and White Noise Signal Generator 30MHz-1GHz

Model: YRS02

Min. order: 1 unit
Stock: 0
Delivery: 1-16 weeks

Standards: /
Industry: /

Warranty: Original Import ; New Products ; Authorized Sales
Training: On-site training; Telephone; Email
Logistics: Shenzhen to National
Payment: Online banking

Product Price:

Tip: This device has been marked as discontinued in 2024!

Recommended alternative equipment:YRS04 White noise and comb signal generator Laboratory comparison source

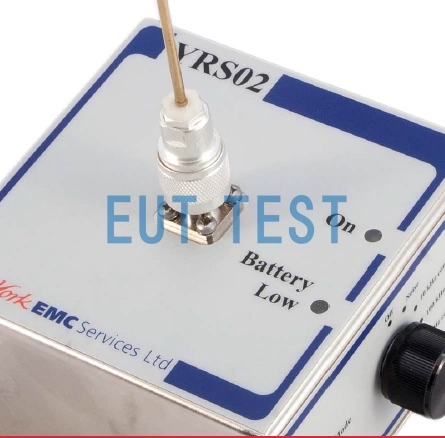

YRS02 Introduction:

The YRS02 Comb Spectrum and White Noise Signal Source is one of the test instruments produced by York in the UK and distributed by EUTTEST in China, and consists of three different configurations:

  • YRS02KIT01
  • YRS02KIT02
  • YRS Combination Kit

The difference between KIT01 and KIT02 is that the main unit is the same but the antennas are different, YRS02 is the main unit of signal generator configured in both kits, YRS02 can complete the continuous conducted white noise output from 9kHz to 1GHz, and the comb spectrum noise output from 5kHz to 1GHz, the noise amplitude does not change by more than 1dB every 12 months, and it can be utilized in the period of EMC darkroom verification, laboratory comparison and other routine procedures, the noise signal can be tested by sweep receiver for conducted and radiated, the step size can be adjusted and set manually. It can be used for EMC darkroom verification, laboratory comparison and other routine procedures. The noise signal can be tested using a swept receiver for both conducted and radiated, and the step size of the noise source output can be manually adjusted and set.

The YRS02 sequence is the same frequency as the YRS01 sequence but there are some differences, contact us for more information.

Noise signal source is harmful to human body, after the purchase of EUTTEST will provide a complete specification of the operating instructions and test guidance.

For more noise source selection, please refer to:

Mainframe technical parameters:

<<<<提醒:左右滑动表格>>>>
output connector50Ω N
size120 mm x 120 mm x 60 mm
weight1 kg
electric power source4*1.5V rechargeable battery
white noise source pattern
Available frequency9 kHz - 1 GHz Conduction Direct Outputs

30MHz - 1GHz radiated output (TLM02, MON03)

temperature stability<+/- 1 dB 9 kHz - 1 GHz, 15 °C - 30 °C

<+/- 2.5 dB 9 kHz - 1 GHz, 5 °C - 40 °C

Yorkemc Domestic AgentsEUTTEST
time stabilityLess than 1 dB per year
operating time7.5 hours
Comb Comb Spectrum Generator Mode
Available frequency5 kHz - 1 GHz Conduction Outputs

30MHz - 1GHz radiated output (TLM02, MON03)

Step Selection10kHz, 100kHz, 1MHz, 5MHz
temperature stability<+/- 0.5 dB 9 kHz - 1 GHz, 15 °C - 30 °C

<+/- 1 dB 9 kHz - 1 GHz, 5 °C - 40 °C

frequency stability<+/- 0.5 ppm, 5 °C -40 °C
operating time8h
<<<<提醒:左右滑动表格>>>>

Optional Models:

YRS Combination Kit Configuration Checklist:

<<<<提醒:左右滑动表格>>>>
Comes standard with accessories:YRS02 Reference comb spectrum noise comparison sourcereference source

YRS03 Reference comb spectrum noise comparison sourcereference source

TLM02 - 30 MHz to 300 MHz (optimum) 270 mm long top-loaded monopole antenna

MON03 - 200 MHz to 1 GHz (optimum) 270 mm long monopole antenna

MCN03 - 1 GHz to 6 GHz (optimum) monocone antenna

LSA03 - LISN adapter with IEC 320 style connector

CAL19 - 30 MHz to 6 GHz output powermeasured using a spectrum analyzer.

all modes (YRS03 only)CAL16: 9kHz-1GHz conduction output data

<<<<提醒:左右滑动表格>>>>

YRS02KIT01 Configuration list:

<<<<提醒:左右滑动表格>>>>
Comes standard with accessories:YRS02: Reference Noise Source Mainframe

MON03: 270mm long monopole antenna 200MHz-1GHz

CAL16: 9kHz-1GHz Conducted Output Data

IEC 320: Adapters for RJ11/RJ14/RJ25/RJ45 etc. ISNs

4 rechargeable batteries

<<<<提醒:左右滑动表格>>>>

Other optional accessories:

Contact us for more information on configuration details.

    • MON02: Telescopic rod antenna
    • MON03: 200 MHz to 1 GHz (optimum) 270 mm monopole antenna
    • TLM01 :200 MHz to 1 GHz (optimum) 100 mm top-loaded monopole antenna
    • TLM02 : 30 MHz to 300 MHz (optimum) 270 mm top-loaded monopole antenna
    • LSA03: Period verification of LISN adapter with IEC 320 style connector
    • NIA01: Period verification ISN adapter with RJ11/RJ14/RJ25/RJ45 style connection
    • CAL16: Conducted output power, 9 kHz to 1 GHz, measured using a spectrum analyser. all modes.
    • CAL17:Radiated field strength, 30 MHz to 1 GHz, measured on an OATS at 3 m or 10 m using a receiver. Noise, 1 MHz and 5 MHz modes, horizontal and vertical polarization .
    • CAL18: Radiated field strength, 30 MHz to 1 GHz, measured in a FAR at 3 m using a receiver.
    • Noise, 1 MHz and 5 MHz modes, horizontal and vertical polarisation.

YRS02 Related technical parameters curve diagram:

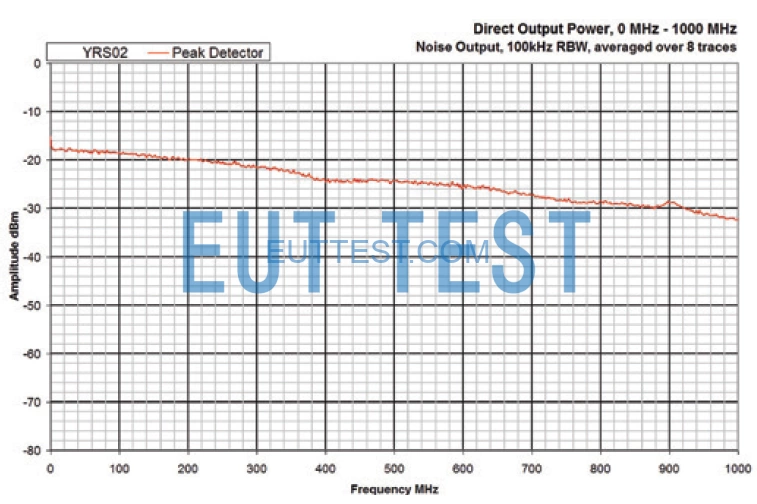

Direct Output Power Spectrogram DC-1GHz

Direct Output Power Spectrogram DC-1GHz

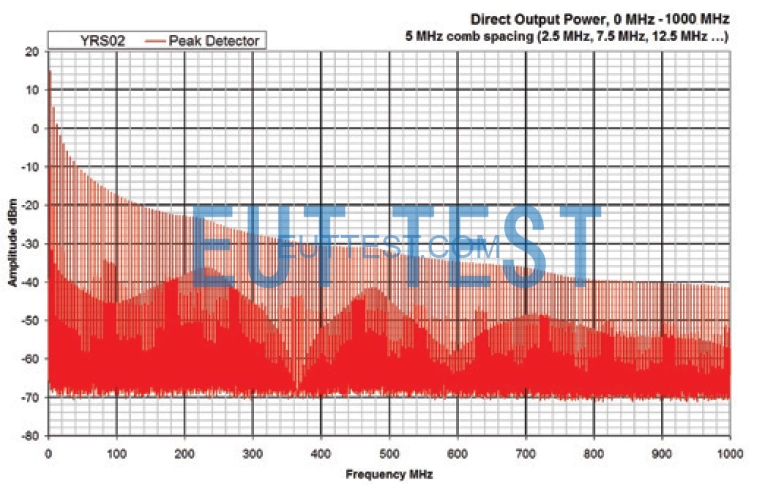

Direct output power spectrogram DC-1GHz comb

Direct output power spectrogram DC-1GHz comb



The above data is real test data, contact us for more information.

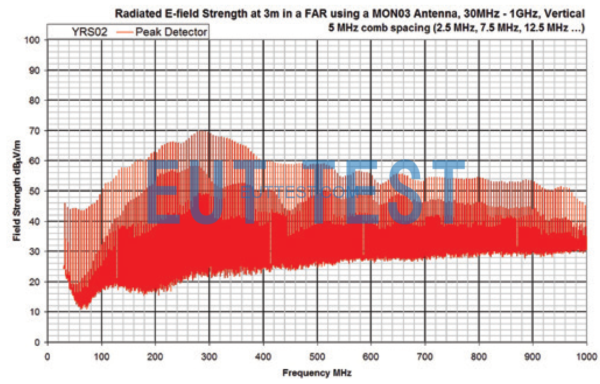

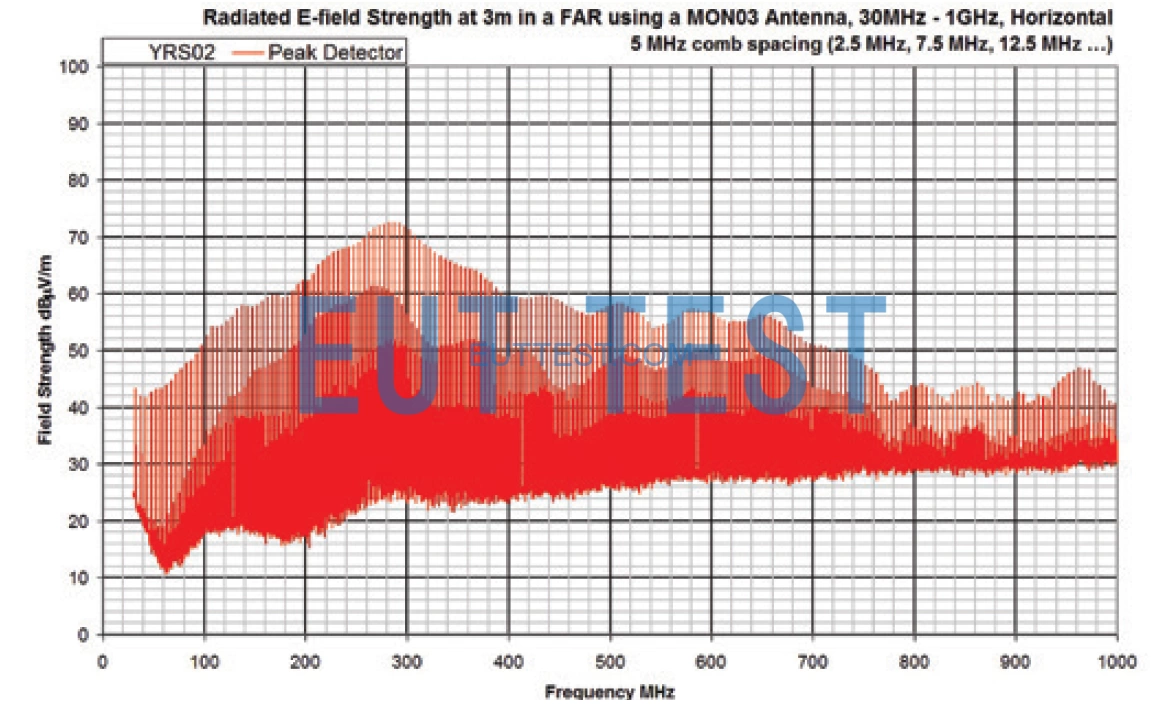

Output spectrogram in a 3-m method darkroom - horizontal polarization

Output spectrogram in a 3-m method darkroom - horizontal polarization

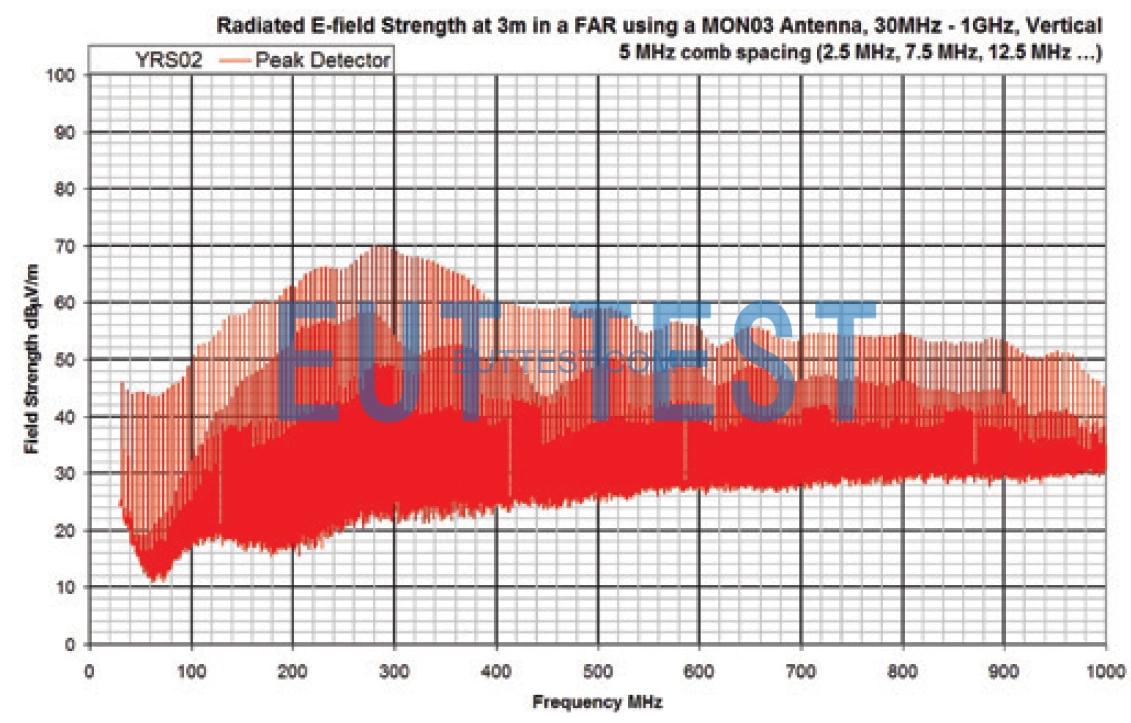

Output spectrogram in a 3-meter law darkroom-vertical polarization

Output spectrogram in a 3-meter law darkroom-vertical polarization

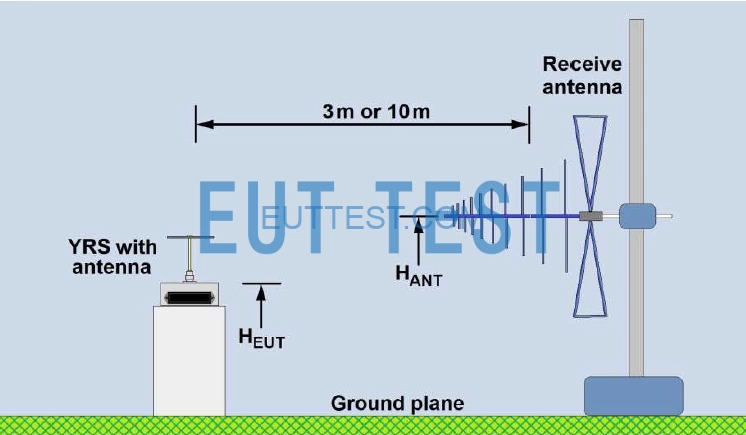

Configuration diagram for darkroom testing

Configuration diagram for darkroom testing



YRS02 serial products, like YRS01 serial products, can be connected to the LSA03 LISN adapter option for conducted emission comparison testing.
