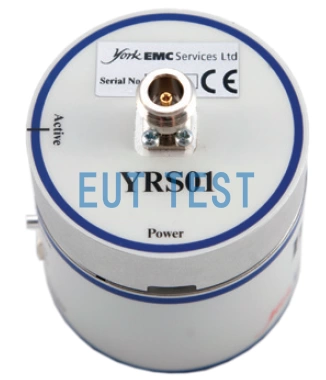

YRS01 York Comb Spectrum and White Noise Signal Source 30MHz-1GHz

Model: YRS01

Min. order: 1 unit
Stock: 0
Delivery: 1-16 weeks

Standards: /
Industry: /

Warranty: Original Import ; New Products ; Authorized Sales
Training: On-site training; Telephone; Email
Logistics: Shenzhen to National
Payment: Online banking

Product Price:

Tip: This device has been marked as discontinued in 2024!

Recommended alternative equipment:YRS04 White noise and comb signal generator Laboratory comparison source

Introduction:

The YRS01 Comb Spectrum and White Noise Signal Generator, manufactured by York emc in the UK and distributed by EUTTEST, is available in the following two different configurations of test kits:

  • YRS01KIT01
  • YRS01KIT02

They are both part of York's YRS family of products, and both include the main noise source YRS01. The difference between KIT01 and KIT02 is that the mainframe is the same but the antennas are different. The main noise source is capable of continuous conducted noise output from 9kHz to 1GHz and comb spectrum noise output from 5kHz to 1GHz, with the noise amplitude varying by no more than 1dB every 12 months, and can be used for routine procedures such as EMC darkroom verification and laboratory comparisons. The step size of the main noise source output can be manually adjusted and set, and the noise signal can be tested using a swept receiver for both conducted and radiated.

Noise signal source is harmful to human body, after the purchase of EUTTEST will provide a complete specification of the operating instructions and test guidance.

Mainframe technical parameters:

<<<<提醒:左右滑动表格>>>>
output connector50Ω N
size76*56mm

76*102mm

weight0.6kg
electric power source5V

white noise source pattern

Available frequency9 kHz - 1 GHz Conduction Outputs

30MHz - 1GHz radiated output (TLM02, MON03)

temperature stability<+/- 1 dB 9 kHz - 1 GHz, 15 °C - 30 °C

<+/- 2.5 dB 9 kHz - 1 GHz, 5 °C - 40 °C

Yorkemc Domestic AgentsEUTTEST
time stability<1 dB/year
operating time7.5h

Comb Comb Spectrum Generator Mode

Available frequency5 kHz - 1 GHz Conduction Outputs

30MHz - 1GHz radiated output (TLM02, MON03)

Step Selection10kHz, 100kHz, 1MHz, 5MHz
temperature stability<+/- 0.5 dB 9 kHz - 1 GHz, 15 °C - 30 °C

<+/- 1 dB 9 kHz - 1 GHz, 5 °C - 40 °C

frequency stability<+/- 0.5 ppm, 5 °C -40 °C
operating time8h
<<<<提醒:左右滑动表格>>>>

KIT01 configuration list:

<<<<提醒:左右滑动表格>>>>
Comes standard with accessories:Reference Noise Source Host

BP01 and BCH04: Rechargeable Battery Modules

MON03: 270mm long monopole antenna 200MHz-1GHz

CAL16: 9kHz-1GHz Conducted Output Data

<<<<提醒:左右滑动表格>>>>

KIT02 configuration list:

<<<<提醒:左右滑动表格>>>>
Standard AccessoriesReference Noise Source Host

BP01 and BCH04: Rechargeable Battery Modules

TLM02: 270mm top loaded monopole antenna 30MHz-200MHz

MON03: 270mm long monopole antenna 200MHz-1GHz

LSA03: LISN Adapter Configuration IEC320 Port Connector

CAL16: 9kHz-1GHz Conducted Output Data

<<<<提醒:左右滑动表格>>>>

Other optional accessories:

Contact us for more information on configuration details.

  • MON02: Telescopic rod antenna
  • MON03: 200 MHz to 1 GHz (optimum) 270 mm monopole antenna
  • TLM01 :200 MHz to 1 GHz (optimum) 100 mm top-loaded monopole antenna
  • TLM02 : 30 MHz to 300 MHz (optimum) 270 mm top-loaded monopole antenna
  • LSA03: Period verification of LISN adapter with IEC 320 style connector
  • NIA01: Period verification ISN adapter with RJ11/RJ14/RJ25/RJ45 style connection
  • CAL16: Conducted output power, 9 kHz to 1 GHz, measured using a spectrum analyser. all modes.
  • CAL17:Radiated field strength, 30 MHz to 1 GHz, measured on an OATS at 3 m or 10 m using a receiver. Noise, 1 MHz and 5 MHz modes, horizontal and vertical polarization .
  • CAL18: Radiated field strength, 30 MHz to 1 GHz, measured in a FAR at 3 m using a receiver.
  • Noise, 1 MHz and 5 MHz modes, horizontal and vertical polarisation.

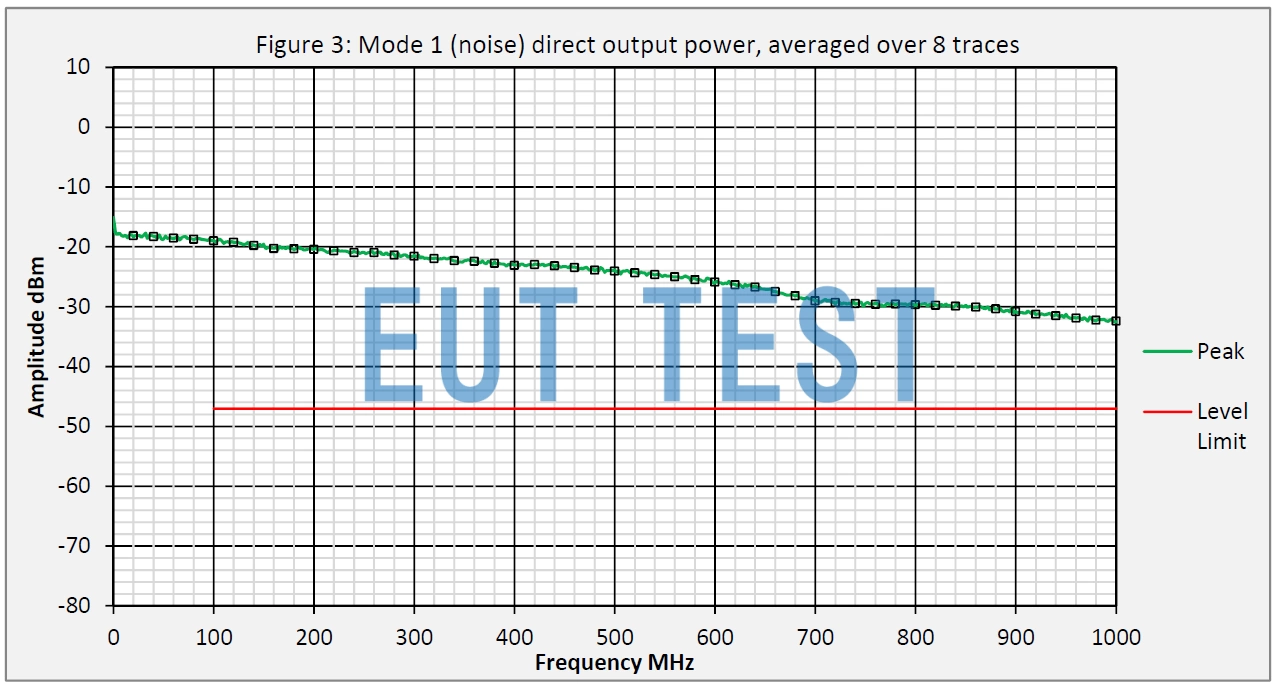

YRS01 Direct output power spectrogram DC-1GHz-noise

Direct output power spectrogram DC-1GHz-noise

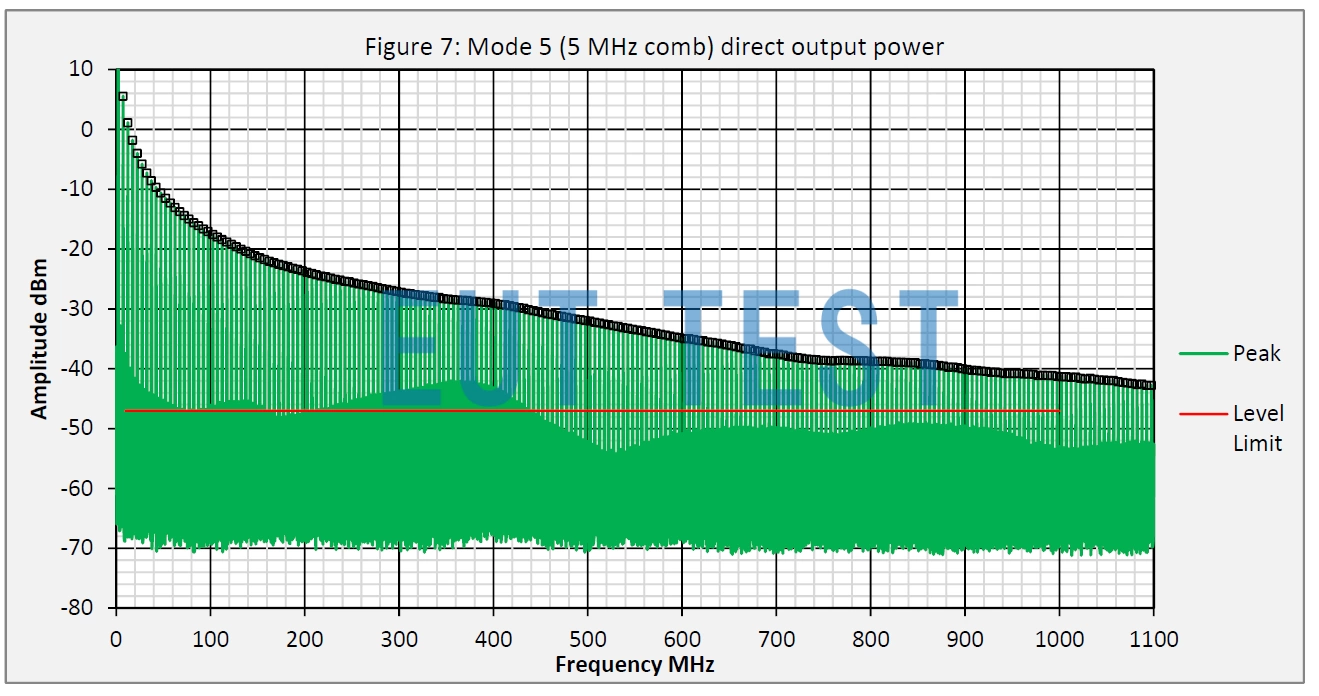

YRS01 Direct Output Power Spectrogram DC-1GHz-comb

Direct Output Power Spectrogram DC-1GHz-comb

The above data is real test data, contact us for more information.

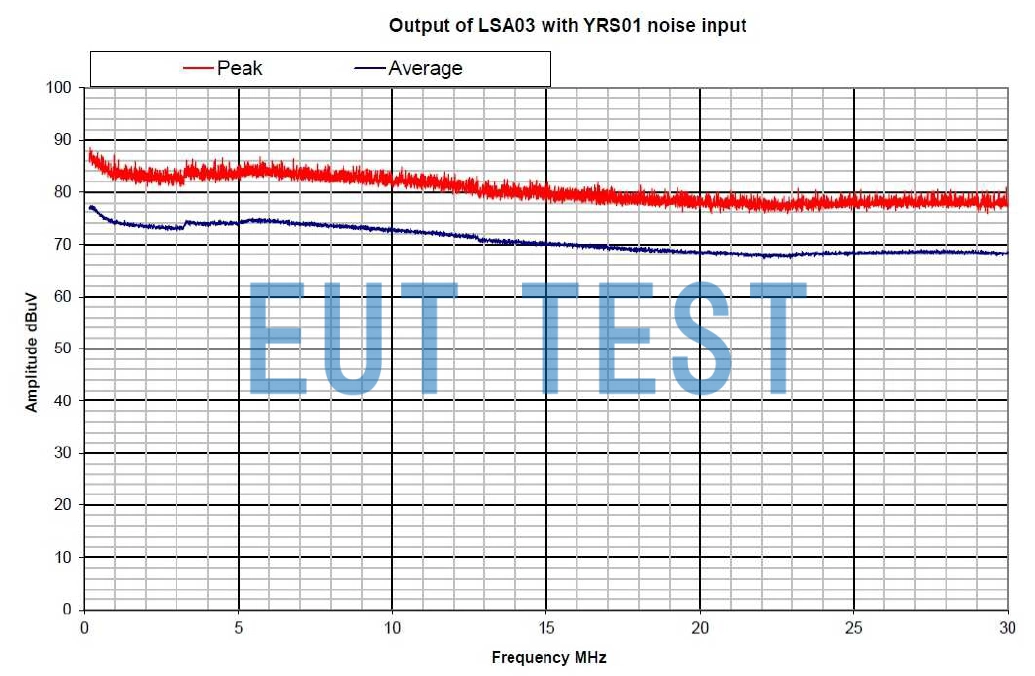

YRS01 Spectrogram of white noise output for LISN comparison testing

Spectrogram of white noise output for LISN comparison tests performed

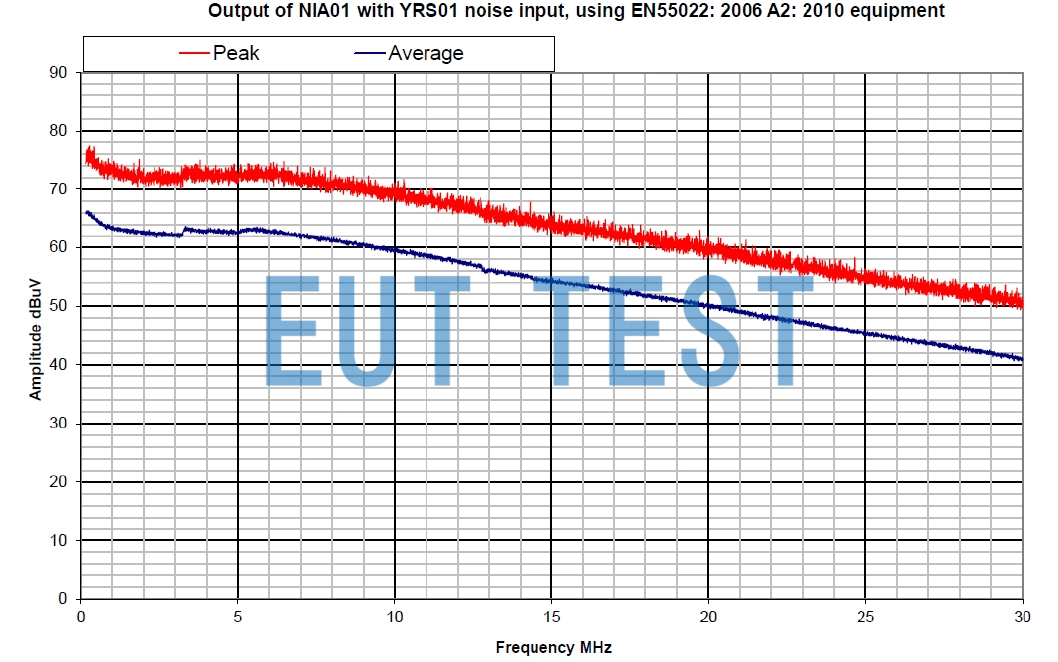

YRS01 Spectrogram of white noise output for ISN comparison testing

Spectrogram of white noise output for ISN comparison tests performed

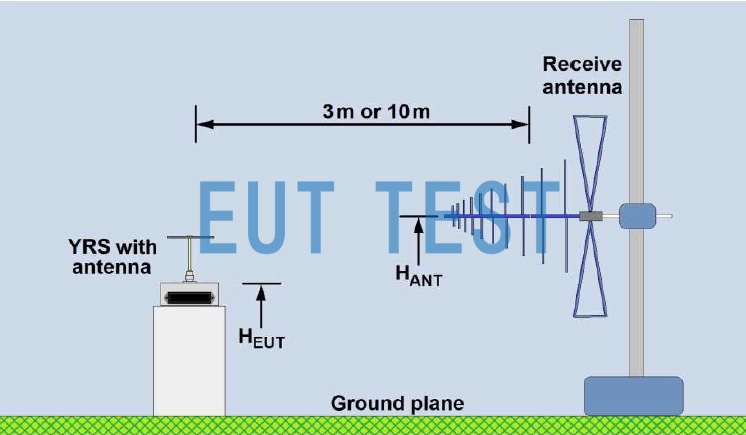

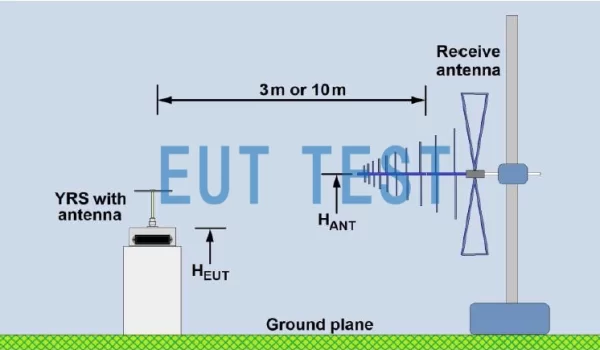

Configuration diagram for darkroom testing with YRS01KIT01 or YRS01KIT02

Configuration diagram for darkroom testing

Test Spectrogram of YRS01 mainframe in darkroom and other frequencies Contact EUTTEST for more information.
