Company Description:
York (formerly known as York emc service) is a third party laboratory and manufacturer of white noise and comb spectrum signal generators from the UK, York is short for Eurofins York emc. EUTTEST represents the company in the UK and sells all of its products, providing quotations and installation and training services.
Test Instrument Selection Guide:
Shenzhen EUTTEST agent sales Eurofins York emc all products and test instruments, you can preview the selection from the table below or click on the model number to enter the view of the specific technical parameters, select the model number and then contact us to obtain the required equipment quotation information.

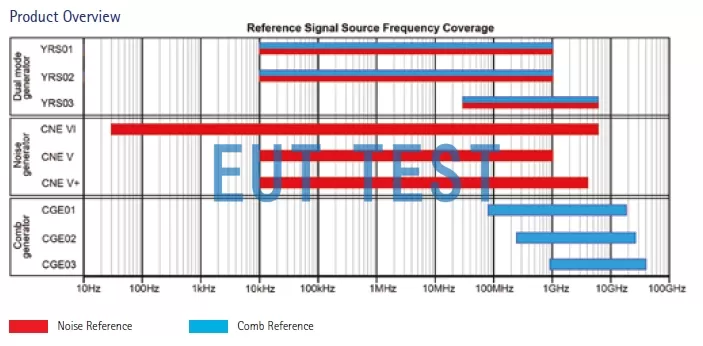

I. White noise, comb signal comparison source

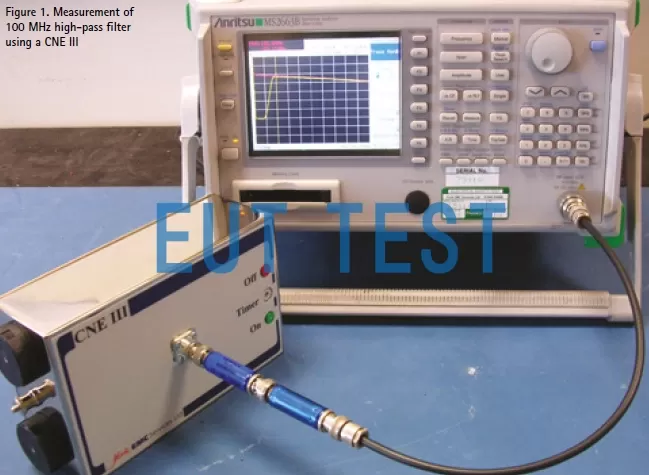

- Conducted Direct OutputCan be used as a signal source for various filters, LISN performance verification.
- Conducted Launch VerificationTest data comparison and period verification for LISN artificial power networks.
- Radiation Emission VerificationUsed for test data comparison and period verification in 1m, 3m and 10m method radio wave darkrooms.
- After purchase, EUTTEST provides Chinese language user manuals and maintenance documentation, as well as integration services with EMC32, receivers and antennas. It also provides on-site instruction service.
Note: The following parameters are organized by our company, if there is a discrepancy with the original parameters, the latest parameters of the original factory shall prevail. Click on the model number to view the detailed parameters.
YRS sequence | |||||
Product model | Signal Type | Conducted Direct Output | Conducted Launch Verification | Radiation Emission Verification | stockpiles |
YRS04 | YRS04KIT01 YRS04KIT02 | 1kHz-1GHz | 9kHz-30MHz | 30MHz-1GHz | quotable |
YRS05 | YRS05KIT01 YRS05KIT02 | 25Hz-6GHz | 9kHz-30MHz | 30MHz-6GHz | quotable |
YRS01 | continuous white noise comb-spectrum signal | 9kHz-1GHz | not have | 200MHz-1GHz | stop production |
YRS01KIT02 | continuous white noise comb-spectrum signal | 9kHz-1GHz | 9kHz-30MHz | 30MHz-1GHz | stop production |
YRS02 | continuous white noise comb-spectrum signal | 9kHz-1GHz | not have | 200MHz-1GHz | stop production |
YRS02KIT02 | continuous white noise comb-spectrum signal | 9kHz-1GHz | 9kHz-30MHz | 30MHz-1GHz | stop production |
YRS03KIT01 | continuous white noise comb-spectrum signal | 10MHz-6GHz | not have | 1GHz-6GHz | stop production |
YRS03KIT02 | continuous white noise comb-spectrum signal | 10MHz-6GHz | not have | 30MHz-6GHz | stop production |
YRS combination kit | continuous white noise comb-spectrum signal | 9kHz-6GHz | 9kHz-30MHz | 30MHz-1GHz | stop production |
CNEV, CNEVI sequences | |||||
Product model | Signal Type | Conducted Direct Output | Conducted Launch Verification | Radiation Emission Verification | stockpiles |
CNEVKIT01 | continuous white noise | 9kHz-1GHz | not have | 200MHz-1GHz | stop production |
CNEVKIT02 | continuous white noise | 9kHz-1GHz | 9kHz-30MHz | 30MHz-1GHz | stop production |
CNEVKIT03 | continuous white noise | 9kHz-3.5GHz | not have | 200MHz-1GHz | stop production |
CNEVKIT04 | continuous white noise | 9kHz-3.5GHz | 9kHz-30MHz | 30MHz-3.5GHz | stop production |
CNEVIKIT01 | continuous white noise | 30 Hz-6GHz | 9kHz-30MHz | 200MHz-1GHz | stop production |
CNEVIKIT02 | continuous white noise | 30 Hz-6GHz | 9kHz-30MHz | 30MHz-6GHz | stop production |
CGE01CGE02, CGE03 sequences | |||||
Product model | Signal Type | Conducted Direct Output | Conducted Launch Verification | Radiation Emission Verification | stockpiles |
CGE01KIT01 | comb-spectrum signal | 50MHz-18GHz Step 80MHz or 100MHz | not have | not have | quotable |
CGE01KIT02 | comb-spectrum signal | not have
| not have
| built-in antenna 1GHz-18GHz Step 80MHz or 100MHz | quotable |
CGE01KIT03 | comb-spectrum signal | 50MHz-18GHz Step 80MHz or 100MHz | not have
| external antenna 1GHz-18GHz | quotable |
CGE01KIT04 | comb-spectrum signal | 50MHz-18GHz Step 50MHz or 80MHz | not have
| not have | quotable |
CGE01KIT05 | comb-spectrum signal | not have | not have
| built-in antenna 1GHz-18GHz Step 80MHz or 100MHz | quotable |
CGE01KIT06 | comb-spectrum signal | 50MHz-18GHz Step 50MHz or 80MHz | not have
| external antenna 1GHz-18GHz | quotable |
CGE02KIT01 | comb-spectrum signal | 250MHz-26GHz | not have | not have | stop production |
CGE02KIT02 | comb-spectrum signal | not have | not have | built-in antenna 1GHz-26GHz | stop production |
CGE02KIT03 | comb-spectrum signal | 250MHz-26GHz | not have | external antenna 1GHz-26GHz | stop production |
CGE03KIT01 | comb-spectrum signal | 900MHz-40GHz | not have | not have | stop production |
CGE03KIT02 | comb-spectrum signal | 900MHz-40GHz | not have | external antenna 1GHz-26GHz | stop production |
II. Active receiving antenna
ARA01KIT01 200MHz-1GHz (30MHz-300MHz optional)
III. Harmonic flicker generator
HFG01KIT01 Harmonic signals 50Hz-2kHz, flicker signals 1Hz and 8.33Hz
HFG02KIT01 Harmonic signals 50Hz-2kHz/60-2.4kHz, flicker signals 1Hz and 8.33Hz/8.6Hz
Fourth, the cable shielding efficiency test coupling clamp
CCC01KIT01 Cable Shielding Performance Test 10kHz-1GHz
