XSLP 9142 Schwarzbeck Dual Polarized Log Periodic Antenna

Model: XSLP 9142
Brand: Schwarzbeck

Min. order: 1 unit
Stock: 0
Delivery: 1-16 weeks

Standards: /
Industry: /

Warranty: Original Import ; New Products ; Authorized Sales
Training: On-site training; Telephone; Email
Logistics: Shenzhen to National
Payment: Online banking

Product Price:

Introduction:

XSLP 9142 dual-polarized UHF-SHF logarithmic periodic antenna is produced by Germany Schwarzebck and authorized by Shenzhen EUTTEST agent sales of one of the test antennas, the antenna has two pairs of independent and orthogonal polarization of the antenna oscillator, and configured with two different input connectors, the EMC testers can be injected into the input of the antenna at the same time two different RF signals can be used for military marine radio countermeasures. EMC testers can inject two different RF signals at the same time at the antenna input, which can be used for military marine radio countermeasures. The head of the antenna and the middle of the longest oscillator is defined as the reference point of this antenna, using this reference point can meet the test distance requirements of most EMC standards, but when the test distance is <0.7m the uncertainty will be increased, in addition to the phase center is located in the measured frequency of the half-wave length of the oscillator.

We also provide power amplifiers, signal sources, antenna racks, and other test instruments and equipment that can be used for this antenna.

If you need to use lower test frequency, please purchase:XSLP 9143 Dual Polarized Log Periodic Antenna 300MHz-5.5GHz The

Technical parameters:

<<<<提醒:左右滑动表格>>>>
Model numberXSLP 9142
manufacturerSCHWARZBECK, Germany
agentShenzhen EUTTEST
Available frequency700MHz-5GHz
nominal frequency800MHz-3GHz
gain4-7dBi
impedance50Ω
3dB wave width50-80°
Maximum input power50W continuous
size200*474*200mm
quality0.8kg
<<<<提醒:左右滑动表格>>>>

Graph of related technical parameters:

The gain and antenna coefficients for the A and B input connectors of the XSLP 9142 are the same as can be seen in the four diagrams below.

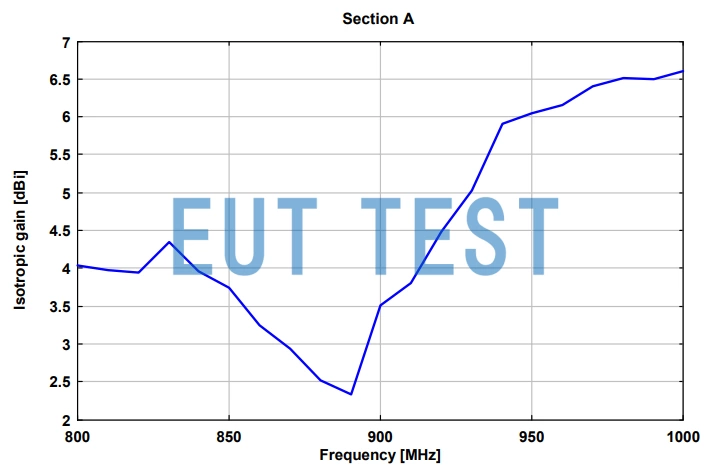

Gain Curve for Connector A of XSLP 9142

Gain graph for connector A

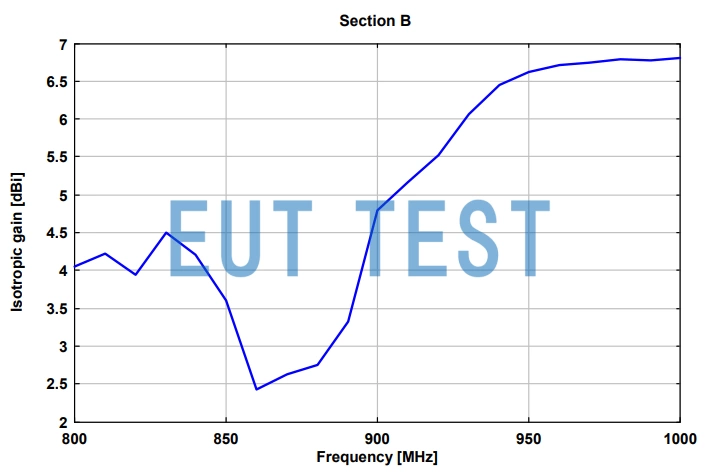

Gain Curve for Connector B of XSLP 9142

Gain graph for connector B

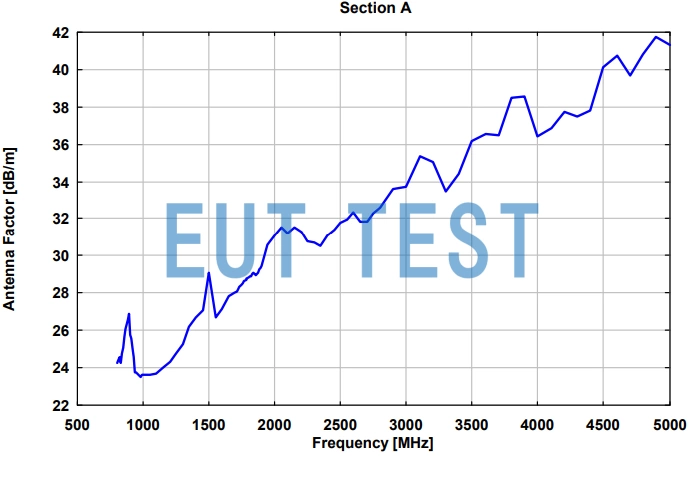

Antenna Coefficient Plot for Connector A of XSLP 9142

Antenna factor plot for connector A

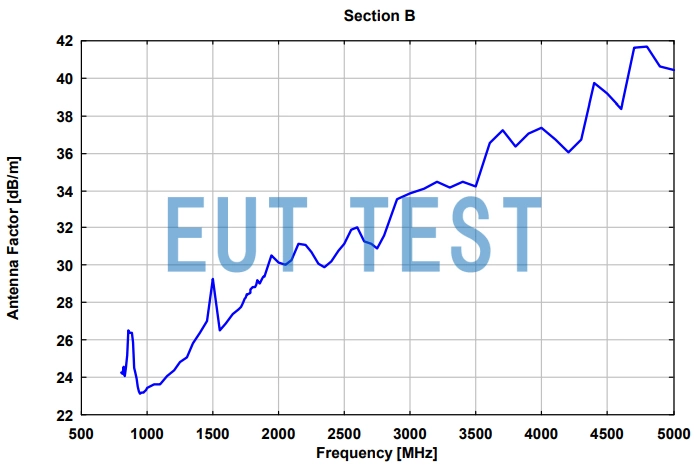

Antenna Coefficient Plot for Connector B of XSLP 9142

Antenna Factor Plot for Connector B
