Introduction：
The VUSLP 9111 F is a linearly polarized log-periodic broadband antenna from Schwarzbeck, Germany. New for 2020, the antenna can be disassembled for easy storage and transport, and can be used for radiation sensitivity testing of DUTs in a broadband frequency range of 75 MHz to 4000 MHz, as well as for portable applications, such as monitoring vehicles. The antenna can also be used for portable applications such as monitoring vehicles.
The antenna utilizes a detachable quick link kit that allows you to remove the back end of the antenna in a matter of seconds, reducing the size of the antenna to 1/2 the size of the antenna, solving the problem of large antenna size for outdoor use that is not easy to transport and difficult to install in the field. The antenna is also supplied in a portable transport case to protect and transport the disassembled antenna.
Technical parameters：
<<<<提醒：左右滑动表格>>>>| Model number | VUSLP 9111 F |
| manufacturer | Schwarzbeck |
| agent | Euttest |
| Device name | Detachable log-periodic antenna |
| Recommended Test Frequency Range | 80MHz-3GHz |
| Maximum test frequency range. | 75MHz-4GHz |
| polarize | biometrics |
| material (that sth is made of) | aluminum |
| impedance | 50Ω |
| Maximum input power | 1000 W (<300 MHz) 300 W (1 GHz) |
| connector | N mother |
| size | 1340 x 1530 x 110 mm |
| weight | 3.0kg |
| Antenna center support nut | 3/8″ & M12 |
| Option-Antenna Adapter | KG9201 |
| option | CCA 9111 F: Transportation box. KG 9201 Adapter: Antenna adapter for mounting on a vehicle, including the function of changing the antenna polarization. AM 9144 Mast: Antenna Triangle Bracket |
Graph of related technical parameters：

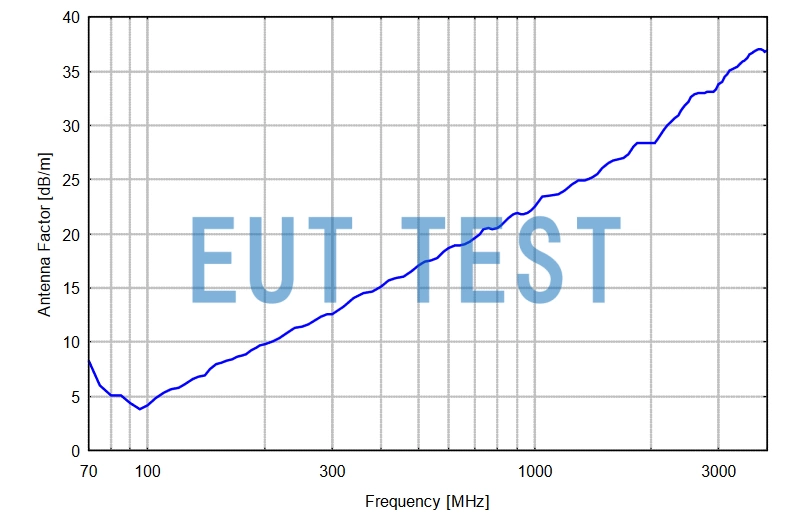

Antenna Coefficient Graph

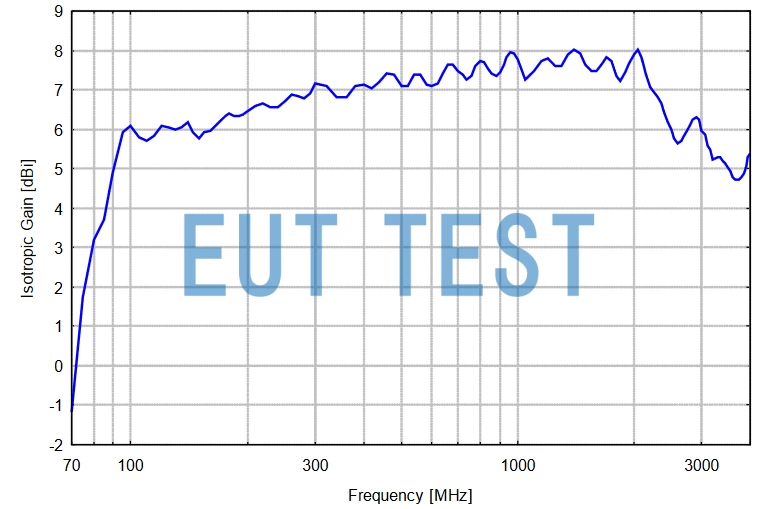

Isotropic Gain Curve
