Introduction：
VUSLP 9111 E is a linearly polarized logarithmic periodic broadband antenna manufactured by Schwarzbeck, Germany, which is authorized to be sold and serviced by our company. The antenna can be used for short distance electric field emission in the frequency range of 65MHz-4GHz. If you input 1kW power, you will get the electric field area up to 400V/m. You can also use this antenna to test the requirement of 1m, 3m, 10m in the darkroom of electric wave.
Technical parameters：
| Model number | VUSLP 9111 E |
| producers | Schwarzbeck |
| agent | Euttest |
| Minimum Test Frequency | 70MHz-3GHz |
| Maximum Test Frequency | 65MHz-4GHz |
| polarize | linear polarization |
| material (that sth is made of) | aluminum |
| impedance | 50Ω |
| Maximum Input Power | 1kW (at test frequencies less than 300MHz) 300W (at 1GHz test frequency) |
| connector | N mother |
| size | 1590 x 1930 x 110 mm |
| weight | 3.1kg |
| Option-Antenna Adapter | AM9144 KG9201 |
Graph of related technical parameters：

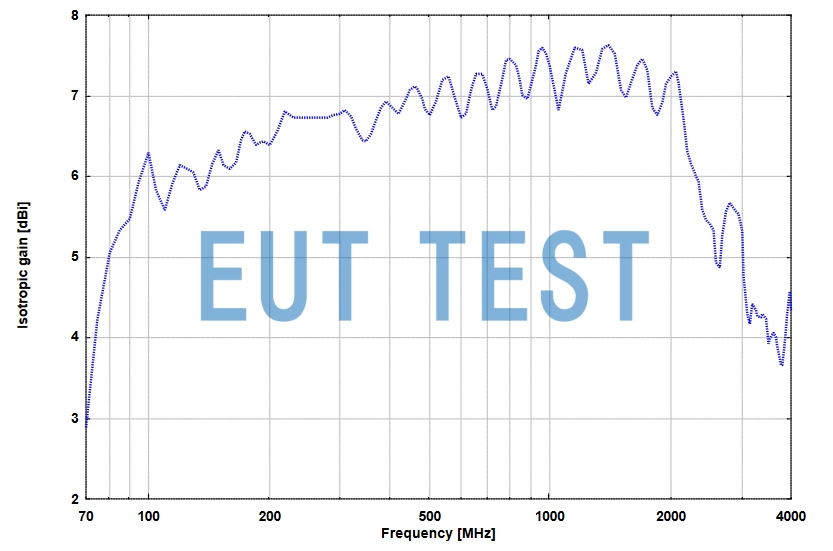

Isotropic Gain Curve

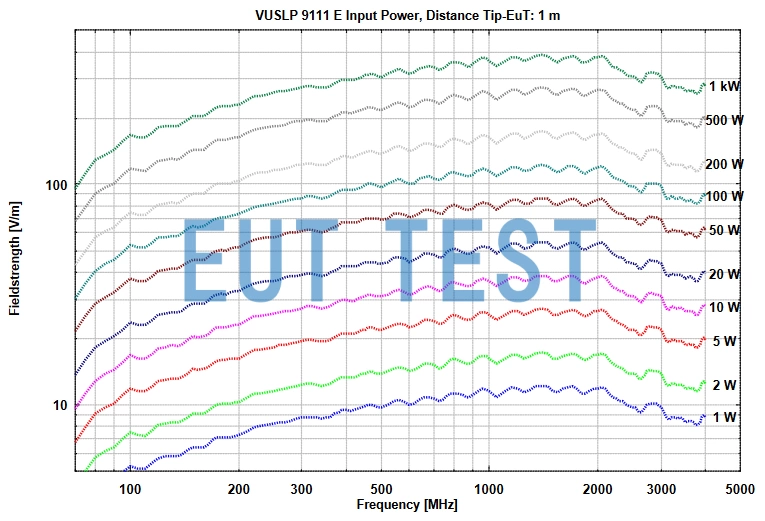

Plot of input power versus electric field strength at 1 meter test distance
