VUSLP 9111-1000 Schwarzbeck Log Periodic Antennas

Model: VUSLP 9111-1000
Brand: Schwarzbeck

Min. order: 1 unit
Stock: 0
Delivery: 1-16 weeks

Standards: /
Industry: /

Warranty: Original Import ; New Products ; Authorized Sales
Training: On-site training; Telephone; Email
Logistics: Shenzhen to National
Payment: Online banking

Product Price:

Synopsis.

The VUSLP 9111-1000 is a linearly polarized logarithmic periodic broadband antenna from Schwarzbeck, Germany, that you can use for radiated emissions and radiated immunity testing in the frequency range (0.75) 0.8 GHz - 3 (4) GHz. With a width of only 220 mm, the 9111-1000 is much wider than the 9111-1000. 9111-400 The width of the antenna is smaller, but a smaller size means that this antenna will not perform well for low frequency use, so please select the appropriate antenna for your test frequency needs.

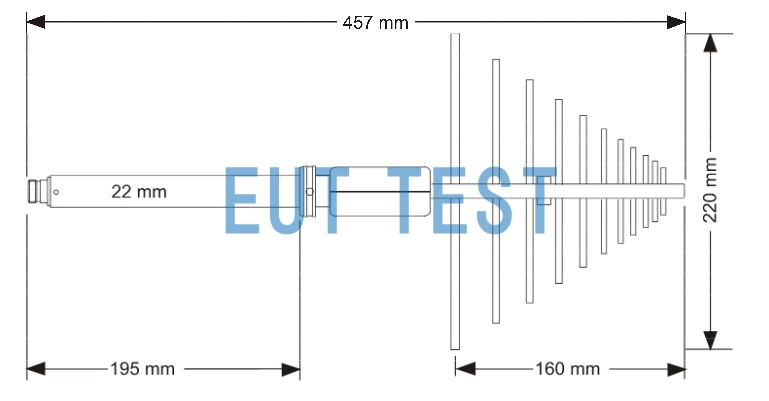

Physical dimensions of the VUSLP 9111-1000

Physical dimensions

Technical parameters:

<<<<提醒:左右滑动表格>>>>
Model numberVUSLP 9111-1000
manufacturerSchwarzbeck
agentEuttest
Recommended frequency range of use800MHz-3GHz
Maximum frequency range750MHz-4GHz
3dB flap width - E40 degrees - 65 degrees
3dB flap width - H90 degrees - 110 degrees
polarizelinear polarization
material (that sth is made of)aluminum
impedance50Ω
Maximum input power300W (at 1GHz)
connectorN mother
size460 x 200 x 65 mm
weight0.9kg
Option-Antenna AdapterAA 9203 / AA 9202
<<<<提醒:左右滑动表格>>>>

Graph of related technical parameters:

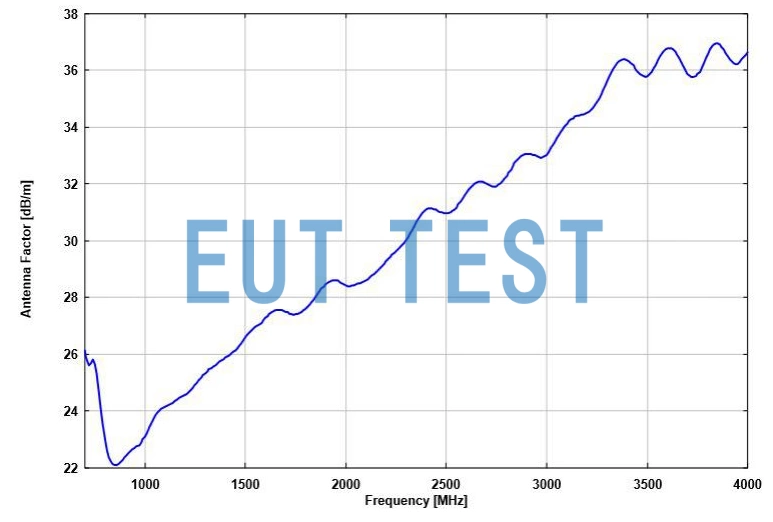

Antenna Coefficient Plot for VUSLP 9111-1000

Antenna Coefficient Graph

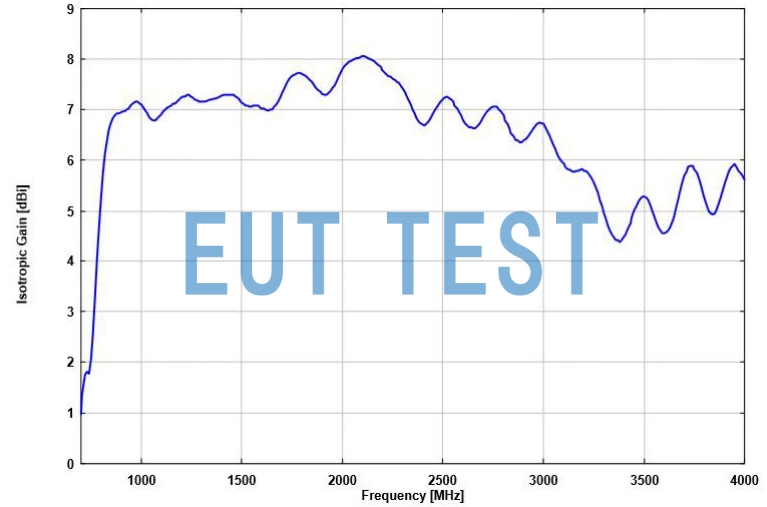

Isotropic Gain Curve for VUSLP 9111-1000

Isotropic Gain Curve
