VULP 9118 H SCHWARZBECK Log Periodic Antenna

Model: VULP 9118 H
Brand: Schwarzbeck

Min. order: 1 unit
Stock: 0
Delivery: 1-16 weeks

Standards: /
Industry: /

Warranty: Original Import ; New Products ; Authorized Sales
Training: On-site training; Telephone; Email
Logistics: Shenzhen to National
Payment: Online banking

Product Price:

Synopsis.

VULP 9118 H is a logarithmic periodic antenna produced by Schwarzbeck, Germany, authorized by euttest to sell and provide quotations and after-sales service, the antenna can be used in the test frequency range of 26MHz-1.8GHz, in 30MHz can be input to the antenna's input 2000W power, very suitable for the test of the radiated immunity test limits in the low frequency is higher, in the high frequency is lower test application, the antenna is larger in size, the purchase of the installation confirmation. The antenna is very suitable for testing the radiation immunity test limit value at low frequency and low frequency, the antenna is large in size, please contact us for on-site installation confirmation before purchasing.

Technical parameters:

<<<<提醒:左右滑动表格>>>>
Model numberVULP 9118 H
manufacturerSchwarzbeck
agentEuttest
Test frequency range30MHz-1300MHz
Available test frequency range26MHz-1800MHz
polarizebiometrics
material (that sth is made of)aluminum
impedance50Ω
VSWRTypical: <1.5

Maximum value: <2.5

3dB -E field50°-65°
3dB-H field90°-120°
Maximum input power2000W input at 30MHz

300W input at 1GHz

connectorN mother
size5120 x 4850 x 380 mm
weight35 kg
Option-Antenna Adaptersupport sth. in the center
<<<<提醒:左右滑动表格>>>>

Graph of related technical parameters:

We will provide you with the following technical data free of charge in an excel data sheet together with your purchase.

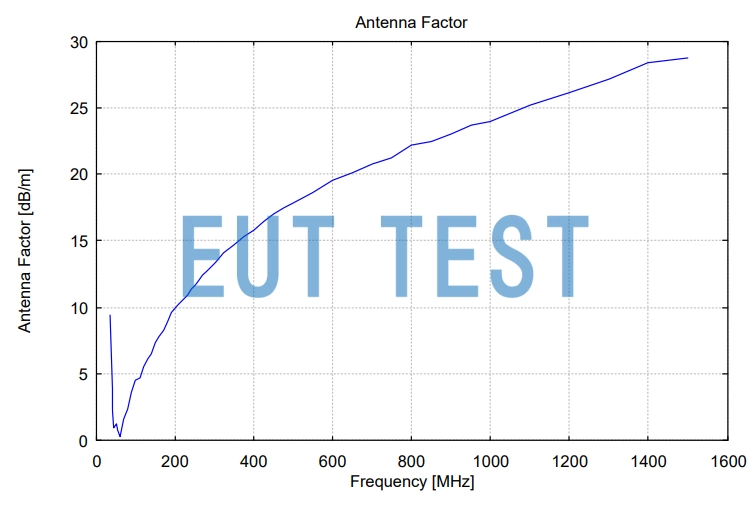

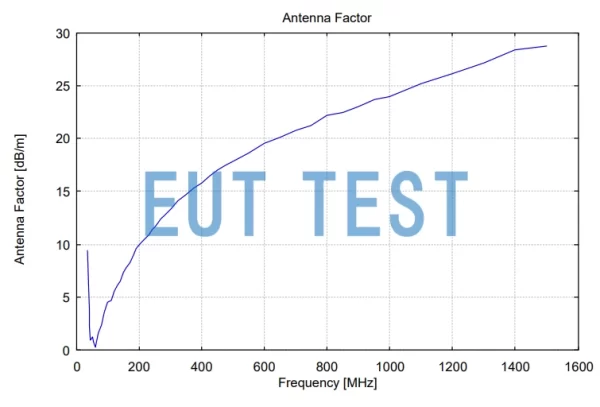

Antenna Factor Plot for VULP 9118 H

Antenna Coefficient Graph

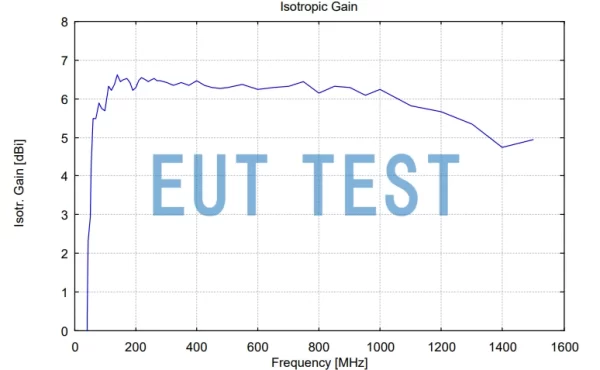

 Isotropic Gain Curve for VULP 9118 H

Isotropic Gain Curve

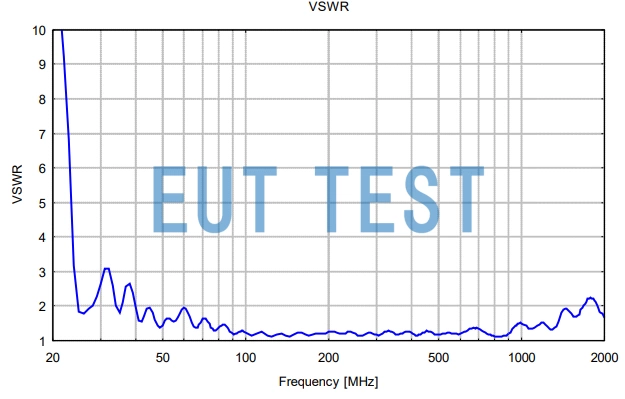

 VSWR VSWR graph for VULP 9118 H

VSWR VSWR graph
