VULP 9118 G Special Schwarzbeck Log Periodic Antenna

Model: VULP 9118 G Special
Brand: Schwarzbeck

Min. order: 1 unit
Stock: 0
Delivery: 1-16 weeks

Standards: /
Industry: /

Warranty: Original Import ; New Products ; Authorized Sales
Training: On-site training; Telephone; Email
Logistics: Shenzhen to National
Payment: Online banking

Product Price:

Introduction:

VULP 9118 G Special is a log-periodic antenna manufactured by Schwarzbeck (Germany) and distributed and serviced by EUTTEST Shenzhen. The antenna is available from 45 MHz to 1500 MHz, and the specially customized special log-periodic antenna is capable of inputting up to 1 kW of power over the full frequency range, which allows EMC testers to test the immunity of DUTs with high radiated field strengths.

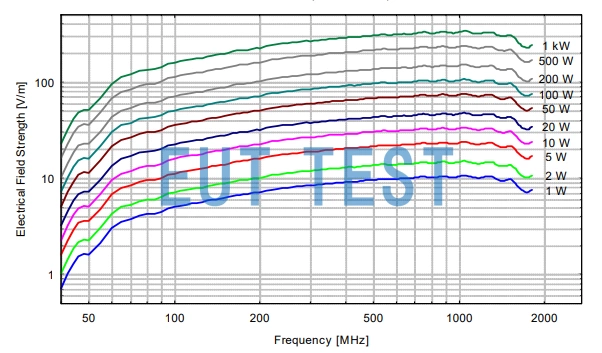

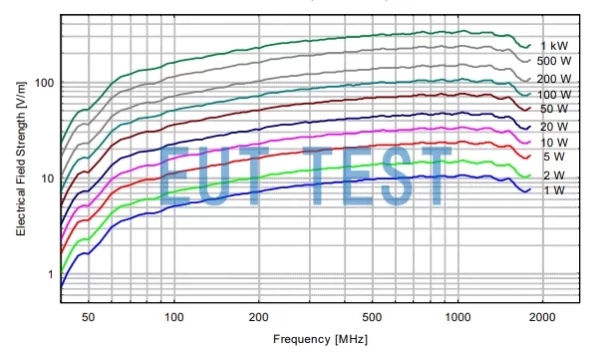

VULP 9118 G Special Input Power vs. Field Strength - 1 meter test distance

Input power vs. field strength graph - 1 meter test distance

The Special version has the same gain as the VULP 9118 G. The difference is that the Special version collapses the longest antenna oscillator at the rear end, which prevents the antenna from being too long and touching the darkroom ground plane when switching antenna polarization.

Technical parameters:

<<<<提醒:左右滑动表格>>>>
Model numberVULP 9118 G Special
manufacturerSchwarzbeck
agentShenzhen EUTTEST
Frequency range.45MHz-1500MHz
Number of oscillators24
gain7dBi
radiance factor1-33dB/m
impedance50 Ω
Maximum input power1kW
Maximum oscillator width1930mm
Antenna Length2550mm
connectorN mother
weight5 kg
<<<<提醒:左右滑动表格>>>>

Graph of related technical parameters:

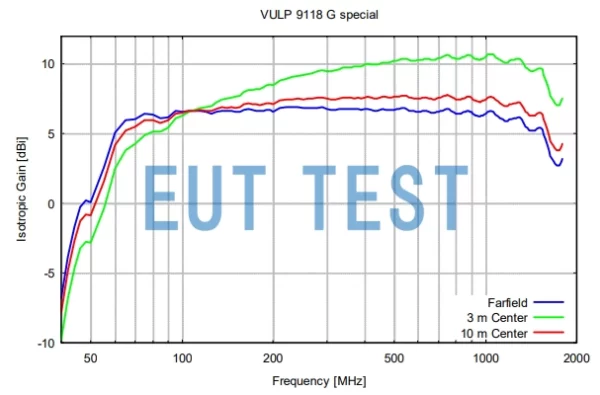

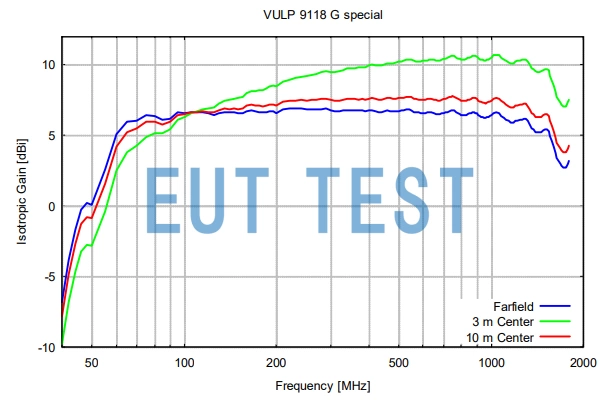

Isotropic gain graph for VULP 9118 G special

Isotropic Gain Curve

There is more about antennas with folded antenna oscillators:

VULP 9118 G special (this page)

VULP 9118 E special

VULP 9118 D special
