VULP 9118 D Special Schwarzbeck Log Periodic Antenna

Model: VULP 9118 D Special
Brand: Schwarzbeck

Min. order: 1 unit
Stock: 0
Delivery: 1-16 weeks

Standards: /
Industry: /

Warranty: Original Import ; New Products ; Authorized Sales
Training: On-site training; Telephone; Email
Logistics: Shenzhen to National
Payment: Online banking

Product Price:

Introduction:

VULP 9118 D Special is a log-periodic antenna manufactured by Schwarzbeck (Germany) and distributed by EUTTEST (Shenzhen). The antenna is available from 80MHz to 1800MHz, and the specially customized special log-periodic antenna is capable of inputting up to 1kW of power over the full frequency range, which allows EMC testers to use the antenna for immunity testing of DUTs with high radiated field strengths.

The Special version has the same gain as the VULP 9118 D. The difference is that the Special version collapses the longest antenna oscillator at the rear end, which prevents the antenna from being too long and touching the darkroom ground plane when switching antenna polarization.

Technical parameters:

<<<<提醒:左右滑动表格>>>>
Model numberVULP 9118 D Special
manufacturerSchwarzbeck
agentShenzhen EUTTEST
Frequency range.90MHz-1500MHz
Expandable Frequency Test80MHz-1800MHz
gain6.5dBi
radiance factor4-27dB/m
impedance50 Ω
Maximum input power1kW
Maximum oscillator width LE1400mm
Antenna length LT1590mm
connectorN mother
weight3.2 kg
Option-Antenna AdapterKG 9201

AM9144

Field Intensity MonitorVUFM 1670
display unitVUFM 1671
<<<<提醒:左右滑动表格>>>>

Graph of related technical parameters:

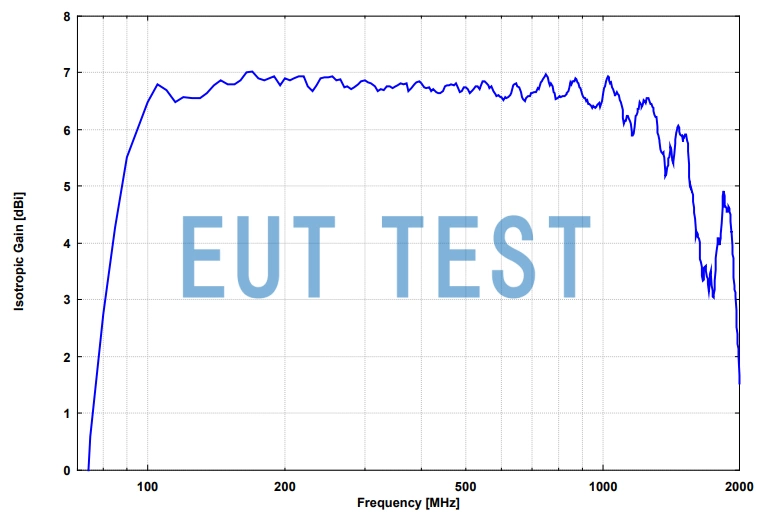

Isotropic gain graph for VULP 9118 D special

Isotropic Gain Curve

There is more about antennas with folded antenna oscillators:

VULP 9118 D special (this page)

VULP 9118 E special

VULP 9118 G special
