Introduction:

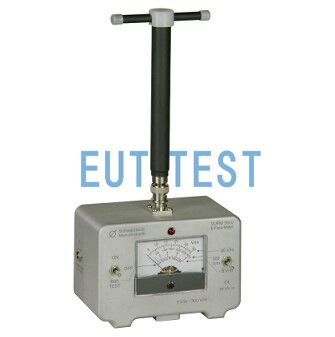

VUFM 1670 is an electric field strength meter produced by Schwarzebck, Germany, authorized by Shenzhen EUTTEST agent sales and quotation service, which is a small, lightweight, low-priced, non-frequency-selective electric field strength meter, can be used to measure higher field strengths, for example, monitoring the TEM cell It can also be used as a field strength probe according to IEC61000-4-3, to monitor the working area of a DUT and check the ambient electric field strength, or to quickly locate electromagnetic field leaks in production facilities.
Annex:
This device can be used withLCD display unit VUFM 1671 In combination, the signals are linked by means of a plastic optical fiber, which is connected to the right side of the housing of the device. In addition, there is a GPIB-interface readable digital display unit accessory VUFM 1672, which allows the establishment of a computer-controlled bandwidth radiation immunity system, and the connection between this device and the GPIB unit VUFM 1672 is also made using optical fibers.
Technical parameters:
<<<<提醒:左右滑动表格>>>>Model number | VUFM 1670 |
Device name | Electric field field strength meter, electric field strength meter |
manufacturer | Schwarzbeck |
agent | Shenzhen EUTTEST |
Field Strength Measurement Range | 1V/m to 300V/m |
Field strength blocking switch | third gear 1 V/m - 5 V/m 5 V/m - 30 V/m 50 V/m - 300 V/m |
Field Strength Measurement Linearity | ±1.5dB |
Test Frequency | 70kHz - 1GHz |
Maximum measurement frequency range | 9kHz-3GHz |
Power supply method | battery powered |
size | 120 mm * 80 mm * 110 mm |
weight | 890 grams |
connector | BNC |
