VTSD 9561F Schwarzbeck 10dB Pulse Limiter

Model: VTSD 9561F
Brand: Schwarzbeck

Min. order: 1 unit
Stock: 0
Delivery: 1-16 weeks

Standards: /
Industry: /

Warranty: Original Import ; New Products ; Authorized Sales
Training: On-site training; Telephone; Email
Logistics: Shenzhen to National
Payment: Online banking

Product Price:

Introduction:

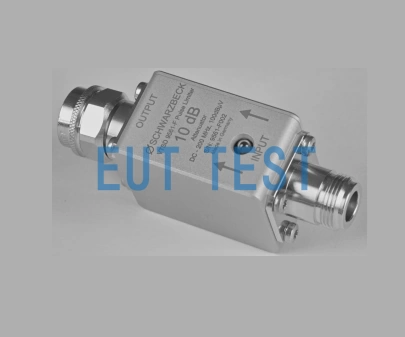

The VTSD 9561F is a 10 dB pulse limiter manufactured by Schwarzbeck, Germany and authorized for sale by EUTTEST in Shenzhen, China. The limiter has a built-in 10 dB high power attenuator and a fuse lamp to protect sensitive measurement equipment EMI receivers during measurements in the high energy spectrum.

Optional 20dB pulse limiter if required:VTSD 9561D

VTSD 9561F Pulse Limiter Principle of Operation:

When testing for EMI radiated interference, if there are very high RF signals coming in at the input of the pulse limiter, they will be cut down by the limiter in the time domain, and the excess energy will be converted to light in the built-in small bulb. Cutting the signal in the time domain means - after the Fourier transform - that additional spectral lines (intermodulation) appear in the frequency domain. In this case, the receiver input is successfully protected, but this measurement must be rejected as invalid. If it is still necessary to test this large signal, additional fixed attenuators must be added to the limiter input connector ports to reduce the signal, and then ensure that the lamp of the VTSD9561F does not light up before continuing the test.

Testing Guidelines:

The 9561F Pulse Limiter protects the EMI receiver input from high-energy interference levels in excess of 100 dBμV, while lower-energy DUT signals can be output with a fixed attenuation of 10 dB, thus protecting the receiver and measuring the signal to be tested.

WARNING: The input connector of the VTSD 9561 F Pulse Limiter must be connected to a source of interference (e.g. LISN) and the output connector must be connected to the meter that needs to be protected, i.e. it distinguishes between inputs and outputs, and if the wrong reverse application is used you will lose the warranty power of this product.

Technical parameters:

<<<<提醒:左右滑动表格>>>>
manufacturerschwarzbeck, Germany
agentShenzhen EUTTEST
Product modelVTSD 9561F
Product namePulse limiter
Available frequencyDC- 200 MHz
Maximum protection output< 100 dBµV
impedance50 Ω
insertion loss10 dB +/- 0.5 dB
frequency response<+/- 0.5 dB
Input ConnectorBNC or N
output connectorBNC or N
fuse lightOsram 2306
height28 mm
high degree36 mm
lengths88 mm
weight150 g
<<<<提醒:左右滑动表格>>>>

Graph of related technical parameters:

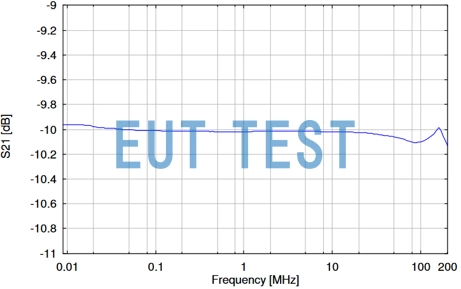

The following S21 graph data must be added to the receiver's internal compensation test data, and we will provide an excel data sheet along with the shipment.

S21 Curve Diagram for VTSD 9561F

S21 Curve Diagram
