Introduction：

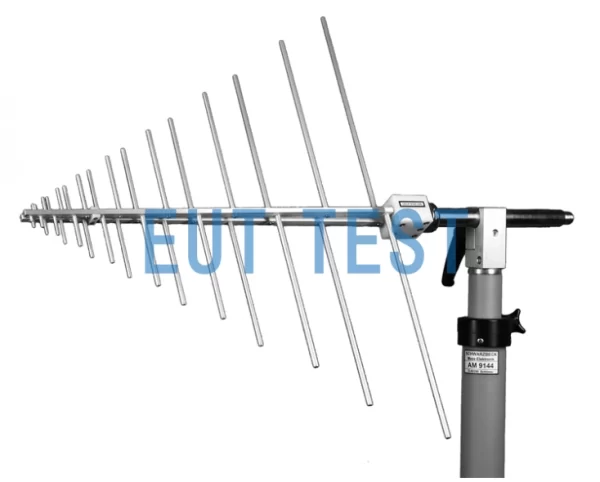

USLP 9143 is a logarithmic periodic antenna developed and manufactured by Schwarzbeck, Germany, and authorized to be sold by EUTTEST in Shenzhen, China. The antenna's transverse size is only 550m, but the test frequency range can be applied up to 8GHz, and it can be used in most of the EMC test standards and test applications, such as the CISPR25 and other standards.
The antenna's VSWR is <2 over the test bandwidth, reducing the reflection of the log-periodic antenna from the transmitter port, and you only need to purchase the RF cables supplied by EUTTEST together for low-loss radiated emissions and radiated immunity testing.
Installation method:
The antenna can be mounted on the AM9144 antenna tripod using the antenna adapter as shown in the dimensions below.

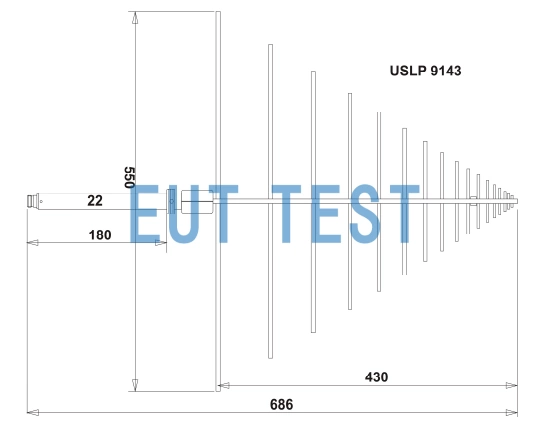

Installation Dimension Drawing
Then enter the power or antenna coefficients in the EMC test software, and then you can start the test. Our company will provide the integration service for the purchasing customer to install the logarithmic cycle antenna test system at home.
Differences and similarities between antennas 9143B and 9143:
The following table is a comparison table of the parameters of two similar antenna models, please select the appropriate antenna for EMC test according to the test requirements.
<<<<提醒：左右滑动表格>>>>| USLP 9143B | USLP 9143 | |
| having the same name | Logarithmic periodic antenna | Logarithmic periodic antenna |
| Tests use the same | radiant emission | radiant emission |
| Test radiated immunity by injecting 200W of power | Test radiated immunity by injecting 200W of power | |
| Different test frequencies | 180MHz-8GHz | 250MHz-8GHz |
| Different antenna oscillator lengths | 0.78 m (wider) | 0.55 m |
| The 3dB flap width varies | 45°-65° | 30°-80° (wider) |
Technical parameters：
<<<<提醒：左右滑动表格>>>>| Model number | USLP 9143 |
| producers | Schwarzbeck |
| agent | Euttest.com |
| Test frequency range | 250MHz-8GHz (including 300MHz-7GHz) |
| radiance factor | 14-43dB/m The antenna coefficients at each frequency point are plotted in Fig. 1 |
| gain | 5.8dBi±1.3dB |
| Output impedance | 50Ω |
| standing wave ratio (physics) | <1.5 |
| 3dB Wave width - electric field | 30-80 degrees |
| 3dB Flap Width - Magnetic Field | 60-140 degrees |
| Maximum input power | 200W (below 500MHz) 80W (below 5GHz) 50W (below 7GHz) Detailed maximum input power corresponding to each frequency point is shown in Fig. 3 |
| size | 550*430*50mm |
| Antenna Adapter | AA9209, AA9202 AM9144 schwarzbeck |
| weight | 1.1kg |
Graph of related technical parameters：
Figure 1: Graph of antenna coefficients at each frequency point
