Introduction：
The UHA 9105 is a 1000MHz - UHF - half-wave dipole antenna manufactured by Schwarzbeck, Germany, and is authorized to be represented by EUTTEST Shenzhen for sales and quotation services. The tuned half-wave dipole antenna UHA 9105 contains a pair of variable-length dipole antenna elements with a total tubing length of 120 mm without the telescoping elements, and can be used with the AM 9144 Antenna bracket for fixed antenna testing. When using telescopic elements, the total length ranges from 173 mm to 520 mm. Due to the larger diameter/length, the bandwidth is usually higher, especially above 800 MHz.
Technical parameters：
<<<<提醒：左右滑动表格>>>>| Antenna Model | UHA 9105 |
| manufacturer | Schwarzbeck |
| agent | Shenzhen EUTTEST |
| Test Frequency | 300MHz-1000MHz |
| Number of dipole elements | 2 |
| Dipole antenna width | 120 mm to 520 mm adjustable |
| baron decay (physics) | 0.4dB to 61.5dB |
| radiance factor | 18 dB/m to 31 dB/m |
| Antenna Gain | +1.8dBi |
| Maximum input power | 10W |
| Electric field half-beamwidth | 78° |
| weight | 0.8 kg |
| connector | N |
Graph of related technical parameters：

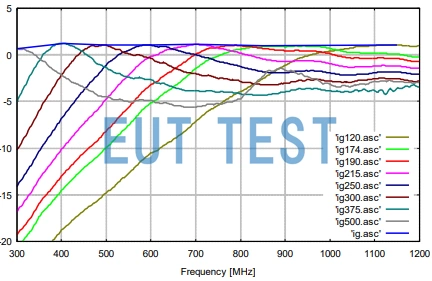

Antenna Gain Graph
