Introduction：
UBA 9117 is a biconical VHF-UHF broadband antenna authorized by Schwarzbeck of Germany to be distributed by EUTTEST in Shenzhen, China. This antenna has flat gain characteristics in the frequency range of 150-1000 MHz, and the antenna directional pattern is circular in the plane of the magnetic field, and "8" shaped in the plane of the electric field. " shape, similar to a dipole pattern. ThisBiconical antennaA typical application is the quick and easy evaluation of actual EMC lab site attenuation for broadband testing.
Technical parameters：
<<<<提醒：左右滑动表格>>>> | Antenna Model | UBA 9117 |
| manufacturer | Schwarzbeck |
| Test frequency range | 150MHz-1GHz |
| Available Test Frequency Range | 30MHz-1000MHz |
| impedance | 50Ω |
| connector | N mother |
| Palombia | 1:1 |
| VSWR | >2 |
| size | 550mm*440mm |
| Antenna Coefficient Range | 15 dB/m to 35 dB/m |
| Maximum input power | 5W |
| weight | 830 grams |
Graph of related technical parameters：

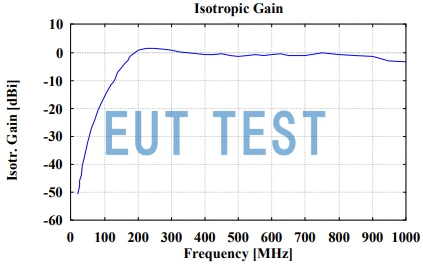

Plot of antenna gain data
