TSA Antenna Conforms to ISO 11542-9 and Toyota TSC 7006G

Model: TSA Antennas
Brand: Schwarzbeck

Min. order: 1 unit
Stock: 0
Delivery: 1-16 weeks

Standards: /
Industry: /

Warranty: Original Import ; New Products ; Authorized Sales
Training: On-site training; Telephone; Email
Logistics: Shenzhen to National
Payment: Online banking

Product Price:

Product Description:

TSA antenna manufactured by German schwarzbeck company, TSA antenna is a set of tuned half-wave dipole sleeve antenna, specializing in automotive electronic parts testing antenna, within the line of 12 different test frequency antenna models, as shown in the table below:

<<<<提醒:左右滑动表格>>>>
Different TSA antenna modelsTest FrequencySuggested Test Criteria
TSA385385MHzSO 11452-9
TSA400400MHzISO 11452-9
TSA415415MHzISO 11452-9
TSA430430MHzToyota TSC 7006G

ISO 11452-9

TSA455455MHzISO 11452-9
TSA835835MHzToyota TSC 7006G
TSA880880MHzISO 11452-9
TSA900900MHzToyota TSC 7006G
TSA12701270MHzToyota TSC 7006G
TSA14401440MHzToyota TSC 7006G
TSA17501750MHzISO 11452-9
TSA19501950MHzToyota TSC 7006G
<<<<提醒:左右滑动表格>>>>

All TSA antennas have their axis aligned with the straight extension of the coaxial cable and are manufactured using ferrite to suppress sheath currents and increase usable bandwidth and repeatability.The primary application for TSA antennas is immunity testing of handheld transmitters in the VHF/UHF ranges in the automotive industry according to ISO 11542-9 and manufacturer-specific standards such as Toyota TSC 7006G.

Technical parameters:

<<<<提醒:左右滑动表格>>>>
Antenna ModelTSA Antennas
manufacturerSchwarzberk, Germany
agentShenzhen EUTTEST
Total Test Frequency Range385MHz-2GHz

(See table above for details of test frequencies for each antenna)

Test Impedance50Ω
connectorN mother
Maximum input power50W
Continuous Input Power20W
sizeLength: 365 mm - 640 mm

Diameter: 25 mm

weight300g-500g
<<<<提醒:左右滑动表格>>>>

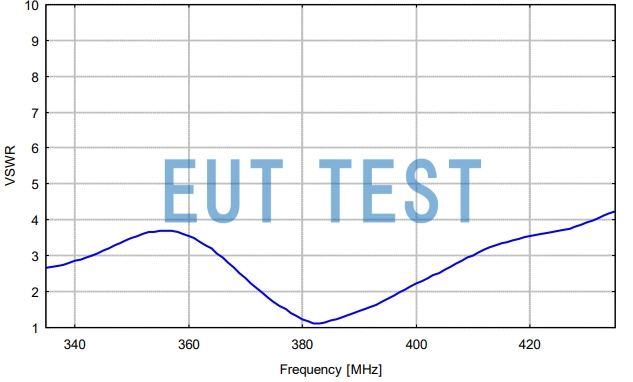

Voltage VSWR graph for TSA430 antenna in TSA antenna kit

Voltage VSWR graph for TSA430 antenna in TSA antenna kit

All antennas in the TSA package are supplied with VSWR graphs, gain graphs, and antenna coefficient graphs, contact our sales for more information.
