Introduction：
TK 9261 is an active high-resistance voltage probe produced by Schwarzbeck in Germany and authorized to be sold by Shenzhen EUTTEST. It is officially standard with a 50mA power adapter to power it. The built-in impedance converter can be used with 50Ω measuring devices (such as spectrum and network analyzer or EMI test receiver). Can be used in high-frequency applications, the measurable frequency range is 0.1-100 MHz, and meets the requirements of RENAULT 36-00-808 automotive standard. Using a shorter radio frequency banana head to ground, measurements up to 700 MHz can be performed.
Technical parameters：
<<<<提醒：左右滑动表格>>>>| Model number | TK 9261 |
| Device name | Active high resistance voltage probe |
| manufacturer | Schwarzbeck |
| agent | Euttest provides quotation and after-sales service |
| Frequency range | 100kHz-100MHz |
| Available frequency range | 50kHz-700MHz |
| Input damping resistance | >100 kΩ |
| Input capacitance | 1.8 pF |
| Output impedance | 50 Ω |
| gain | 0dB |
| Maximum output level | 1.4V peak |
| RF connector | N |
| Maximum input DC voltage | 500V |
| Maximum input AC voltage | 10 Vp-p |
| Power supply | +12-15V，50mA |
| DC connector | 5.5mm/2.5mm |
| Operating temperature | -10°~+60° |
| weight | 300g |
| Meet the standard | RENAULT 36-00-808 |

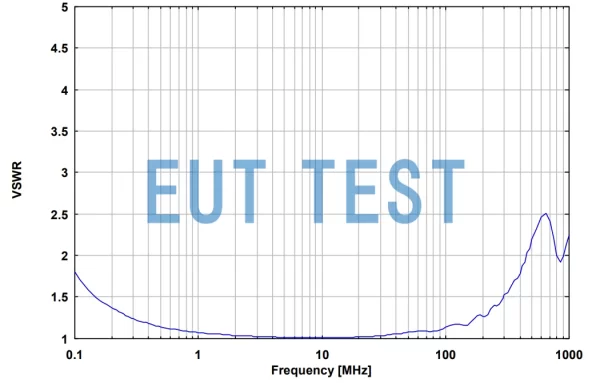

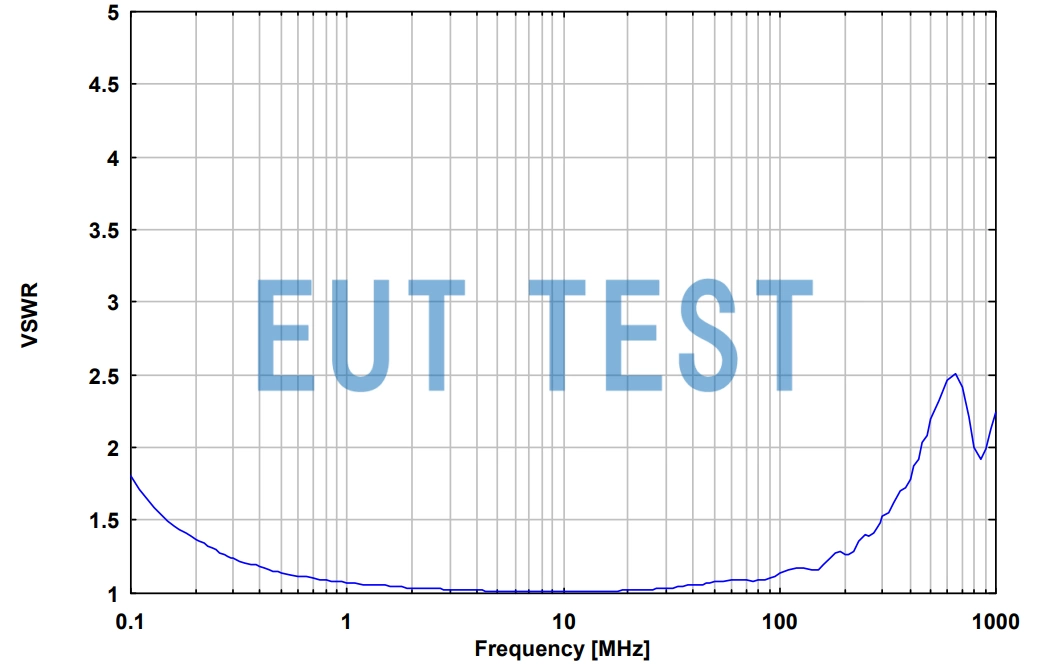

Voltage standing wave ratio VSWR

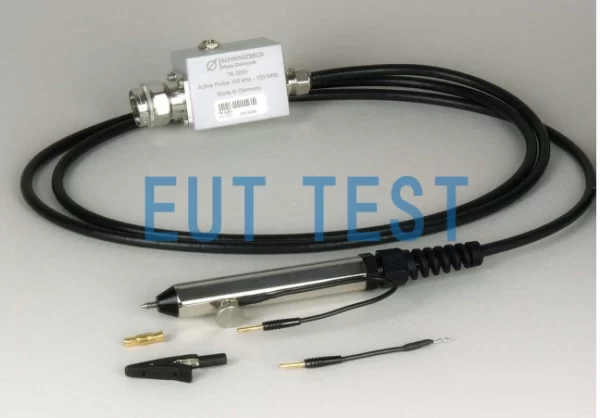

Shipping list：
•Crocodile clip crocodile clip 2 mm
•Ground cable ground wire 60 mm
•Ground cable ground wire 140 mm
•Power supply 12 V DC power supply
•Measuring tip 4 mm test head
Learn more about the introduction and product recommendations of voltage probes：Principle and selection of voltage probe
