TEMZ 5234 Schwarzbeck Crawford TEM-CELL

Name: TEMZ 5234
Brand: Schwarzbeck
SKU: temz-5234
Price: 1688 CNY
Availability: PreOrder
Rating: 4.8 (15 reviews)

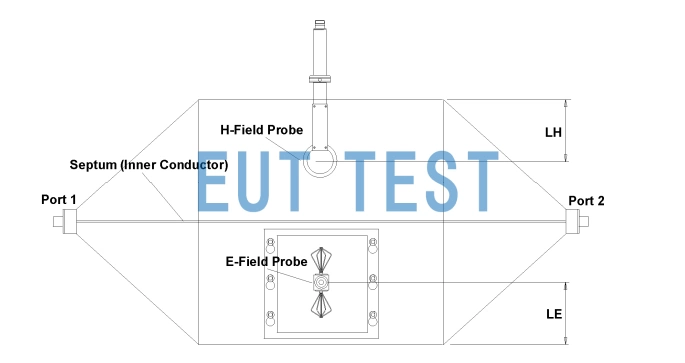

Testing E-field and H-field Probes with the TEMZ 5234

Model: TEMZ 5234

Type: TEM-cell Transverse Electromagnetic Wave Cell, Ribbon line

Brand: Schwarzbeck

Min. order: 1 unit

Stock: 0

Delivery: 1-16 weeks

Standards:

ISO 11452-3

Industry： /

Warranty: Original Import ; New Products ; Authorized Sales

Training: On-site training; Telephone; Email

Logistics: Shenzhen to National

Payment: Online banking

Product Price:

Introduction：

TEMZ 5234 is a strip line product manufactured by Schwarzbeck, Germany, which can test frequencies up to 1200MHz. It meets the requirements of ISO 11452-3, IEEE 1309 and EN 61000-4-20. The equipment is distributed by our company for sales and after-sales service. Asymmetric 50Ω stripline (also known as Crawford-TEM-Cell or Transverse Electromagnetic Chamber) for E- and H-field probe calibration and component immunity testing.

Test E-field and H-field probes

Technical parameters：

<<<<提醒：左右滑动表格>>>>

Model number	TEMA 5234
Device name	Ribbon line Crawford Transverse Electromagnetic Wave Cell (Crawford TEM-CELL)
manufacturer	Schwarzbeck
agent	Euttest
frequency of use	DC-840MHz DC-1200MHz can be used
Diaphragm height	100mm
aperture	80*75mm
impedance	50Ω
standing wave ratio (physics)	<1.05
Maximum input power	200W
Maximum field strength	1000V/m
size	232450230mm
weight	2kg

<<<<提醒：左右滑动表格>>>>

Related Technical Charts Contact us for more information.

If you need larger height of TEM diaphragm, please purchase TEMZ 5233, but the test frequency of 5233 is not as high as that of 5234, so please choose the appropriate test equipment according to the test requirements.
