Introduction：
TEMZ 5232 is a 90Ω strip line test equipment for automotive electronic parts testing produced by Schwarzbeck, Germany and authorized to be sold by Shenzhen EUTTEST agent, which can be used for immunity testing of ISO11452-5 standard appendix A.2.
The open and asymmetrical ribbon cable is used with a 90 Ω terminating resistor mounted on an aluminum plate rated at 60 W, which is sufficient to provide an output field strength of up to 500 V/m. A high potential RF voltmeter and voltage divider can be used to measure the battery voltage at the BNC connector. By multiplying the voltage reading by a factor of 6.67 (adding 16.5 dB), the magnetic field inside the device can be obtained. The field strength increases in the vicinity of the terminating resistor, so a minimum distance of 30 cm should be ensured between the EUT and the terminating resistor.
If you need to purchase the 50Ω ribbon wire required by ISO11452-5, please purchase it:TEMZ 5231 The
Technical parameters：
<<<<提醒：左右滑动表格>>>>| Model number | TEMZ 5232 |
| manufacturer | Schwarzbeck |
| agent | Euttest |
| Device name | Automotive Electronics 90Ω Ribbon Cable |
| Meets the requirements of the test standard | ISO 11452-5 |
| material | aluminum |
| frequency | DC-220MHz |
| Available frequency | DC-1GHz |
| Nominal Impedance | 90Ω |
| SWR | 1.8 (f < 220 MHz) < 2.2 (f < 220 MHz) |
| Voltage Field Strength Conversion | 1 V = 6.67 V/m |
| Maximum input power | 60W |
| Maximum field strength | 500V/m |
| size | 300*150*2000mm |
| Width*Length*Thickness | 900*3500*200mm |
Curve diagrams of parameters related to technical parameters:

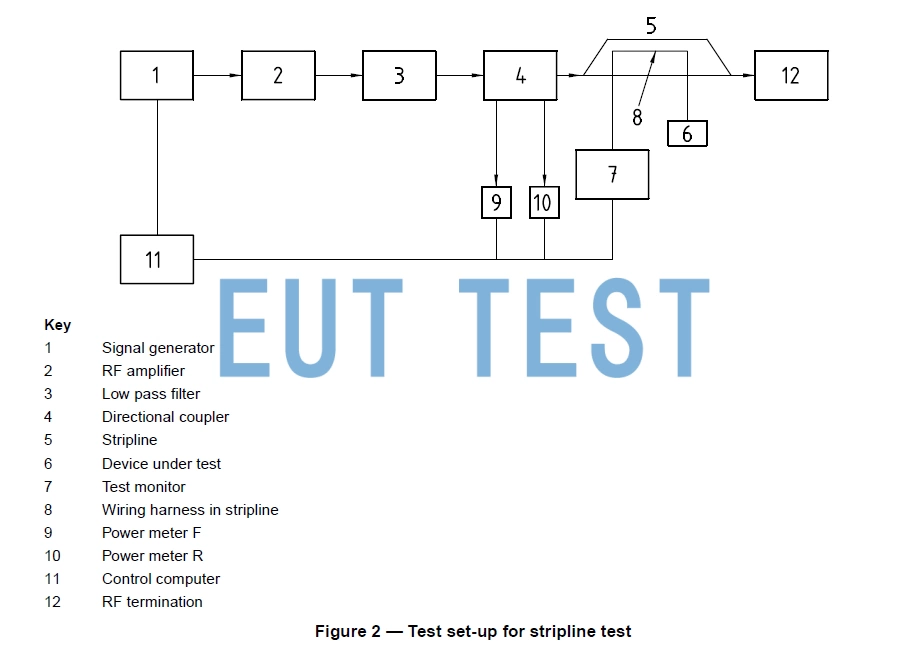

ISO 11452-5 Ribbon Line Test Configuration Chart
ISO 11452-5 strip line testing requires a strip line device and also an automotive electronics LISN, for details click on the link below or contact EUTTEST for more information on the device.
5μH Artificial Power Network

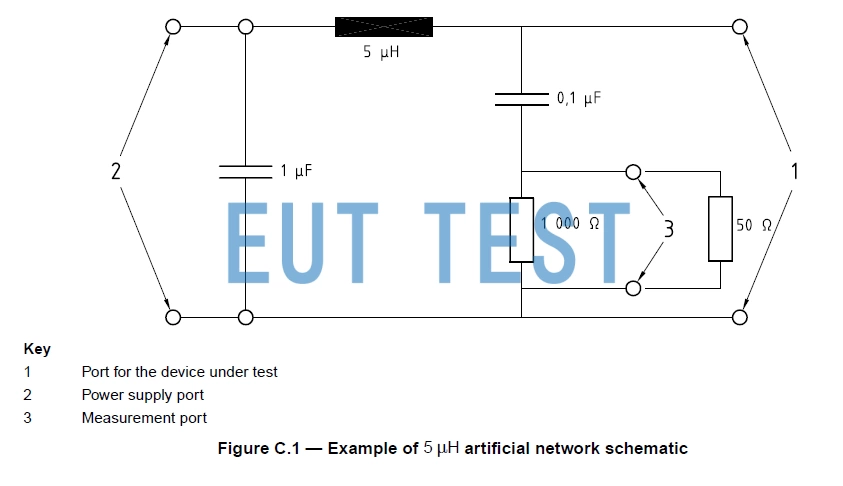

ISO 11452-5 Requirements for automotive electronic power supply network ANs

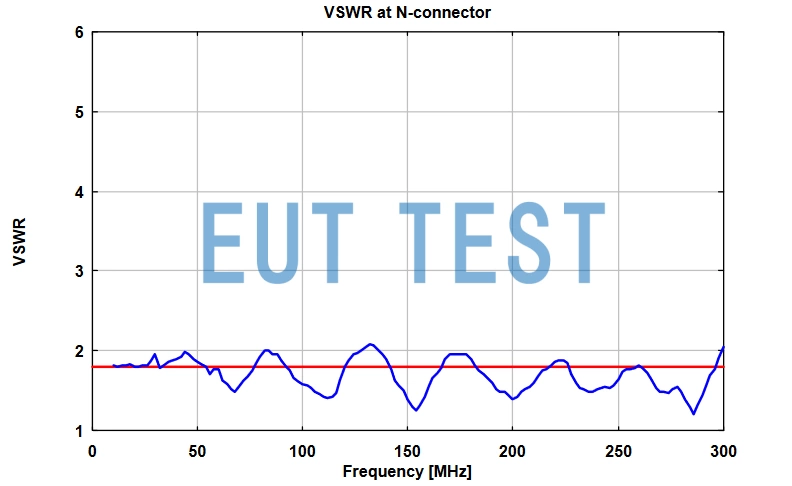

VSWR
