TEMH 6000 Schwarzbeck Wideband TEM Horn Antenna

Model: TEMH 6000
Brand: Schwarzbeck

Min. order: 1 unit
Stock: 0
Delivery: 1-16 weeks

Standards:
Industry: /

Warranty: Original Import ; New Products ; Authorized Sales
Training: On-site training; Telephone; Email
Logistics: Shenzhen to National
Payment: Online banking

Product Price:

Introduction:

TEMH 6000 is a product manufactured by Schwarzbeck and authorized by EUTTEST in Shenzhen, Germany. The antenna is mainly used for EMC testing of medical equipment according to IEC 61000-4-39 standard, which includes the generation of radiated fields in proximity immunity tests and UWB (Ultra Wide Band) measurements.

Technical parameters:

<<<<提醒:左右滑动表格>>>>
Product modelTEMH 6000
manufacturerSchwarzbeck Germany

EUTTEST Agent

nominal frequency380MHz-6GHz
Available frequency300MHz-8GHz
SWR<2
Isotropic gain2...10 dB
radiance factor20-38 Db/m
polarizebiometrics
orientationsdirectional
materialaluminum
Maximum input power300W
connectorN
impedance50Ω
sizeLength 300 (500) mm

Width 260mm

Height 210mm

weight1.4kg
Mounting Dimensions22mm tube

Can be tested with a tripod AM 9144

Optional accessoriesSpacer 100

10cm spacer in accordance with IEC 61000-4-39

<<<<提醒:左右滑动表格>>>>

Output field strength magnitude:

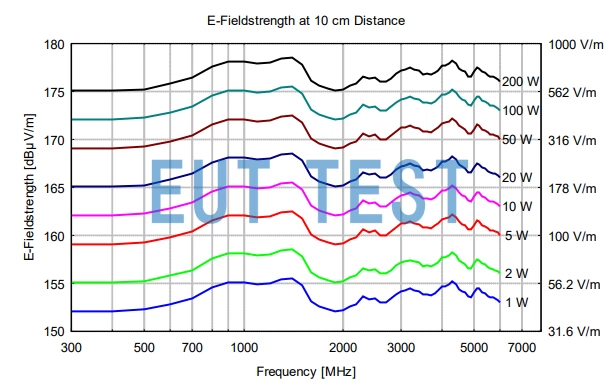

Please read the output electric field strength curves of this antenna for different power inputs according to the figure below, and then configure a suitable power amplifier to increase the RF power input at the front of the antenna.

Input power versus output field strength for TEMH 6000

Plot of input power vs. output electric field strength

Relevant optional accessories:

According to IEC 61000-4-39 test requirements, the radiating antenna should be spaced 10cm from the surface of the object under test, so the following accessories should be purchased together with the test.

Spacer 100: 10 cm spacer according to IEC 61000-4-39

Spacer 100: 10 cm spacer according to IEC 61000-4-39



Technical data of the Spacer 100:

<<<<提醒:左右滑动表格>>>>
Accessory ModelSpacer 100
thicknesses100±2mm
frequency380MHz-6GHz
Meet the standardIEC 61000-4-39
size300*250*110mm
weight160g
<<<<提醒:左右滑动表格>>>>
