STLP 9149 Schwarzbeck Stacked Microwave Log Periodic Antenna

Name: STLP 9149
Brand: Schwarzbeck
SKU: stlp-9149
Price: 2216 CNY
Availability: PreOrder
Rating: 4.8 (15 reviews)

Model: STLP 9149

Type: Logarithmic periodic antenna

Brand: Schwarzbeck

Min. order: 1 unit

Stock: 0

Delivery: 1-16 weeks

Standards:

IEC 61000-4-3

Industry： /

Warranty: Original Import ; New Products ; Authorized Sales

Training: On-site training; Telephone; Email

Logistics: Shenzhen to National

Payment: Online banking

Product Price:

Introduction：

STLP 9149 is a stacked microwave log-periodic antenna manufactured by SCHWARZBECK factory in Germany and authorized to be sold by EUTTEST in Shenzhen, China. The test frequency covers a wide band from 600MHz to 10.5GHz, and the antenna can be used by EMC labs to perform RX or TX tests in the specified frequency range. The antenna is made of laser cut brass, and we protect the antenna structure with a low-loss plastic shell around the antenna periphery. The antenna is ideally suited for radiated immunity testing to IEC 61000-4-3.

Features:

Good field uniformity
Wideband frequency range
Constant high gain
Very good impedance matching
Equal beamwidths in the E-plane and H-plane

Technical parameters：

<<<<提醒：左右滑动表格>>>>

Product model	STLP 9149
manufacturer	Schwarzbeck, Germany
Authorized Agents	EUTTEST
nominal frequency	0.7GHz-9GHz
Available frequency	0.6GHz-10.5GHz
antennae direction	directional
Antenna Gain	10.3 dBi±1.5 dBi
Maximum input power	300 W (f=1 GHz) = 54.77 dBm 150 W (f=6 GHz) = 51.76 dBm
connector	N 50Ω
size	460 (+215) x 270 x 270 mm
weight	3.7kg

<<<<提醒：左右滑动表格>>>>

Graph of related technical parameters：

Antenna Gain Graph

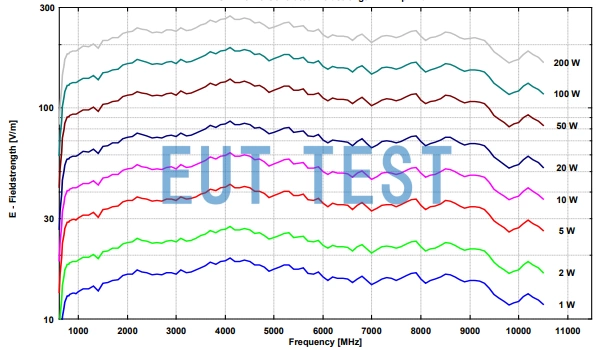

Plot of input power versus electric field strength
