Introduction：
The STLP 9129 is a stacked log-periodic antenna manufactured by Schwarzbeck, Germany and authorized for sale by EUTTEST in Shenzhen, China. The main application of this antenna is the generation of high electric field strengths as defined for radiated immunity testing according to IEC 61000-4-3. Designed for broadband immunity testing, the 9129 antenna is capable of covering the entire frequency range from 70 MHz to 10 GHz. This unparalleled bandwidth is achieved by combining two proven antenna designs, the STLP 9128 D and the STLP 9149.
Technical parameters：
| Product model | STLP 9129 |
| factory owners | SCHWARZBECK, Germany |
| Authorized Agents | EUTTEST |
| Available frequency | 70MHz-10GHz |
| polarize | biometrics |
| antennae direction | directional |
| material | aluminum |
| homogeneous gain (math.) | 8.6 dBi ± 2.3 dB |
| impedance | 50Ω |
| connector | N or 7/16 |
| impedance | Rated 50Ω |
| Voltage Standing Wave Ratio VSWR | <2 |
| size | 1.69 x 1.64 x 2.02 m |
| weight | 10.2kg |
Graph of related technical parameters：

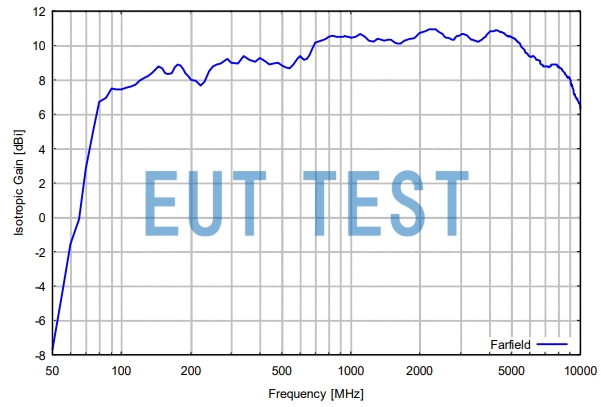

Antenna Gain Graph

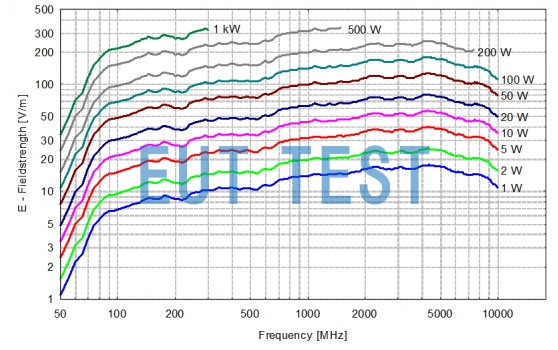

Input power vs. output field strength curve
Contact us for data on other test distances.
