Introduction：
STLP 9129 special is a stacked log-periodic antenna manufactured by Schwarzbeck, Germany and authorized to be sold by EUTTEST in Shenzhen, China. The 9129 special is a smaller version of the STLP 9129, with a frequency range of 80MHz-10GHz, and a high anisotropic gain of up to 8.1dB, which allows the antenna to be used for radiated immunity testing. The antenna is configured with the last few quickly removable antenna elements for testing in the lower frequency range of 80MHz-180MHz. The height of the antenna after removal of the elements becomes smaller, allowing the use of the antenna for testing in small dark rooms where space is not available. Of course, the disassembled antenna can no longer be used for testing in the 80MHz-180MHz frequency band.
Technical parameters：
<<<<提醒：左右滑动表格>>>>| Product model | STLP 9129 special |
| manufacturer | schwarzbeck, Germany |
| agent | Shenzhen EUTTEST |
| Test Frequency | 80MHz-10GHz |
| polarize | biometrics |
| orientations | directional |
| isotropic gain | 8.1dB ±2.8dB |
| impedance | 50Ω |
| Maximum input continuous power | See input power graph below |
| size | 1.75 x 1.49 x 1.32 m |
| weight | 10.2kg |
| connector | N |
| option | Options to support rapid disassembly 7/16 Connector Adapter: AA 9209 |
Graph of related technical parameters：

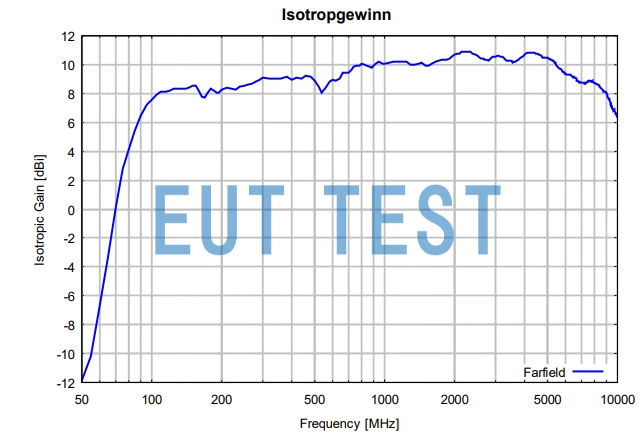

Isotropic Gain Curve

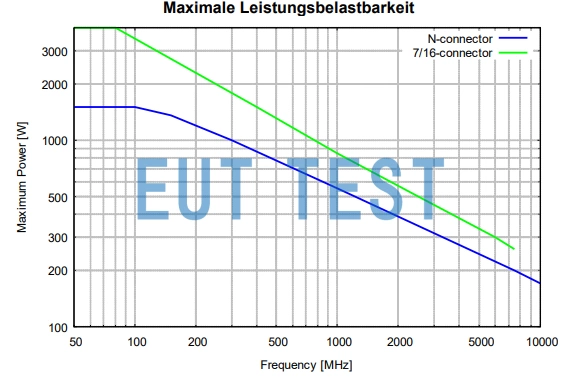

Maximum input power

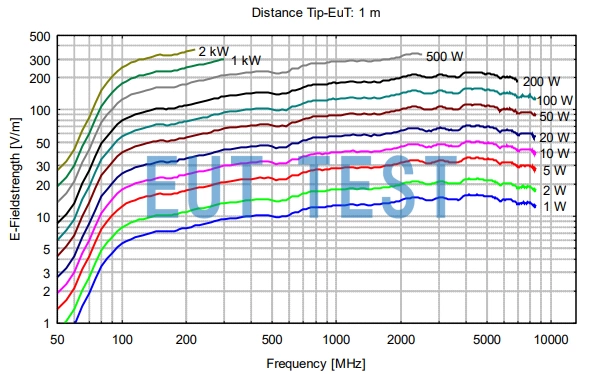

Plot of input power vs. electric field strength
Contact us for data on other test distances.
