STLP 9128 F Schwarzbeck Stacked Log Periodic Antenna

Model: STLP 9128 F
Brand: Schwarzbeck

Min. order: 1 unit
Stock: 0
Delivery: 1-16 weeks

Standards: /
Industry: /

Warranty: Original Import ; New Products ; Authorized Sales
Training: On-site training; Telephone; Email
Logistics: Shenzhen to National
Payment: Online banking

Product Price:

Introduction:

STLP 9128 F by the German Schwarzbeck in 2024 the latest production and authorized by the Shenzhen EUTTEST agent sales of stacked logarithmic cycle antenna, the antenna supports optional N or 7/16 two different connectors to complete the radiated emission RE and radiated immunity testing. The antenna calculates the test distance from the top of the antenna, and the 80% amplitude modulation requires 1.8 times the voltage input, which is 3.24 times higher power compared to continuous wave. In addition, the antenna has excellent cross-polarization rejection, and a quick-disassembly option allows EMC test engineers to remove some of the antenna's oscillator elements in seconds without the need for any other tools.

Technical parameters:

<<<<提醒:左右滑动表格>>>>
Product modelSTLP 9128 F
factory ownersSchwarzbeck, Germany
Authorized AgentsEUTTEST
Available frequencyMaximum frequency range: 55MHz-3000MHz

Typical: 70MHz-1500MHz

polarizebiometrics
antennae directiondirectional
materialaluminum
Maximum power (7/16)2kW continuous

3kW Intermittent

Maximum power (N)1kW continuous

1.5kW Intermittent

connectorN

7/16

impedanceRated 50Ω
size1950*2260*2540mm
weight11kg
optionOptions to support rapid disassembly

7/16 Connector

<<<<提醒:左右滑动表格>>>>

Graph of related technical parameters:

This antenna is designed for testing RS radiation sensitivity. For use, please refer to the following gain graph and electric field strength relationship graph.

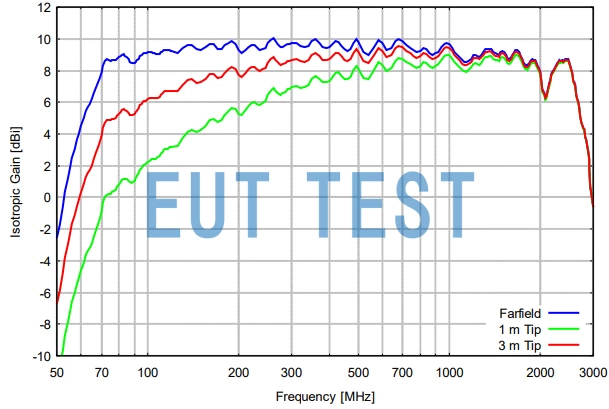

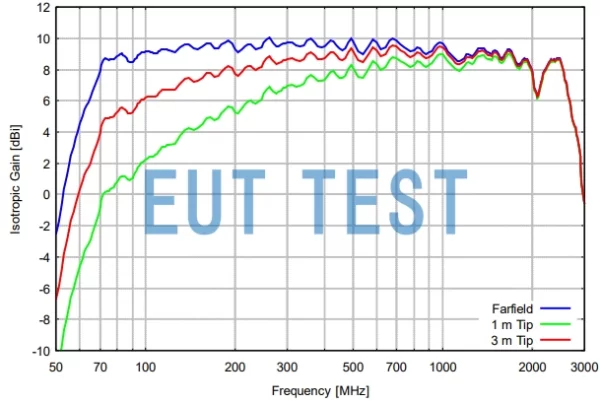

Gain Curve for STLP 9128 F

Gain Curve Diagram

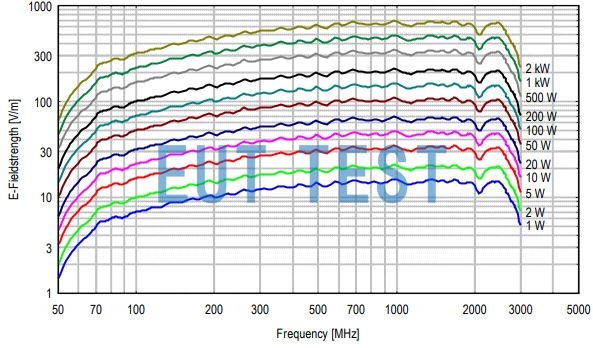

Plot of input power vs. electric field strength for STLP 9128 F

Plot of input power versus electric field strength

If you need to test other distances, please contact us for more data.
