Introduction：
STLP 9128 E is a high power stacked log-periodic antenna manufactured by Schwarzbeck, Germany and authorized for sale by EUTTEST in Shenzhen, China. The antenna adopts the design of stacking two log-periodic antennas, which gives it a flat gain curve and low VSWR characteristics. This antenna is specially designed for 80MHz-1.5GHz radiated immunity test, it can input 1kW RF power continuously, you can also configure 7/16 connector option to get higher input power, detailed power data check the technical data table below.
Technical parameters：
<<<<提醒：左右滑动表格>>>>| Product model | STLP 9128 E |
| Manufacturer and place of origin | Germany schwarzbeck |
| Domestic agents | Shenzhen EUTTEST |
| Test frequency range: | 80MHz-1.5GHz |
| Available frequency range: | 65MHz-3GHz |
| Polarization: | linear |
| Antenna Direction: | directional |
| Material: | aluminum |
| Maximum power (7/16): | 2 kW (constant) 3 kW (intermittent) |
| Maximum power (N): | 1 kW (constant) 1.5 kW (intermittent) |
| Joints: | 7/16 F |
| N F | |
| Impedance: | Rated at 50 ohms |
| Length: | 1660 mm |
| Width: | 2160 mm |
| high degree | 140 mm |
| Weight: | 10 kg |
| Installation: | Tubes 22 mm in diameter |
| option | Options to support rapid disassembly 7/16 Connector |
Graph of related technical parameters：

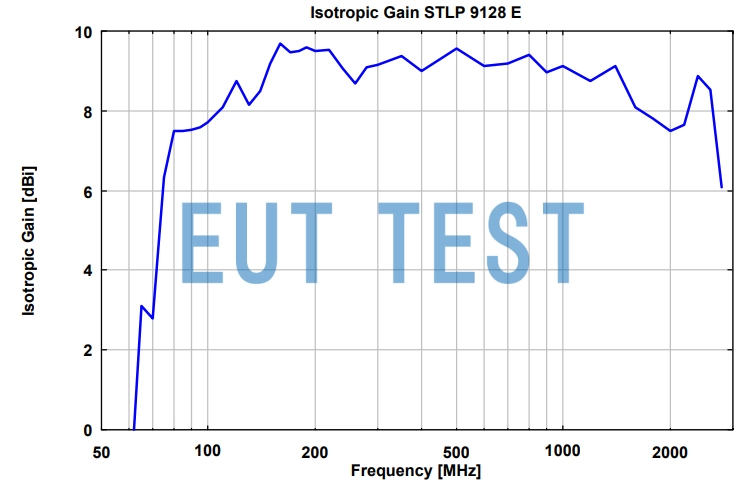

Antenna Gain Graph

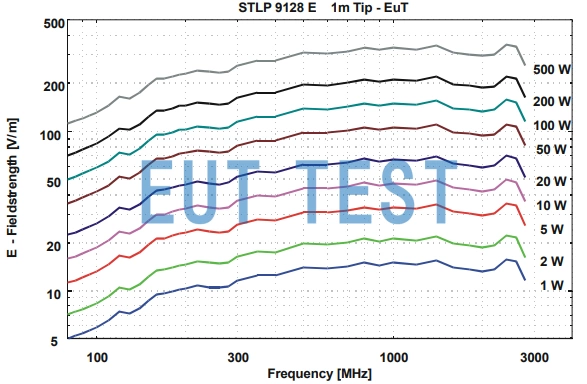

Plot of input power vs. electric field strength
If you need to test other distances, please contact us for more data.
