STLP 9128 E special Schwarzbeck Stacked Log Periodic Antenna

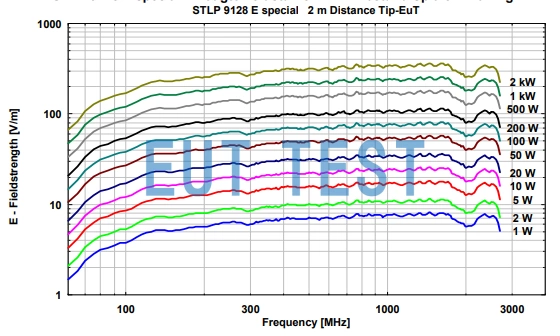

Input power versus electric field strength for STLP 9128 E special

Model: STLP 9128 E special

Type: Logarithmic periodic antenna

Brand: Schwarzbeck

Min. order: 1 unit

Stock: 0

Delivery: 1-16 weeks

Standards: /

Industry： /

Warranty: Original Import ; New Products ; Authorized Sales

Training: On-site training; Telephone; Email

Logistics: Shenzhen to National

Payment: Online banking

Product Price:

Introduction：

STLP 9128 E special is a stacked logarithmic periodic antenna produced by Schwarzbeck, Germany and authorized to be sold by Shenzhen EUTTEST agent, this antenna is the special version of STLP 9128E, the difference is that the special version adopts the design of 1.5m width, which is much smaller than the width of 2160mm of STLP 9128E, and the special version is wider test frequency range. This antenna is a special version of the STLP 9128E, the difference is that the special version is designed with a width of 1.5m, much smaller than the 2160mm width of the STLP 9128E.

Technical parameters：

<<<<提醒：左右滑动表格>>>>

Product model	STLP 9128 E special
Manufacturer and place of origin	Germany schwarzbeck
Domestic agents	Shenzhen EUTTEST
Frequency range:	80MHz - 1700MHz
Available frequency range:	80MHz - 2700MHz
Polarization:	linear
Antenna Direction:	directional
Material:	aluminum
Maximum power (7/16 option):	2 kW (constant) 3 kW (intermittent)
Maximum power (N):	1 kW (constant) 1.5 kW (intermittent)
Joints:	7/16 F option
Joints:	N F
Impedance:	Rated at 50 ohms
Length:	1500 mm
Width:	1740 mm
high degree	1400 mm
Weight:	10 kg
Installation:	Tubes 22 mm in diameter
option	Options to support rapid disassembly 7/16 Connector

<<<<提醒：左右滑动表格>>>>

Graph of related technical parameters：

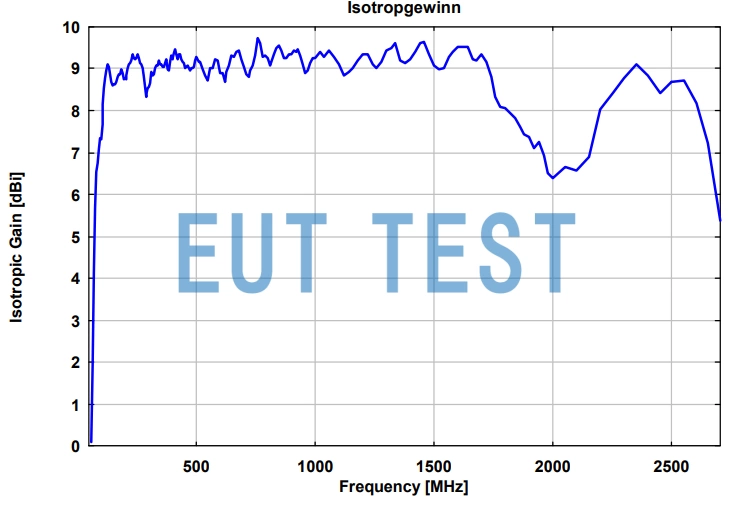

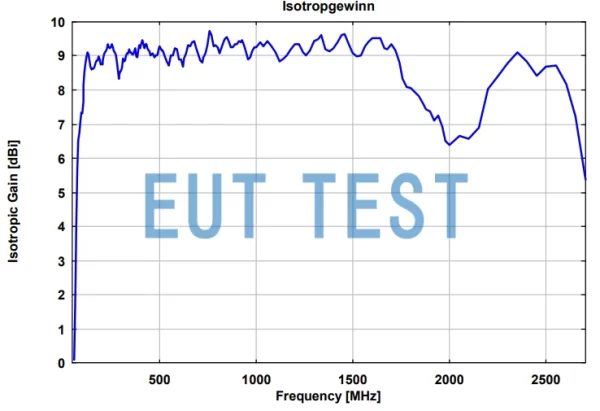

Antenna Gain Graph

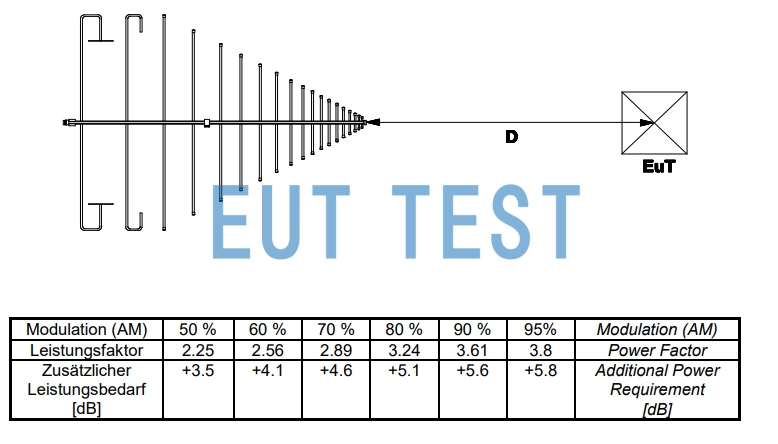

Relationship between modulation power requirement and test distance

STLP 9128 E special

If you need to test other distances, please contact us for more data.
