STLP 100-500 Schwarzbeck High Power Log Periodic Antenna

Name: STLP 100-500
Brand: Schwarzbeck
SKU: stlp-100-500
Price: 1084 CNY
Availability: PreOrder
Rating: 4.8 (15 reviews)

Model: STLP 100-500

Type: Logarithmic periodic antenna

Brand: Schwarzbeck

Min. order: 1 unit

Stock: 0

Delivery: 1-16 weeks

Standards: /

Industry： /

Warranty: Original Import ; New Products ; Authorized Sales

Training: On-site training; Telephone; Email

Logistics: Shenzhen to National

Payment: Online banking

Product Price:

Introduction：

STLP 100-500 is a high power log-periodic antenna produced by SCHWARZBECK of Germany and authorized to be sold by EUTTEST agent in Shenzhen, China. This antenna can support continuous wave input power of 5kW to become the highest input power of all log-periodic antennas in the special products, and it also maintains the previous log-periodic antennas with high gain and low VSWR characteristics. At a test distance of 1m, only 200W input power is needed to achieve an electric field strength of 100V/m.

This is a very large product, to order please contact EUTTEST to confirm the shipping method.

2024 Note: This antenna may have been discontinued.

Technical parameters：

<<<<提醒：左右滑动表格>>>>

Product model	STLP 100-500
manufacturer	Schwarzbeck
agent	EUTTEST
Available frequency range	75MHz-550MHz
Nominal frequency range	100MHz-500MHz
standing wave ratio (physics)	<1.5dB
Antenna Gain	11.5±1.1dBi

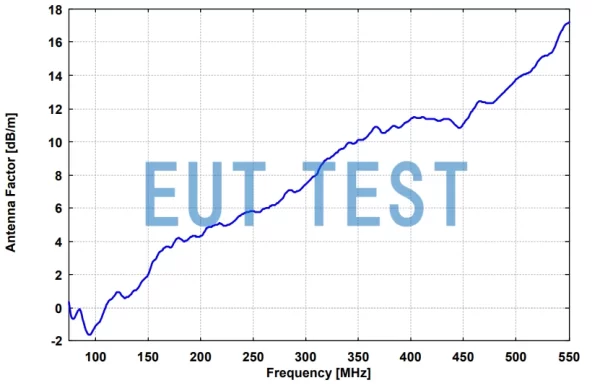

radiance factor	1-14dB/m
3 dB flap width E-field and H-field	53°
Maximum input power	5kW continuous
connector	N Type 13/30 Connector
size	1.66 x 1.78 x 4.02 m
weight	52kg

<<<<提醒：左右滑动表格>>>>

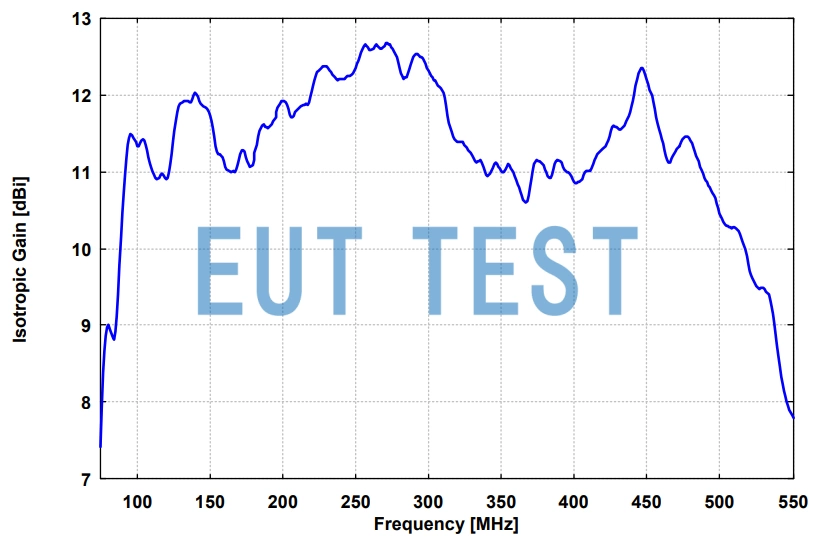

Antenna Gain Graph

Plot of generated electric field strength versus input power
