SGA 2450 Schwarzbeck Standard Gain Antenna

Model: SGA 2450
Brand: Schwarzbeck

Min. order: 1 unit
Stock: 0
Delivery: 1-16 weeks

Standards: /
Industry: /

Warranty: Original Import ; New Products ; Authorized Sales
Training: On-site training; Telephone; Email
Logistics: Shenzhen to National
Payment: Online banking

Product Price:

Product Description:

SGA 2450 is a standard gain antenna manufactured by Schwarzbeck, Germany and authorized to be sold by Shenzhen EUTTEST, according to the EIA/TIA-329-B standard, this antenna is known as "transmission standard antenna" or "EIA reference antenna ", this antenna has a gain of 9.8 dBi at the design frequency of 2.45 GHz. it can also be used in the frequency range of 2 GHz to 3.2 GHz. The half-power beamwidth is approximately 60°. The standard gain antenna consists of a square reflector with dimensions λ x λ and is ideally suited to applications requiring high gain, good directivity and good front-to-back ratio. The antenna can also be mounted toAntenna Tripod AM9144on it, as shown below:

The SGA 2450 can be used with the antenna tripod AM9144 and its adapter.

Can be used with antenna tripod AM9144 and its adapters

Technical parameters:

<<<<提醒:左右滑动表格>>>>
Standard Gain Antenna ModelSGA 2450
manufacturerSchwarzbeck, Germany
Agent Sales Service ProviderShenzhen EUTTEST
Design frequency2.45GHz
Available frequency2GHz - 3.2GHz
Size: L*W*Hλ*λ*(λ/4)
wavelength300 / f(MHz) = 0.122 meters
bandwidths1.6:1
Support rod288mm*22mm (diameter)
connectorN
impedance50Ω
<<<<提醒:左右滑动表格>>>>

Graph of related technical parameters:

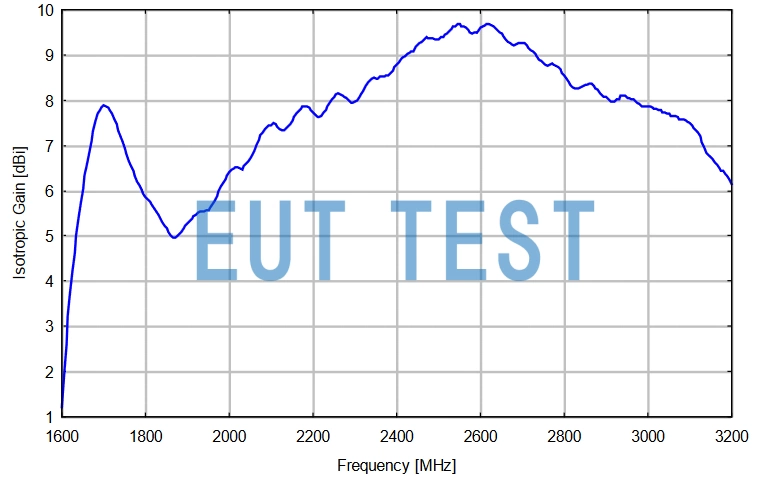

SGA 2450 Anisotropic Gain Curves

Isotropic Gain Curve

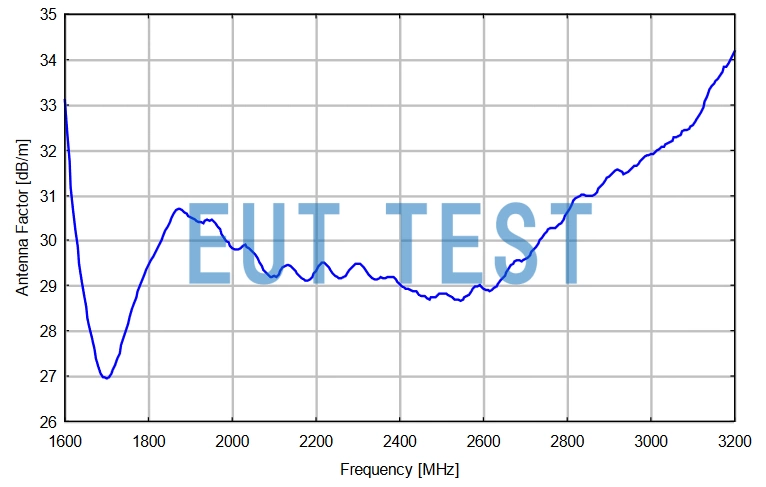

SGA 2450 Antenna Coefficient Graph

Antenna Coefficient Graph
