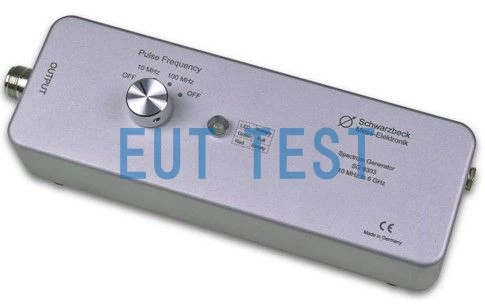

SG 9303 Schwarzbeck Comb Spectrum Generator Signal Source

Model: SG 9303
Brand: Schwarzbeck

Min. order: 1 unit
Stock: 0
Delivery: 1-16 weeks

Standards: /
Industry: /

Warranty: Original Import ; New Products ; Authorized Sales
Training: On-site training; Telephone; Email
Logistics: Shenzhen to National
Payment: Online banking

Product Price:

Introduction:

SG 9303 is produced by Germany schwarzbeck and authorized by Shenzhen EUTTEST agent sales and after-sales comb spectral generator signal source, this signal source is battery-powered, the general test of the frequency of 1GHz-6GHz, according to the test requirements can also provide a maximum of 8 GHz comb signal, comb signal spacing can be 10 MHz and 100 MHz switch between. The comb spacing can be switched between 10 MHz and 100 MHz. Due to its small size and light weight, as well as the separate built-in power supply, it is a universal reference source for the EMC industry.

If you need a Comb comb source for 18GHz-20GHz please check the connections below:

SG 9302 C Comb Spectrum Generator Signal Source 100MHz-18GHz

function:

This generator can be used with Schwarzbeck transmitter antennas. When performing an immunity field strength setup, the connection characteristics including the receive antenna, cable, preamplifier and receiver or spectrum analyzer can be verified.

This signal source is also suitable for checking the functionality of EMI test receivers or spectrum analyzers. Cables and attenuators can also be tested.

Technical parameters:

<<<<提醒:左右滑动表格>>>>
Model numberSG 9303
manufacturerSchwarzbeck
agentEUTTEST
operating frequency1GHz-6GHz
Available frequency10MHz-8GHz
Pulse width 10MHz60ns
Pulse width 100MHz7ns
nicknameComb source, comb generate, comb generate, comb generate, comb generate
connectorN, 50Ω
frequency error50 ppm maximum; 20 ppm typical
Output Level Stability±1dB
internally installed6 x NiMH Cells AA
Typical Current Consumptionca. 150 mA @ 100 MHz

ca. 100 mA @ 10 MHz

Battery operation time8h
battery levelACS 110
size214*68*67mm
weight690g
<<<<提醒:左右滑动表格>>>>

Graph of related technical parameters:

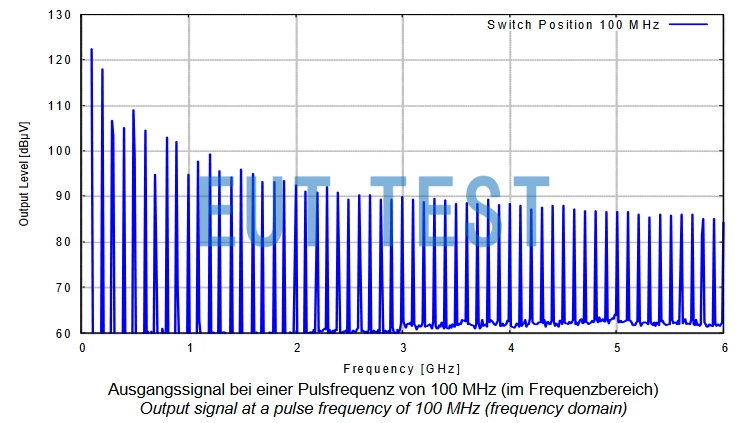

SG 9303 Comb Spectrum Signal Output at 100MHz-6GHz

Comb Spectrum Signal Output at 100MHz-6GHz
