SBA9113 Schwarzbeck Microwave Biconical Antenna

Model: SBA9113
Brand: Schwarzbeck

Min. order: 1 unit
Stock: 0
Delivery: 1-16 weeks

Industry: /

Warranty: Original Import ; New Products ; Authorized Sales
Training: On-site training; Telephone; Email
Logistics: Shenzhen to National
Payment: Online banking

Product Price:

Product Description:

SBA9113 is a microwave biconical antenna manufactured by Schwarzbeck, Germany and represented by EUTTEST Shenzhen for sales and quotation. We also offer a smaller version of the SBA 9113 mini version antenna, which is smaller in size and has the same performance as the SBA 9113. The SBA 9113 and SBA 9113 mini version can be paired with the SBA 9113 mini version. 420NJ  Tests required by the EMC S 2009 standard or ISO 11452-9.Handheld Transmitter Immunity TestingUtilization.

Test application:

Typical applications for this antenna are for the evaluation of EMC test sites, (frequency-selective) field strength measurements and the generation of defined field strengths (e.g. ERP or EIRP), with a typical application being the determination of field strength exposures in the vicinity of base stations in the GSM band. The wide bandwidth of the SBA 9113 eliminates the need for time-consuming replacement of antenna elements as needed when operating with a tuned half-wave dipole, and the biconical elements of the SBA 9113 allow continuous scanning over the entire frequency range. Because of the dipole-like directional pattern, fixed phase center, and high power handling capability, this antenna can replace a tuned half-wave dipole in many applications. This antenna is not suitable for very-low-limit, horn, and log-periodic RF emission testing.

如果您需要测试其他频率范围,请选择以下同类天线产品:

  • 419 NJ + NMHC 4MM : Measurable frequency 20MHz-220MHz
  • 422 NJ + SBA 9119 :可测频率 800MHz-6GHz
  • 420 NJ + SBA 9113 or SBA 9113 mini version: Measurable frequency 370MHz-2.7GHz

Technical parameters:

<<<<提醒:左右滑动表格>>>>
Antenna ModelSBA9113
Antenna nameBiconical antenna
manufacturerSchwarzbeck
agentShenzhen EUTTEST
Test frequency range500MHz-3GHz
impedance50Ω
connectorN-shape
size560mm*190mm*140mm
Antenna Gain Range-1.5dBi to 1.5dBi (600MHz-3GHz)
Antenna Coefficient Range25dB/m to 41dB/m
Maximum input power20W
Biconical antenna half power beamwidth80°-50°
weight750g
Meet the standardCISPR16-1-4:2007-02 Ed. 2.0

Test site validation above 1GHz

<<<<提醒:左右滑动表格>>>>

Graph of related technical parameters:

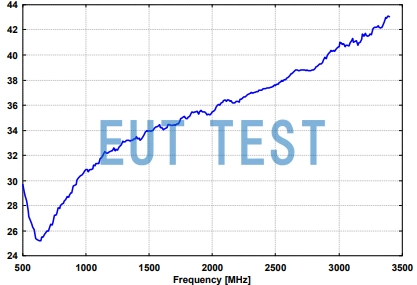

Antenna Coefficient Plot for SBA9113

Antenna Coefficient Plot for SBA9113
