Introduction:

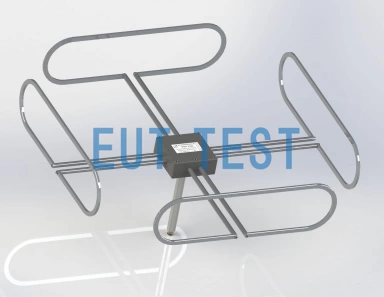

The RSH 2342 is a DVB-T horizontally polarized omni-directional antenna manufactured by Schwarzbeck, Germany, and is authorized to be represented by EUTTEST in Shenzhen for sales and quotation services. This horizontally polarized omni-directional antenna is designed for mobile and fixed reception and transmission applications covering the test frequency range of 170MHz-350MHz. Typical applications use this antenna for DVB-T (DTMB, ATSC, or ISDB-T) coverage measurements on a survey vehicle.
Optional if you need to test DVB coverage measurements: RSH 4786
Optional antenna mount:RRAH 9286 Schwarzbeck Roof Antenna Mounting Bracket
Technical parameters:
<<<<提醒:左右滑动表格>>>>Model number | RSH 2342 |
Product name | Horizontally polarized omni-directional antenna |
manufacturer | Schwarzbeck, Germany |
agent | Shenzhen EUTTEST |
Test frequency range | 170MHz-350MHz |
connector | 50Ω N-type connector |
Antenna Gain Range | -2dBi ±3dBi |
Antenna Coefficient Range | 16 dB/m - 25 dB/m |
Offset omni-directional antenna | <±2dB |
Maximum input power | 200W |
weight | 3 kg |
size | 720 mm * 720 mm * 390 mm |
Recommended Antenna Distance | >0.5 m |
Graph of related technical parameters:

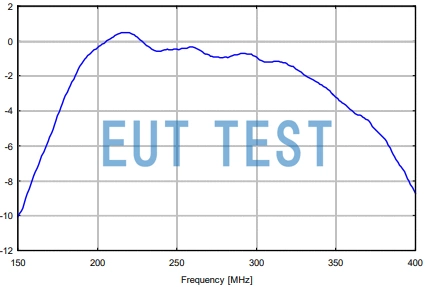

Antenna Gain Graph

Antenna Coefficient Graph
