RSAL 5340 Schwarzbeck Railway Locomotive Low Frequency 3D Magnetic Field Antenna

Model: RSAL 5340
Brand: Schwarzbeck

Min. order: 1 unit
Stock: 0
Delivery: 1-16 weeks

Standards:
Industry: /

Warranty: Original Import ; New Products ; Authorized Sales
Training: On-site training; Telephone; Email
Logistics: Shenzhen to National
Payment: Online banking

Product Price:

Introduction:

RSAL 5340 is a low frequency 3D magnetic field antenna for railroad locomotives manufactured by Schwarzbeck, Germany and authorized by EUTTEST Shenzhen for sales and quotation. The antenna is used to measure the magnetic field of powered rolling stock in accordance with CLC/TS 50238-3:2010 and covers a test frequency of 10kHz-100kHz.

The CLC/TS 50238-3:2010 standard specifies antennas for two measurement bands:

In addition, the standard also requires that the 3-D antenna should be installed at a certain distance from the train tracks, so we recommend that you buy the RSA COVER Option, this option will keep the antenna protected from outdoor weather and humidity, can fix the antenna on the railroad tracks and is the same distance as the standard requirement.

Technical parameters:

<<<<提醒:左右滑动表格>>>>
Antenna ModelRSAL 5340
Antenna nameRailroad locomotive low-frequency three-dimensional magnetic field antenna
manufacturerSchwarzbeck (name)
agentShenzhen EUTTEST
test shaftX,Y,Z axis
X-axis ring diameter50mm*50mm
Y,Z axis ring diameter150 mm * 50 mm
Number of coils40 turns
size166mm*81mm*60 code
connectorSMA
Recommended Test Frequency10 kHz - 100 kHz
Available frequency range10 kHz - 1 MHz
X-axis impedance
  • Inductance: 205 μH
  • Resistance: 8 Ω
  • Capacitance: 95 pF
Y-axis and Z-axis impedance
  • Inductance: 450 μH
  • Resistance: 16 Ω
  • Capacitance: 120 pF

Check the impedance graph below for specific values

weight0.44 kg
<<<<提醒:左右滑动表格>>>>

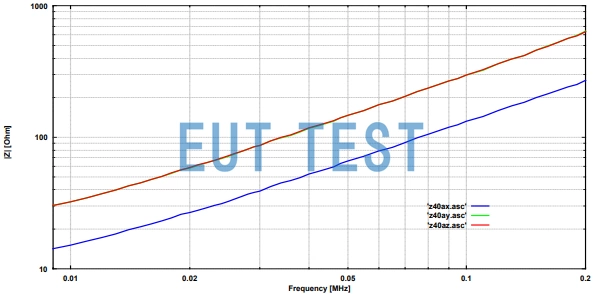

Antenna source impedance plot:

RSAL 5340 Source impedance in the frequency range 10kHz-100kHz

Source impedance in the frequency range 10kHz-100kHz
