Introduction：
The RSAL 5324 is a high-frequency, three-dimensional magnetic field antenna for railroad locomotives manufactured by Schwarzbeck, Germany, and authorized by EUTTEST Shenzhen for sales and quotation. The antenna is used for measurement of powered rolling stock in accordance with CLC/TS 50238-3:2010 and covers a test frequency of 100kHz-1.3MHz.
The CLC/TS 50238-3:2010 standard specifies antennas for two measurement bands:
- Low Frequency LFR: 10kHz to 100kHz: RSAH 5340 Railway Locomotive Low Frequency 3D Magnetic Field AntennaThe
- High Frequency HFR: 100 kHz to 1.3 MHz: Tested with the RSAL5324 described on this page.
In addition, the standard also requires that the 3-D antenna should be installed at a certain distance from the train tracks, so we recommend that you buy the RSA COVER Option, this option will keep the antenna protected from outdoor weather and humidity, can fix the antenna on the railroad tracks and is the same distance as the standard requirement.
Technical parameters：
<<<<提醒：左右滑动表格>>>>| Antenna Model | RSAL 5324 |
| Antenna name | Railroad locomotive high-frequency three-dimensional magnetic field antenna |
| manufacturer | Schwarzbeck (name) |
| agent | Shenzhen EUTTEST |
| test shaft | X,Y,Z axis |
| X-axis ring diameter | 50mm*50mm |
| Y,Z axis ring diameter | 150 mm * 50 mm |
| Number of coils | 24 turns |
| size | 166mm*81mm*60 code |
| connector | SMA |
| Recommended Test Frequency | 100 kHz - 1.3 MHz |
| Available frequency range | 10 kHz - 2 MHz |
| X-axis impedance |
|
| Y-axis and Z-axis impedance |
Check the impedance graph below for specific values |
| weight | 0.44 kg |

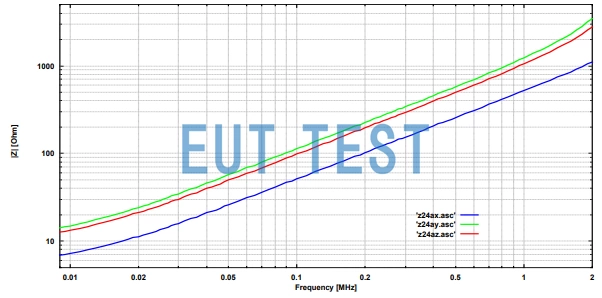

Antenna source impedance plot:
Source impedance in the frequency range 100 kHz - 1.3 MHz
