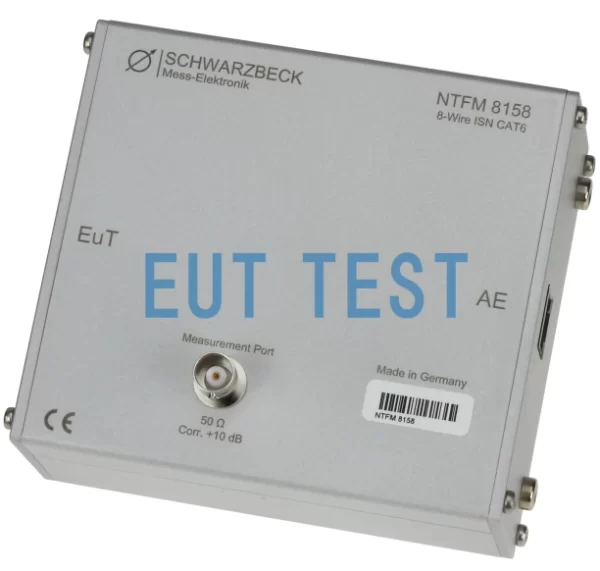

NTFM 8158 Schwarzbeck ISN for CAT6 cables

Model: NTFM 8158
Brand: Schwarzbeck

Min. order: 1 unit
Stock: 0
Delivery: 1-16 weeks

Standards: /
Industry: /

Warranty: Original Import ; New Products ; Authorized Sales
Training: On-site training; Telephone; Email
Logistics: Shenzhen to National
Payment: Online banking

Product Price:

Introduction:

The NTFM 8158 is an ISN Impedance Stabilization Network for CAT6 cable manufactured by Schwarzbeck, Germany and authorized for sale by EUTTEST, Shenzhen, China. Required by CISPR 22:2005 or CISPR32, the ISN NTFM 8158 allows for the measurement of common-mode interference voltages on unprotected twisted-pair UTPs or communication ports with 2, 4, 6, or 8 wires. Performs common-mode interference voltage measurements. The device under test, the EuT, or the auxiliary equipment, the AE, can be connected using an RJ-45 network cable jack. Pin assignments follow EIA/TIA-T568A/B. The circuit principle of the NTFM 8158 is designed according to Figure D.3 of CISPR 22 Edition 5.2 and does not affect the transmission quality up to Gigabit Ethernet.

Technical data of the NTFM 8158:

<<<<提醒:左右滑动表格>>>>
Equipment ModelNTFM 8158
Device nameImpedance stabilized network with 8 wires
Meet the standardCISPR22

CISPR32

manufacturerSchwarzbeck
agentEUTTEST
ISN frequency150kHz-30MHz
CDN frequency150kHz-80MHz
Equipment typeT8, T4, T2-ISN, CDN (EAB8 50-150 required)
AE-EUT port insertion losstyp.: < 1 dB 100 kHz to 30 MHz

typ.: < 2.5 dB 30 MHz to 250 MHz

AE-EUT decoupling>55dB
agentEuttest.com
LCL longitudinal conversion loss75 dB @ 150 kHz

59 dB @ 30 MHz (Fig.5)

partial pressure coefficient10 dB ± 1 dB
impedance≤30 MHz: 150 Ω ± 20 Ω (Fig.7)

>30 MHz: 150 Ω + 60 Ω / -45 Ω ≤

common-mode phase angle0˚ ± 20˚
connectorRJ-45
Maximum current800mA per pair of wires
Maximum voltage63 VAC / 100 VDC
RF portBNC
weight465g
WHD125mm*62mm*105mm
<<<<提醒:左右滑动表格>>>>

Technical data charts:

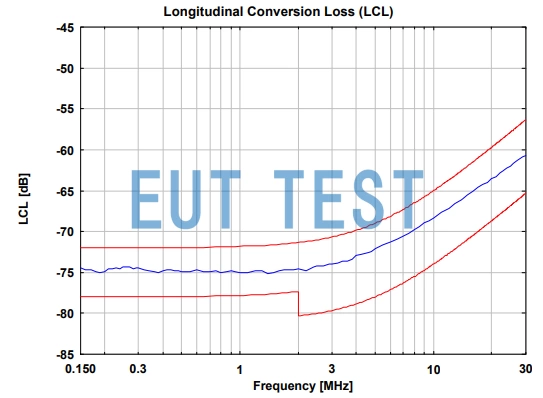

LCL Longitudinal Conversion Loss Curve for NTFM 8158

LCL Longitudinal Conversion Loss Curve for NTFM 8158

Pressure Separation Factor Graph for NTFM 8158

Pressure Separation Factor Graph for NTFM 8158

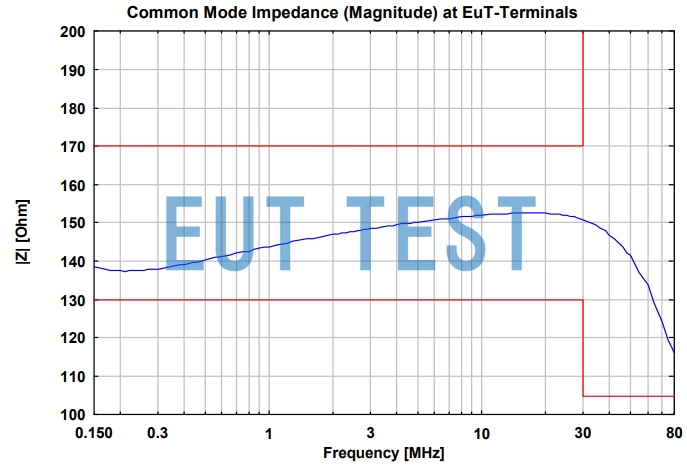

Common Mode Impedance Curve for NTFM 8158

Common Mode Impedance Curve for NTFM 8158

We also offer more available ISN impedance stabilization networks and AAN asymmetric artificial networks to choose from. Click on the links below to find out:

How to select ISNs and AANs by test standard requirements?
