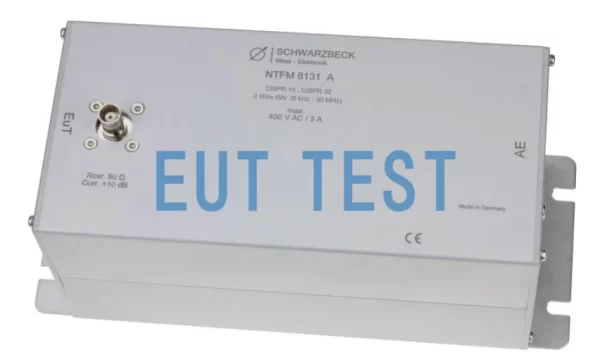

NTFM 8131A schwarzbeck meets the AAN requirements of CISPR32

Model: NTFM 8131A
Brand: Schwarzbeck

Min. order: 1 unit
Stock: 0
Delivery: 1-16 weeks

Standards: /
Industry: /

Warranty: Original Import ; New Products ; Authorized Sales
Training: On-site training; Telephone; Email
Logistics: Shenzhen to National
Payment: Online banking

Product Price:

Introduction:

NTFM 8131A is the latest AAN - Asymmetric Artificial Network ( Asymmetric Artificial Network ) produced by schwarzbeck, Germany, which is represented by Shenzhen EUTTEST for sales and quotation service." The "Impedance Stabilization Network NTFM 8131 A", also known as T-ISN, is used to measure asymmetric interference voltages on symmetric data or telecommunication lines. Since 2002, the T-ISN has been used to measure asymmetrical interference voltages according to EN 55015 (electrical lighting equipment). In addition, it can be used for measurements according to CISPR 32. In contrast to the widely used T-ISN, the NTFM 8131 A is designed to withstand 400 V AC with a maximum current of 3 A. The NTFM 8131 A is designed to withstand 400 V AC with a maximum current of 3 A.

The NTFM 8131A is a replacement for the NTFM 8131 and meets the requirements of the latest version of the CISPR32 standard for AANs.

We also offer more available ISN impedance stabilization networks and AAN asymmetric artificial networks to choose from. Click on the links below to find out:

How to select ISNs and AANs by test standard requirements?

Technical parameters:

<<<<提醒:左右滑动表格>>>>
Equipment ModelNTFM 8131A
Device nameAAN - Asymmetric Artificial Network

ISN-Impedance matching network

manufacturerSchwarzbeck, Germany
agentShenzhen EUTTEST
Frequency range:(9 kHz) 150 kHz-30 MHz
Impedance (asymmetric):150 Ω ± 20 Ω
Phase (asymmetry):0 ° ± 20 °
The dividing ratio of the asymmetrical voltage: 10 dB +/-1.5 dB
EUT, AE terminals:4 mm
Measurement Port:50Ω BNC
Maximum voltage:400 V AC
Maximum current:3 A
insertion loss
(differential mode):
< 3 dB (100 Ω sym.)
Product Dimensions:119 mm x 250 mm x 105 mm
Weight approximation:1.5 kg
According to the criteria:CISPR 16-1.2
CISPR 32
CISPR 15
<<<<提醒:左右滑动表格>>>>

Chart of technical parameters of the equipment:

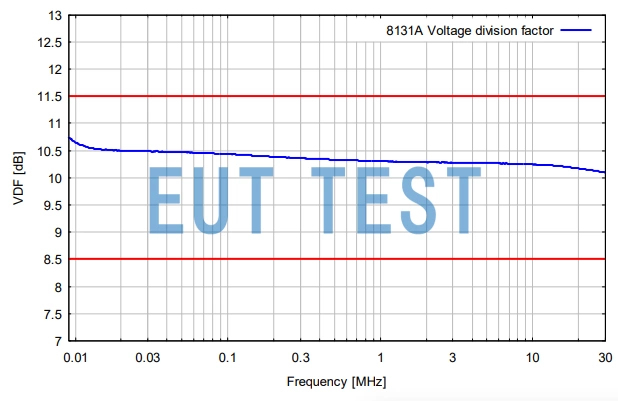

Common mode port voltage divider for NTFM 8131A

Common mode port voltage divider for NTFM 8131A

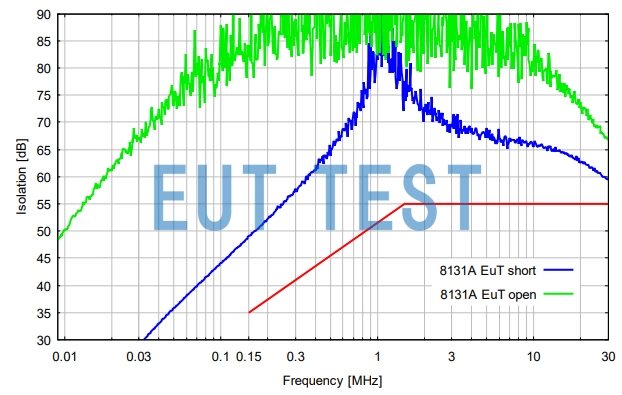

Common Mode Port Decoupling Attenuation for NTFM 8131A

Common Mode Port Decoupling Attenuation for NTFM 8131A

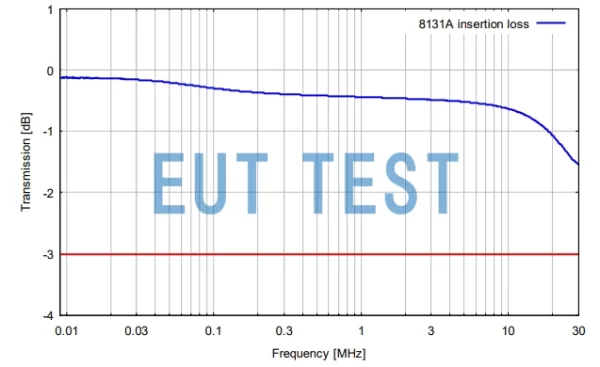

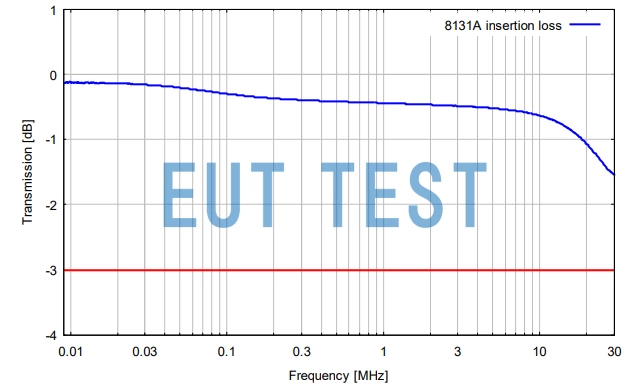

Insertion Loss of NTFM 8131A

Insertion Loss of NTFM 8131A

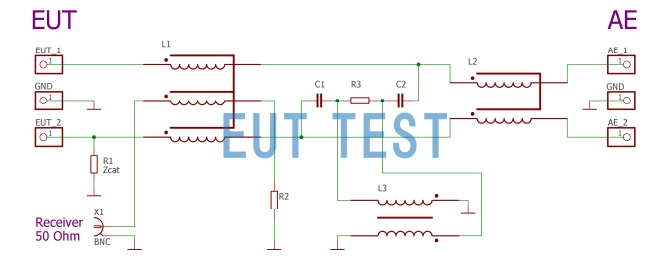

Circuit Schematic for NTFM 8131A

Circuit Schematic for NTFM 8131A

For more technical diagrams related to NTFM 8131A contact us for information.
