Introduction：
The NSLK 8163 is a LISN - Linear Impedance Stabilizing Network manufactured by Schwarzbeck, Germany, and authorized for sale by EUTTEST, for testing of three-phase alternating current DUTs with a mains ground voltage of 700V and a current of 63A. The NSLK 8163 is equipped with a 250 μH choke and a 50 μH choke connected in series in each path. The NSLK 8163 is equipped with a 250 μH choke and a 50 μH choke, each connected in series, and the 250 μH choke provides excellent decoupling between the mains supply and the device under test from 9 kHz to 30 MHz. It is manufactured in accordance with CISPR 16-2-1, and the connecting cable of the DUT has to be laid at a distance of 40 cm from the metal wall, and the length of the cable has to be 80 cm or curved. The way the cables are laid, the type of protective earth connection and the capacitance of the device under test affect the interference voltage, especially at higher frequencies.
Technical parameters：
| Model number | NSLK 8163 |
| manufacturer | Schwarzbeck |
| Device name | V-LISN, artificial power network, linear impedance stabilization network |
| Available Power Supplies | Three-phase electrical products |
| Available frequency range: | 9 kHz - 30 MHz |
| Inductance size | 250 µH |
| impedance | 50 Ω || (50 µH + 5 Ω) |
| Maximum operating current | 4 x 63 A (L1,L2,L3,N) |
| Maximum working voltage | 400/700 VAC 630 VDC |
| power cable (of an appliance etc) | CEE plug (IEC 60309) |
| EUT Power Port | CEE socket |
| agent | Euttest.com |
| human hand interface (HMI) | 4 mm banana head, non-removable mounting |
| RF output port | BNC, 50 Ω |
| Dimensions (WxHxD). | 450 mm x 480 mm x 650 mm |
| Available Criteria | CISPR 16-1-2 |
| EMC Options | NSLK 8163 Opt. RC |
| weight | 48.8kg |
Graph of related technical parameters：

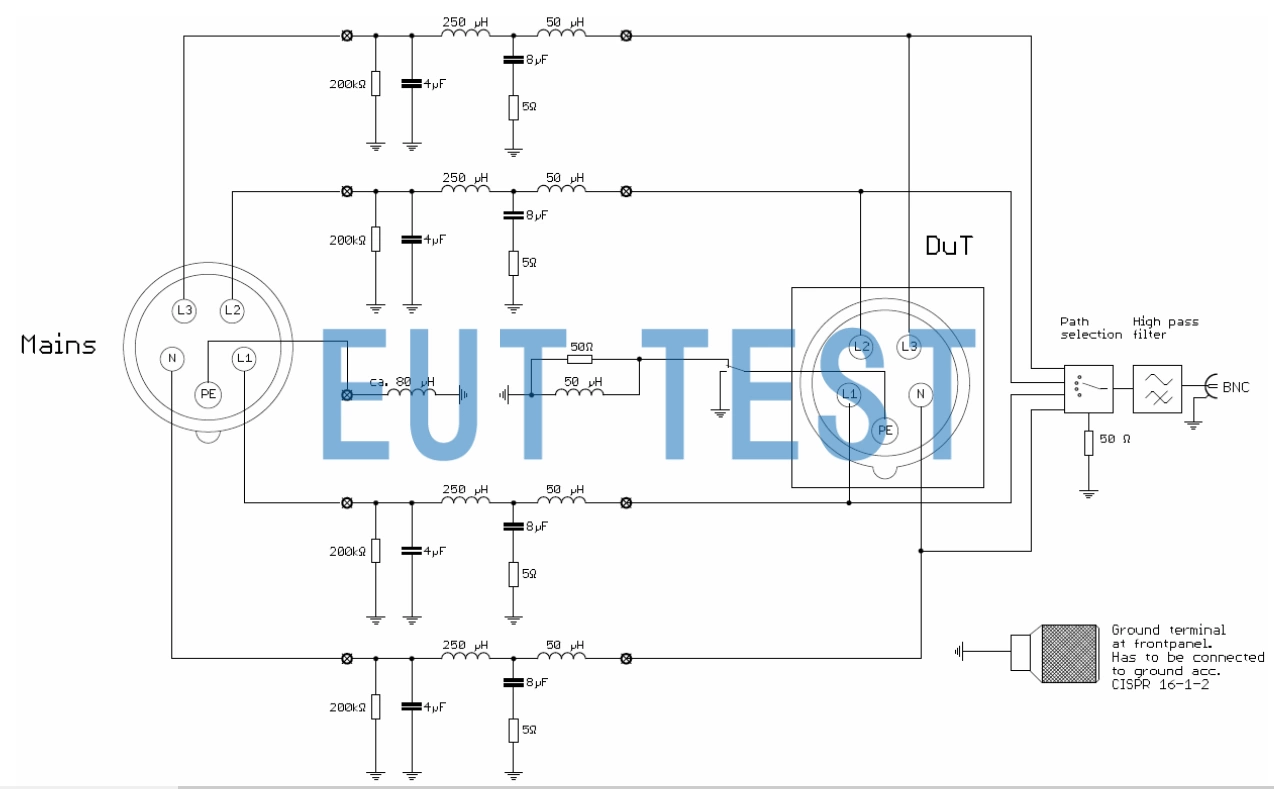

Circuit schematic

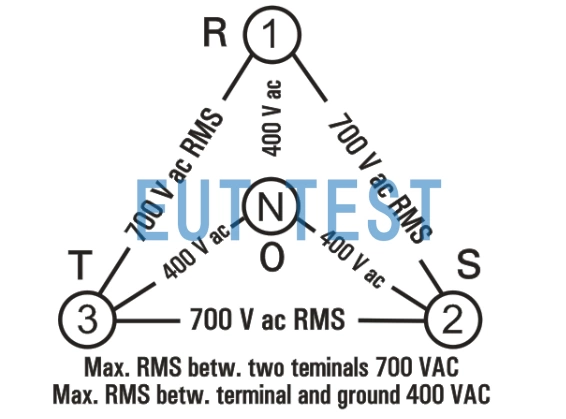

Maximum EUT operating voltage

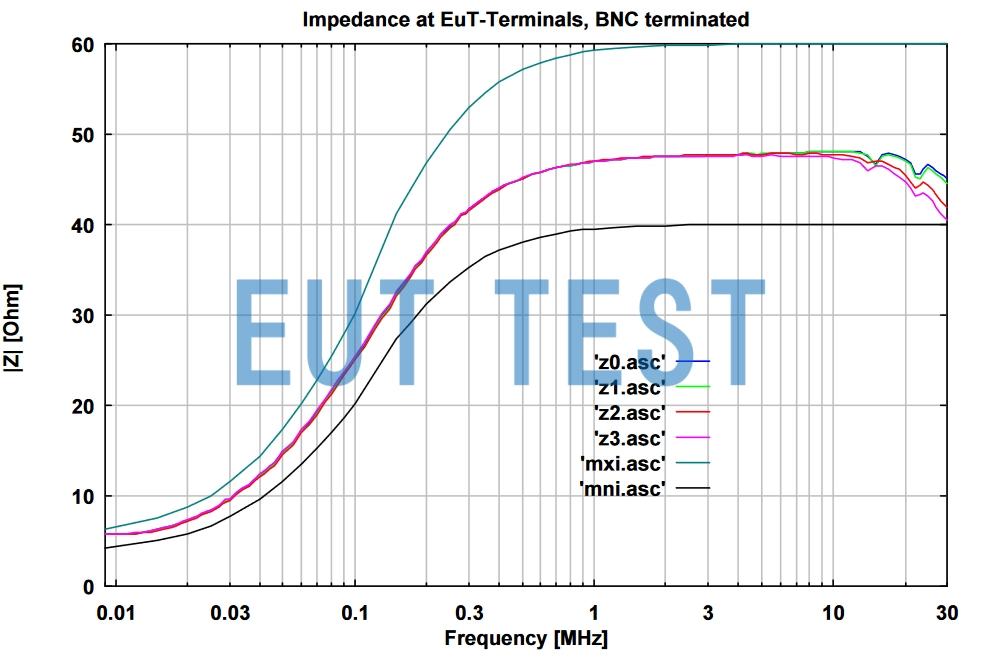

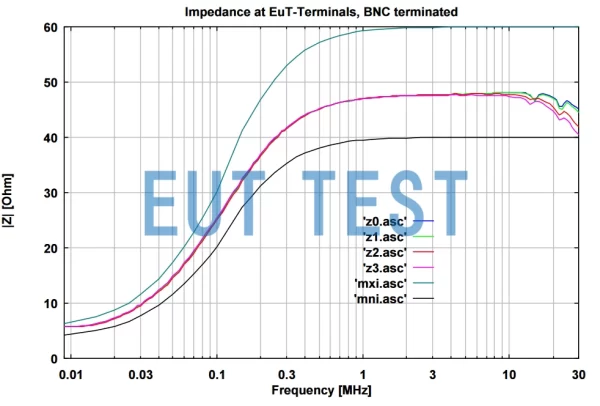

Impedance plot at EUT port

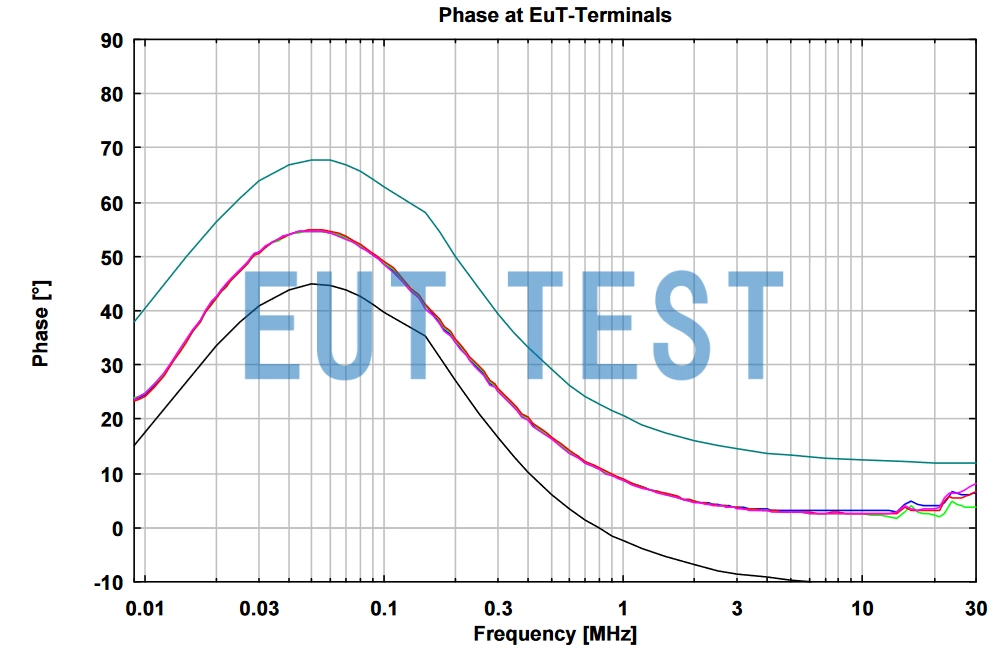

Phase profile at the EUT port

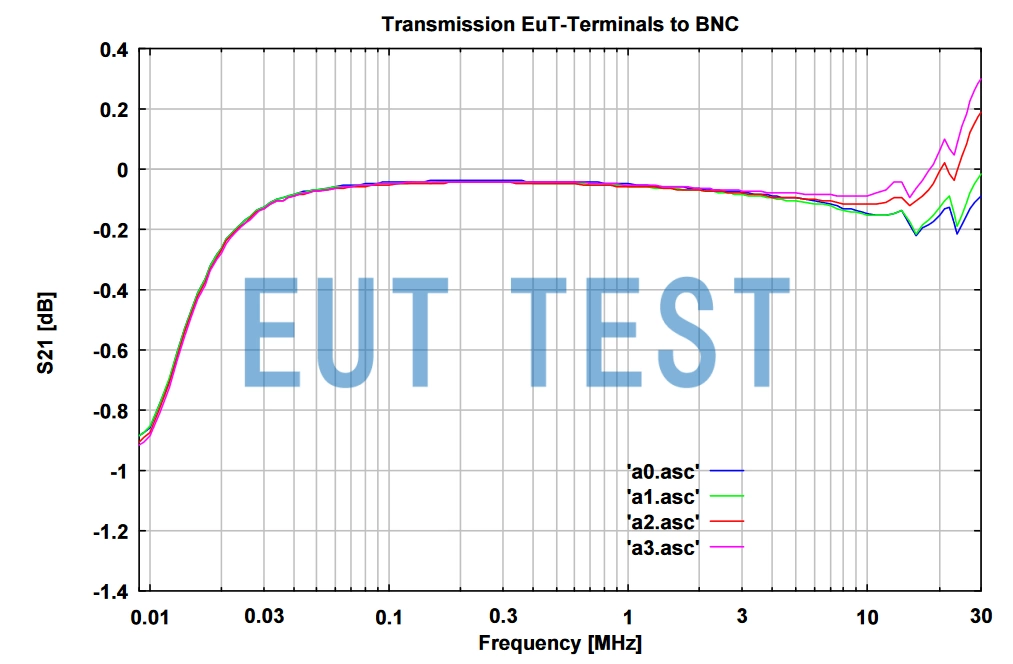

S21 Curve Chart

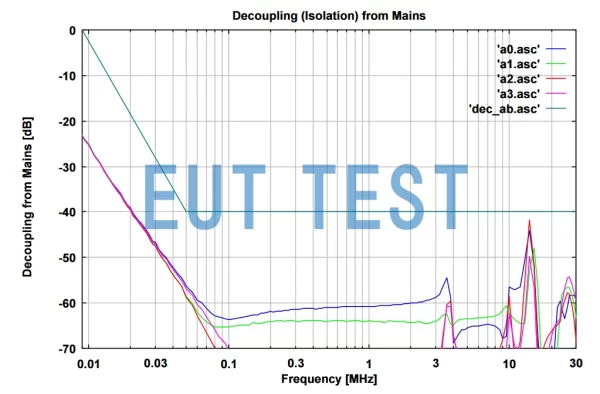

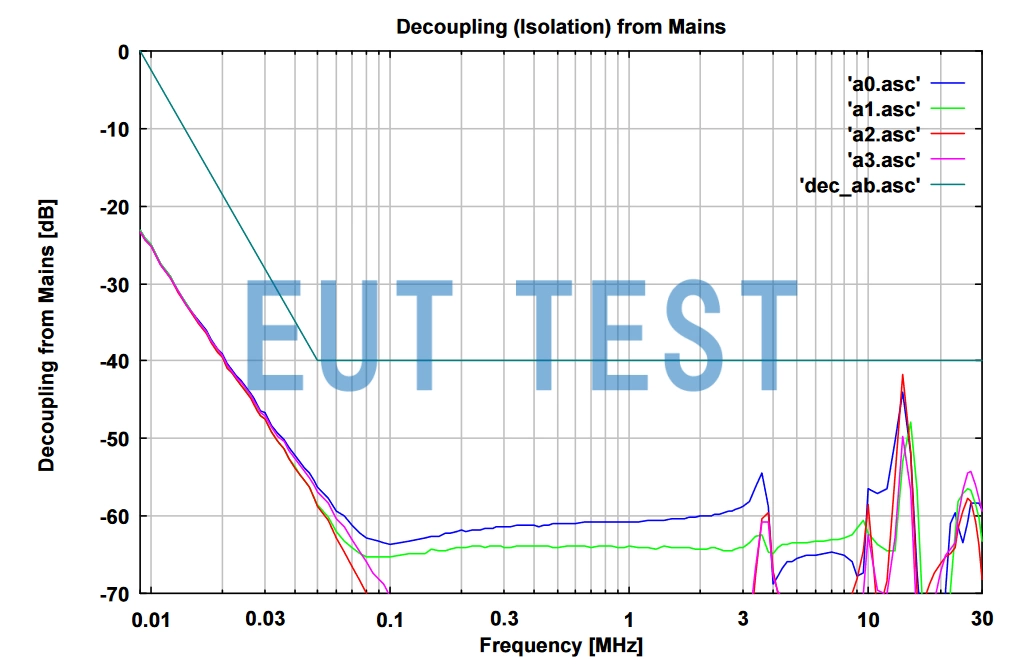

Decoupling Performance Graph
The NSLK 8163 needs to be used with an EMI test receiver and additional accessories such as an attenuator, contact EUTTEST for details.
