Introduction：
NSLK 8126 is a LISN-Linear Impedance Stabilization Network produced by Schwarzbeck, Germany and authorized to be sold by EUTTEST as an agent. It can test single-phase alternating current (AC) products with a voltage of 250V and a current of 16A at the power line ground, and it can test three-phase alternating current (AC) products with a voltage of 250V and a current of 16A at the power line ground. It is a LISN that can be directly inserted into the mains plug, and can be converted to national standard use with the power adapter presented by our company.
This LISN is manufactured in accordance with CISPR 16-2-1. The connecting cable of the device under test must be laid at a distance of 40 cm from the metal wall and the cable length should be 80 cm or laid in a curved manner. The way the cables are laid, the type of protective earth connection and the capacitance of the device under test affect the interference voltage, especially at higher frequencies.
Technical parameters：
| Model number | NSLK 8126 |
| manufacturer | Schwarzbeck |
| Available power modes | Single-phase, three-phase products |
| Available frequency range: | 9 kHz - 30 MHz |
| Inductance size | 250 µH |
| impedance | 50 Ω || (50 µH + 5 Ω) |
| Maximum operating current | 2 x 16 A (L1,N) 4 x 16 A (L1,L2,L3,N) |
| Maximum working voltage | 250 VAC 50/60 Hz 400 VDC |
| power cable (of an appliance etc) | CEE 7/4 Type F (Schuko) plug |
| EUT Power Port | CEE 7/4 Type F (Schuko) socket |
| agent | Euttest.com |
| human hand interface (HMI) | 4 mm banana head, non-removable mounting |
| RF output port | BNC, 50 Ω |
| Dimensions (WxHxD). | 450 mm x 470 mm x 190 mm |
| Available Criteria | CISPR 16-1-2 |
| EMC Options | NSLK 8126 Opt. RC |
Graph of related technical parameters：

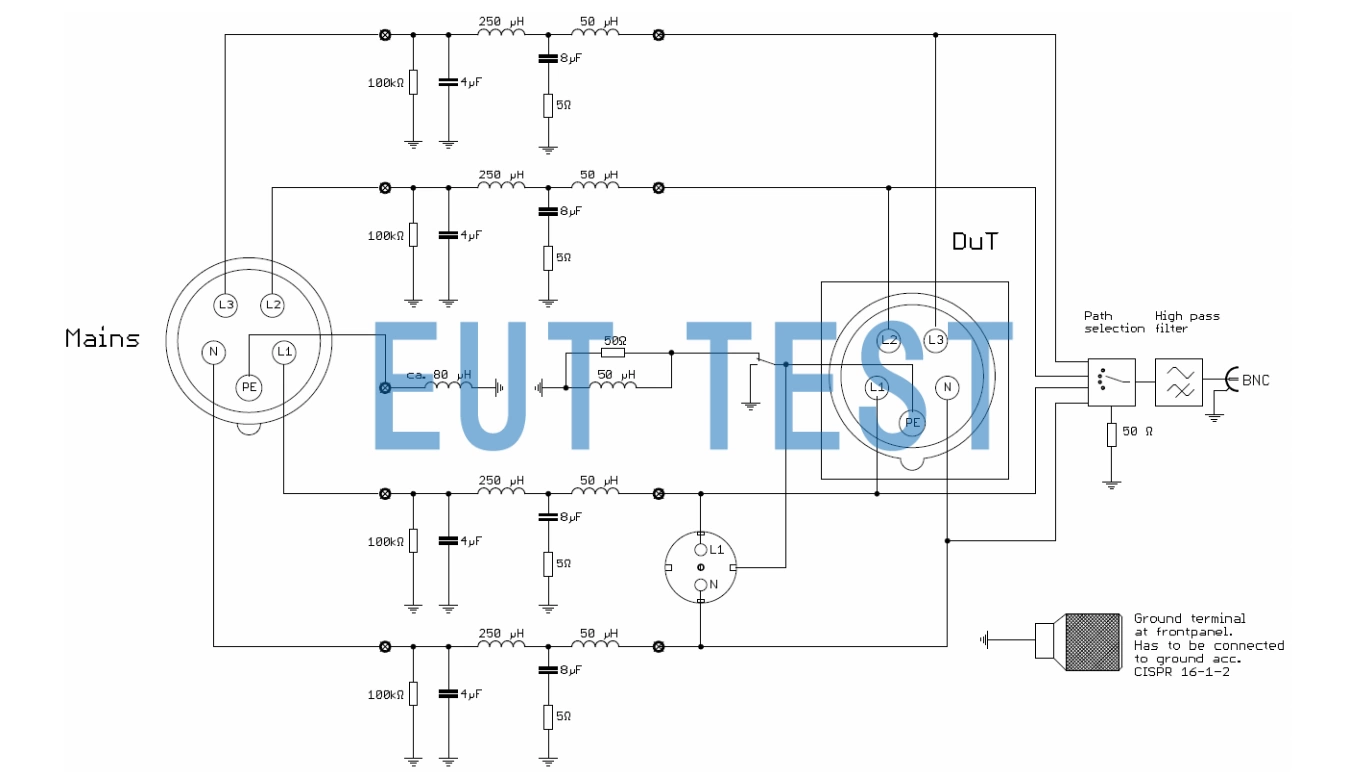

Circuit schematic

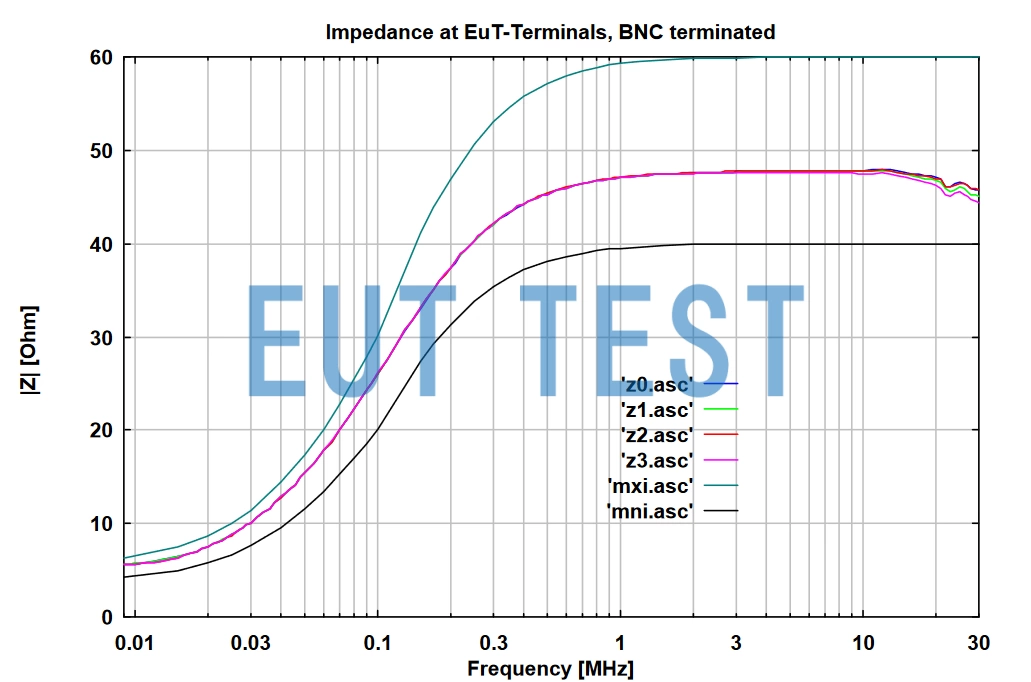

Impedance graph of EUT port

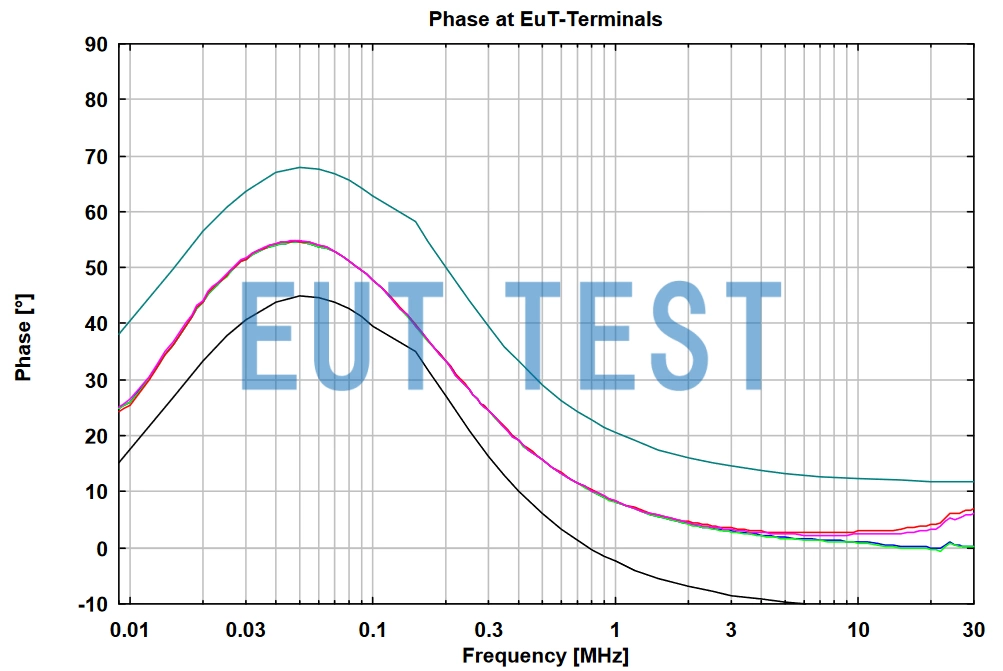

Phase profile of the EUT port

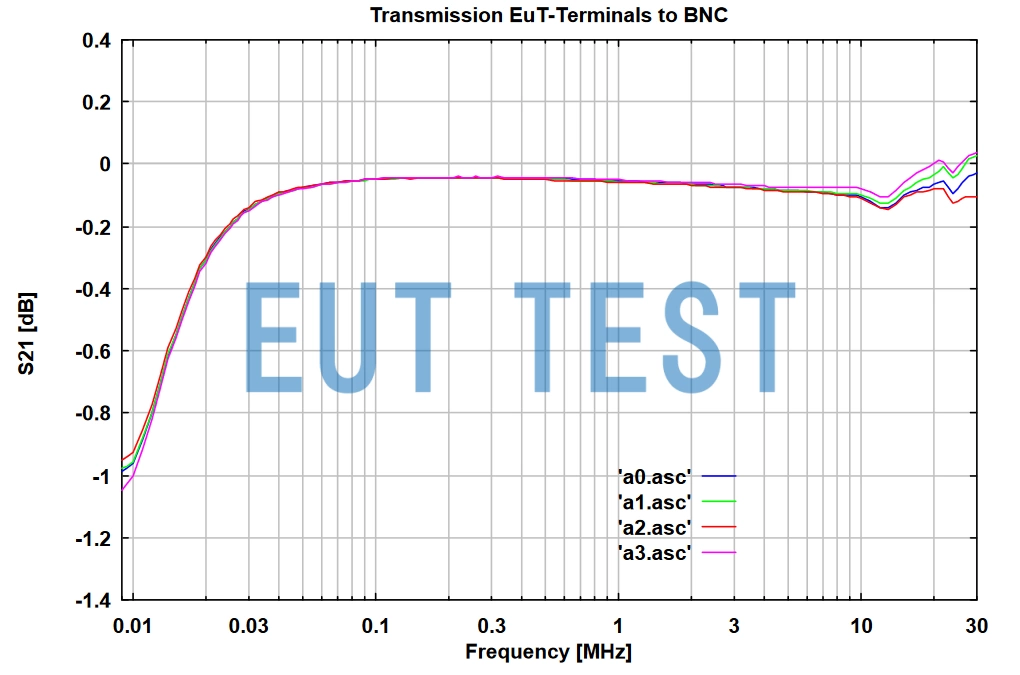

S21 Curve Diagram
The NSLK8126 needs to be used with an EMI test receiver and additional accessories such as an attenuator, contact EUTTEST for details.
