Introduction：
The NSLK 8117 is a linear impedance stabilizing network manufactured by Schwarzbeck (Germany) and marketed under license by EUTTEST for testing single-phase alternating current DUTs with a supply line ground voltage of 250 V and a current of 10 A. As can be seen in the schematic below, it is equipped with a 250 μH choke and a 50 μH choke, each path connected in series. The 250 μH choke provides excellent separation between the power supply and the device under test and is available from 9 kHz.

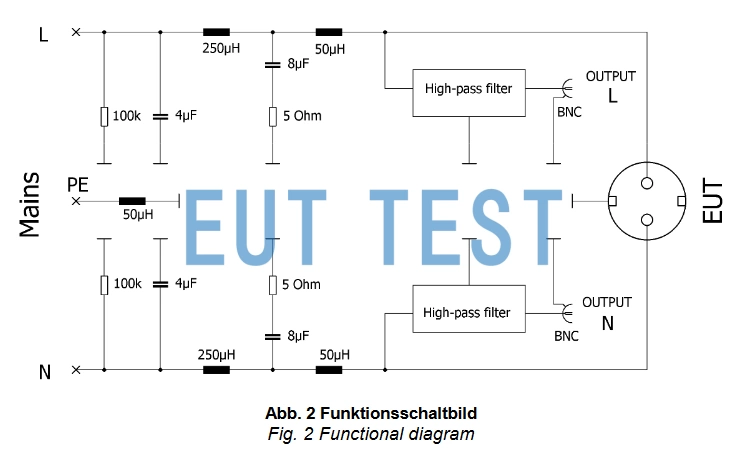

Circuit schematic
The NSLK 8117 is required to measure conducted interference voltages according to VDE, CISPR and related standards. It provides a standardized impedance of 50 Ω || (50 µH + 5 Ω) for the device under test and reduces the interference voltage from the power supply, which is separated from the EMI measurement receiver by a 7 kHz high-pass filter.
Technical parameters：
| Model number | NSLK 8117 |
| manufacturer | Schwarzbeck |
| Device name | Single-phase artificial power networks |
| Available frequency range: | 9 kHz - 30 MHz |
| Inductance size | 250 µH |
| impedance | 50 Ω || (50 µH + 5 Ω) |
| Maximum operating current | 2 x 10 A |
| Maximum working voltage | 250 VAC 50/60 Hz 350 VDC |
| power cable (of an appliance etc) | IEC Appliance Inlet C14 |
| EUT Power Port | CEE 7/4 Type F (Schuko) socket |
| agent | Euttest.com |
| human hand interface (HMI) | 4 mm banana head, non-removable mounting |
| RF output port | BNC, 50 Ω |
| Dimensions (WxHxD). | 105 mm x 108 mm x 263 mm |
| Available Criteria | CISPR 16-1-2 |
Graph of related technical parameters：

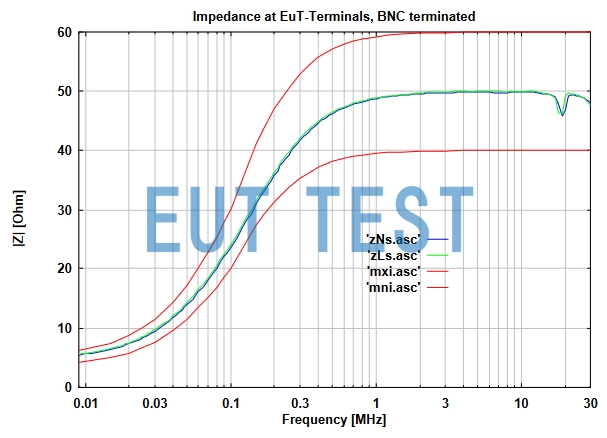

Impedance graph of EUT port

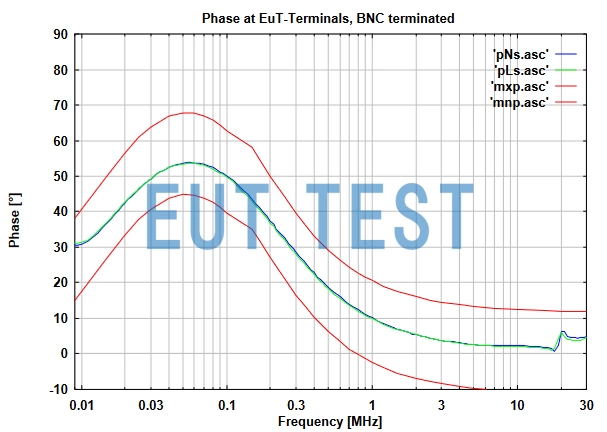

Phase profile of the EUT port

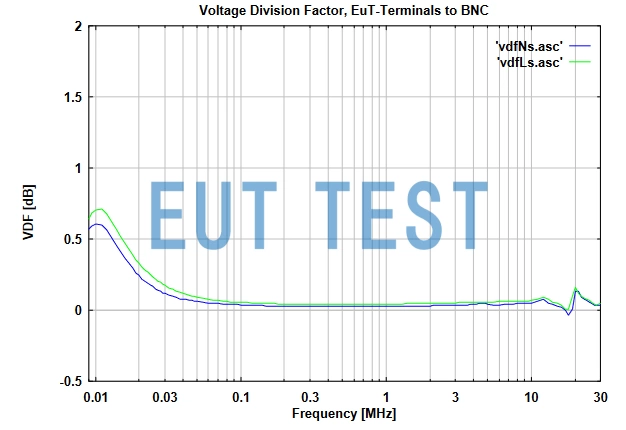

Voltage dividing factor graph
The NSLK8117 requires an EMI test receiver, and theAttenuatorFor more information, please contact EUTTEST.
