NSG 4070C1 TESEQ Conducted and Radiated Immunity Test System

Model: NSG 4070C1
Brand: TESEQ

Min. order: 1 unit
Stock: 0
Delivery: 1-16 weeks

Industry: /

Warranty: Original Import ; New Products ; Authorized Sales
Training: On-site training; Telephone; Email
Logistics: Shenzhen to National
Payment: Online banking

Product Price:

Product Description:

NSG 4070C1 is a new product manufactured by AMETEK TESEQ to replace the NSG 4070C, which isNSG 4070BAs the C and C1 versions have essentially the same parameters, it is now sufficient to purchase the latest version of the NSG 4070C1 to set up a conducted immunity test system and a radiated immunity test system.

New feature introduction:

The new NSG4070C1 contains all the features of the 4070, but with upgraded output power and test frequency range, the NSG4070C1 can now be used for both radiated and conducted immunity testing from 4kHz to 1GHz. This product is represented by EUTTEST for sales and after-sales service, and we will provide you with an EMC test system that complies with a wide range of test standards such as IEC / EN 61000-4-6.

The list of testable standards for NSG 4070C1 is given below:

  • IEC/EN 61000-4-3
  • IEC/EN 61000-4-6
  • IEC/EN 61000-4-20
  • IEC/EN 61000-4-21
  • IEC 62132
  • ISO 11452-4 BCI Testing
  • MIL-STD-461 CS114 Testing
  • RTCA DO-160G CS test
  • Ford FMC1278 BCI Test
  • Namur Radiation Immunity Test

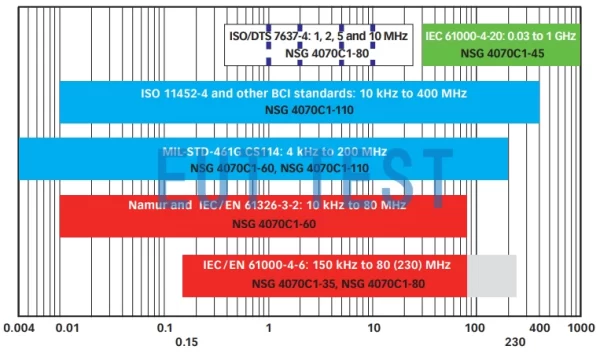

NSG 4070C1 can test a wide range of standard numbers.

NSG 4070C1 can test a wide range of standard numbers.

In addition, anyone who spends a lot of time on test level setup, connecting EUT monitoring, or writing test reports can now use the fifth-generation NSG 4070C1 to perform immunity testing in a more efficient manner. Its modular setup with internal or external amplifiers enables a variety of applications. Powerful and easy-to-use firmware makes the 4070C1 independent of external PCs and control software, but it can also be operated remotely to control the system. State-of-the-art test and measurement data can be transferred for documentation by plugging in a front-panel USB memory stick

NSG 4070C1 Product Features:

  • Integrated signal generator 4 kHz to 1 GHz
  • 3 power meter inputs 4 kHz to 1 GHz
  • Multiple EUT monitoring options
  • 5,7" TFT color display
  • Internal, menu-based control software
  • Includes basic remote control software and report generator
  • Optocoupler Remote Control
  • whispering mode

Technical parameters:

Teseq, an AMETEK-CTS company, produces the NSG 4070C1 with built-in RF signal generator, power amplifier, and power meter modules, each of which is listed below:

Signal generator module:

<<<<提醒:左右滑动表格>>>>
Product modelNSG 4070C1
Product BrandsAMETEK - Teseq
agentEUTTEST
RF frequency range:4 kHz to 1 GHz (new upgraded 4 kHz version)
Definition ratio:1 Hz
ageing25ppm
Reference Frequency:Reference frequency output: 10MHz
RF level level range:-60 dBm to +10 dBm
Resolution:0.1 dB
Setting time:10 ms
Modulation depth:0 – 100%
Modulation frequency range:1 Hz to 50 kHz
frequency resolution1 Hz
pulse modulation

Rise/fall time (10%/90%):

< 1 µs
Modulation frequency range:1 Hz to 50 kHz
Frequency resolution:1 Hz
Duty Cycle:10% to 90%
external modulation

Delay:

< 1 µs / 180°
Cycle:Minimum 20 μs
Pulse width:Minimum 10 µs
<<<<提醒:左右滑动表格>>>>

Power meter module:

<<<<提醒:左右滑动表格>>>>
Frequency range:4 kHz - 1 GHz (new upgraded 4 kHz version)
Linear measurement range channel 1:

Channels 2, 3

-35 dBm to +27 dBm

(NSG 4070C1-60 and NSG 4070C1-110: -40 dBm to +27 dBm)

-45 dBm to +20 dBm

Maximum input/no damage

Channels 1-3:

+28 dBm
Bottom noise:>5dB
Input return loss:>20 dB (below 500 MHz), >17 dB (500 MHz to 1 GHz)
Connectors:BNC Socket, 50 Ω
<<<<提醒:左右滑动表格>>>>

Power amplifier module technical parameters:

As you can see below, the NSG 4070C has an overall increase in output power over the NSG 4070, so you can just as easily choose from the three different NSG4070C configurations in the table below, depending on output power. And contact EUTTEST for quote information.

NSG 4070C-35

Combined immunity test system NSG 4070C1, 4 kHz - 1 GHz RF generator and power meter (euttest 35 W module 150 kHz - 230 MHz)

NSG 4070-45

Combined immunity test system NSG 4070C1, 4 kHz - 1 GHz RF generator and power meter (euttest 45 W module 9 kHz - 1 GHz)

NSG 4070-60

Combined immunity test system NSG 4070C1, 4 kHz - 1 GHz RF generator and power meter (euttest 60 W module 4 kHz - 400 MHz)

NSG 4070-80

Combined immunity test system NSG 4070C1, 4 kHz - 1 GHz RF generator and power meter (euttest 80W module 150 kHz - 230 MHz)

NSG 4070-110

Combined immunity test system NSG 4070C1, 4 kHz - 1 GHz RF generator and power meter (euttest 110W module 4 kHz - 400MHz)

NSG 4070C1-0 + external amplifier

Combined Immunity Test System NSG 4070C1, 4 kHz - 1 GHz RF Generator and Power Meter (euttest 260W module 4 kHz - 400MHz), External Power Amplifier

<<<<提醒:左右滑动表格>>>>
Model:NSG 4070C1-35NSG 4070C1-45NSG 4070C1-60NSG 4070C1-80NSG 4070C1-110NSG 4070C1-260
Normal output power:35 W45 W60W80 W110W260W
Frequency range:150 kHz - 230 MHz9 kHz - 1GHz10 kHz (4 kHz) - 400 MHz150 kHz - 230 MHz10 kHz (4 kHz) - 400 MHz10 kHz (4 kHz) - 400 MHz
Input Impedance:50 Ω50 Ω50 Ω50 Ω50 Ω50 Ω
Output Impedance:50 Ω50 Ω50 Ω50 Ω50 Ω50 Ω
Input return loss:10 dB minimum10 dB minimum10 dB minimum10 dB minimum10 dB minimum10 dB minimum
Output return loss:0 dB0 dB0 dB0 dB0 dB0 dB
Gain:48 dBm minimum50 dBm minimum45 dB -50 dBm50 dBm minimum43 dBm -49.99 dBm54dBm
Gain Flatness:Maximum +/-3 dBMaximum +/-3 dBMaximum +/-3 dBMaximum +/-3 dBMaximum +/-3 dBMaximum +/-3 dB
Saturated output power:43 dBm minimum45 dBm minimum42dBm -48.5dBm48.75 dBm minimum41dBm -48.5dBm52dBm
<<<<提醒:左右滑动表格>>>>

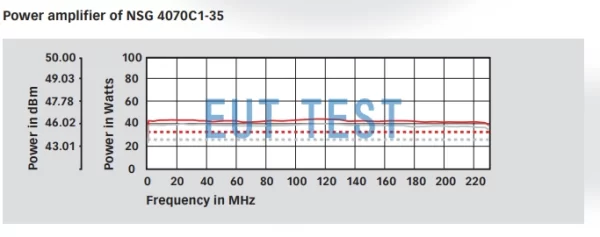

Output power graph of the power amplifier of NSG 4070C1-35 (preliminary data)

Output power graph of the power amplifier of NSG 4070C1-35 (preliminary data)

In the above graph, from top to bottom: typical saturated power, typical linear power, specification saturated power, specification linear power

Contact EUTTEST for output power data for other models.
