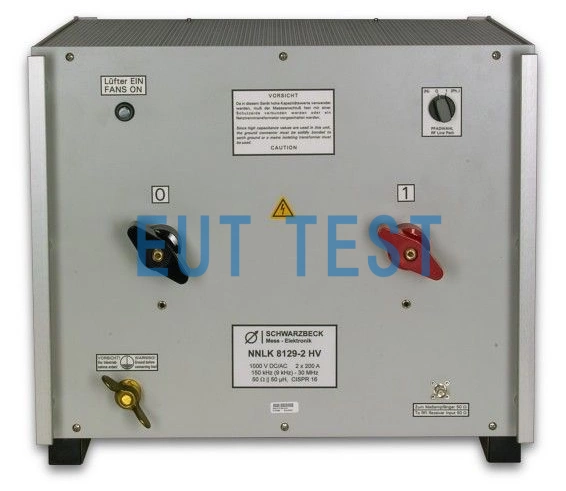

NNLK 8129-2 HV Schwarzbeck Single-phase high-voltage artificial power supply network Voltage 1000V

Model: NNLK 8129-2 HV
Brand: Schwarzbeck

Min. order: 1 unit
Stock: 0
Delivery: 1-16 weeks

Standards:
Industry: /

Warranty: Original Import ; New Products ; Authorized Sales
Training: On-site training; Telephone; Email
Logistics: Shenzhen to National
Payment: Online banking

Product Price:

Introduction:

The NNLK 8129-2 HV is a LISN Linear Impedance Stabilization Network manufactured by Schwarzbeck, Germany and authorized for sale by EUTTEST to test single-phase AC DUTs with a power line ground voltage of 1000V and a current of 200A. Its coaxial RF output must be connected to the EMI measurement receiver using a BNC coaxial cable. You can choose the path that needs to be measured using the path switch on the front panel to select the path to be measured, and the actual unmeasured path will be automatically linked 50 Ω.

Technical parameters:

<<<<提醒:左右滑动表格>>>>
Model numberNNLK 8129-2 HV
manufacturerSchwarzbeck
Device nameV-LISN, artificial power network, linear impedance stabilization network
Available Power Suppliessingle phase electric power plant
Available frequency150 kHz - 30 MHz
impedance50 µH || 50 Ω
Maximum EUT voltage1000 VAC 50/60 Hz
1000 VDC
connector12mm Terminal Block
agentEuttest.com
Maximum EUT current2*200A
RF connector50Ω BNC
lengths445 mm
height385 mm
high degree520 mm
quality30 kg
optionHigh voltage power input and output + waterproof
Available CriteriaCISPR 16-1-2
<<<<提醒:左右滑动表格>>>>

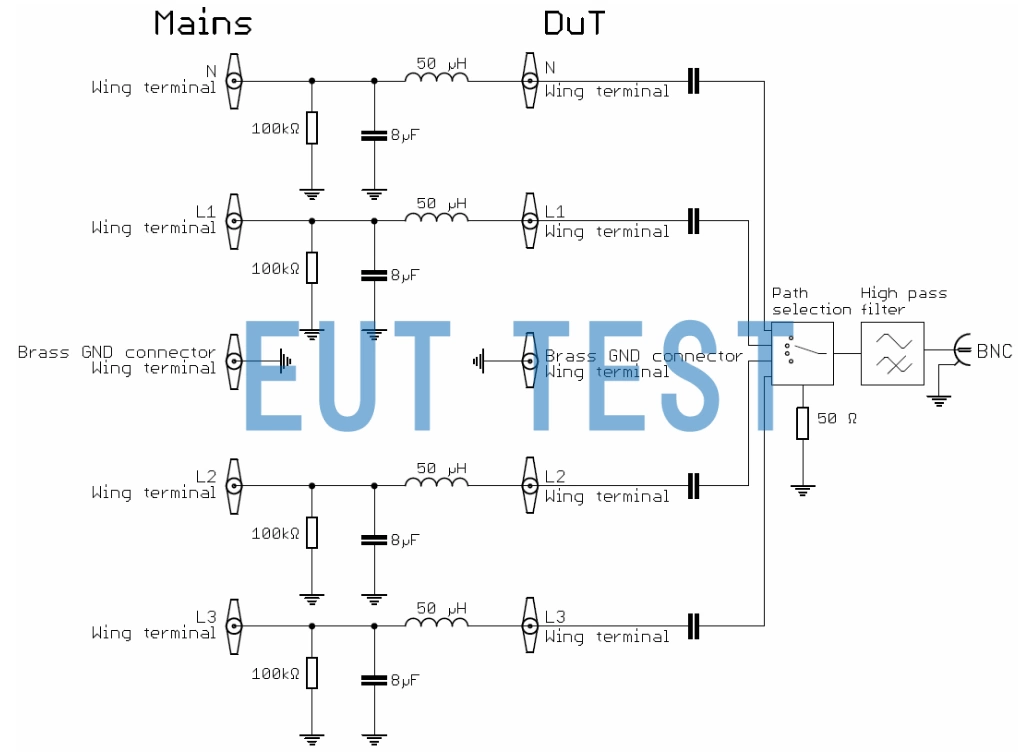

Circuit schematic for NNLK 8129-2 HV

Circuit schematic



Curves related to the technical parameters of NNLK 8129-2 HV:

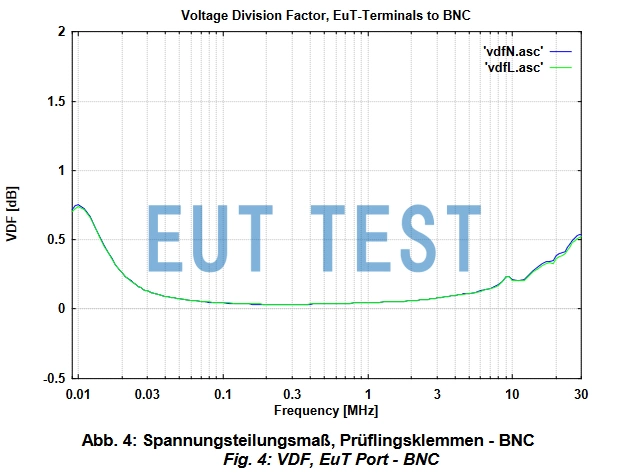

VDF Voltage Dividing Factor for NNLK 8129-2 HV

VDF Voltage Dividing Factor



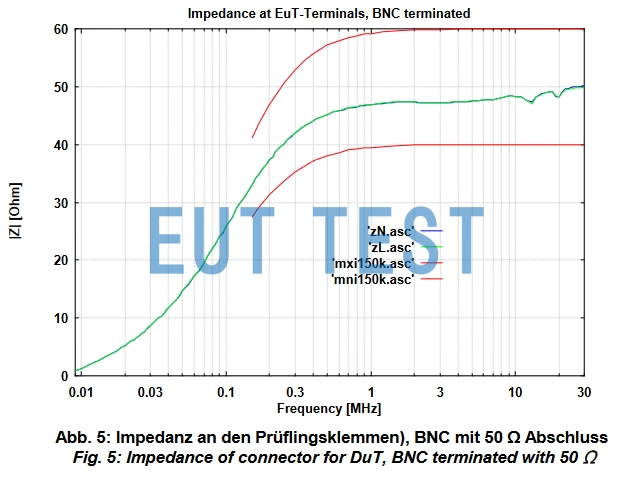

Impedance Curve of NNLK 8129-2 HV

Impedance graph

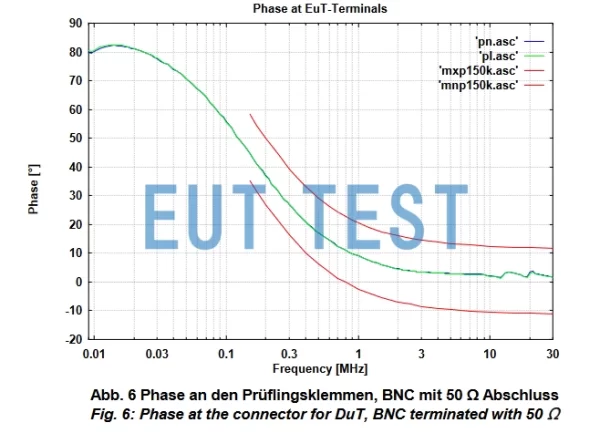

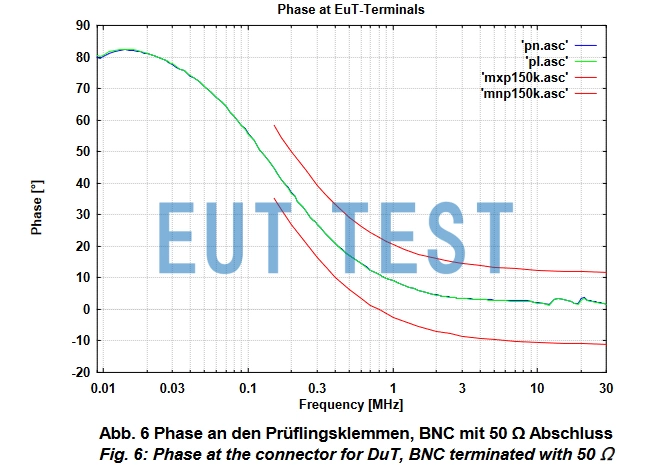

Phase Curve of NNLK 8129-2 HV

phase portrait
