NNLK 8122 Schwarzbeck Single-phase artificial power network High voltage 1000V

Model: NNLK 8122
Brand: Schwarzbeck

Min. order: 1 unit
Stock: 0
Delivery: 1-16 weeks

Standards:
Industry: /

Warranty: Original Import ; New Products ; Authorized Sales
Training: On-site training; Telephone; Email
Logistics: Shenzhen to National
Payment: Online banking

Product Price:

Introduction:

The NNLK 8122 is a LISN Linear Impedance Stabilizing Network manufactured by Schwarzbeck (Germany) and authorized for sale by EUTTEST for single-phase, high-voltage applications up to 1000 VAC and 50 A. It is equipped with a multilayer 250 μH choke and a 50 μH choke with each path connected in series. The multi-layer chokes provide excellent decoupling between the power supply and the device under test.

Warning:

The LISN may only be used by our trained and qualified personnel! Only connect to or disconnect from the LISN when the LISN is disconnected from the input voltage, otherwise you run the risk of fatal injury from the current!

Technical parameters:

<<<<提醒:左右滑动表格>>>>
Model numberNNLK 8122
manufacturerSchwarzbeck
agentEuttest
Device nameV-LISN, artificial power network, linear impedance stabilization network
Available Power Suppliessingle phase electric power plant
Available frequency9 kHz - 30 MHz
impedance(50 µH+5 Ω) || 50 Ω
Maximum EUT voltage750 VAC 50/60 Hz
1000 VDC
Maximum EUT current50A
RF connector50Ω BNC
lengths450 mm
height290 mm
high degree550 mm
quality22.2 kg
optionHigh voltage power input and output + waterproof
Available CriteriaCISPR 16-1-2
<<<<提醒:左右滑动表格>>>>

Graph of related technical parameters:

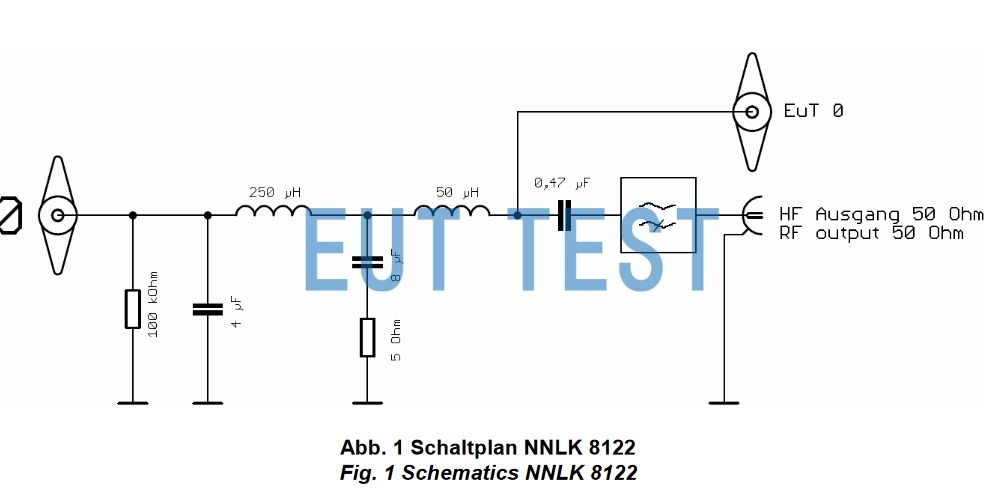

NNLK 8122 Circuit Schematic Diagram

Circuit schematic

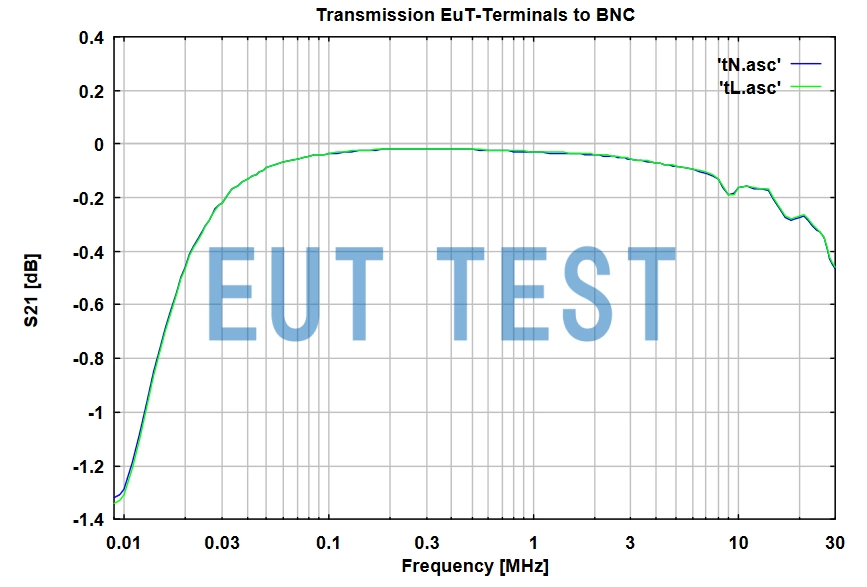

NNLK 8122 S21 Curve Diagrams

S21 Curve Diagram

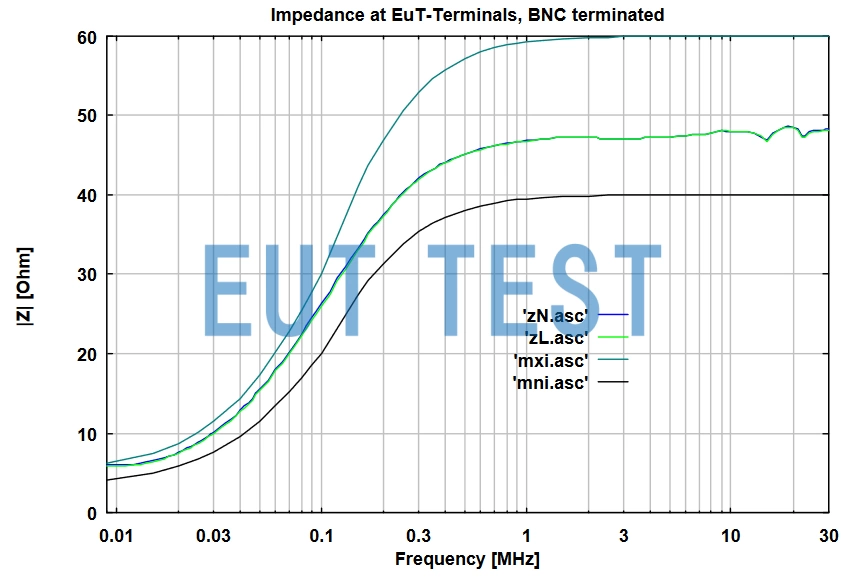

NNLK 8122 Impedance Curves

Impedance graph

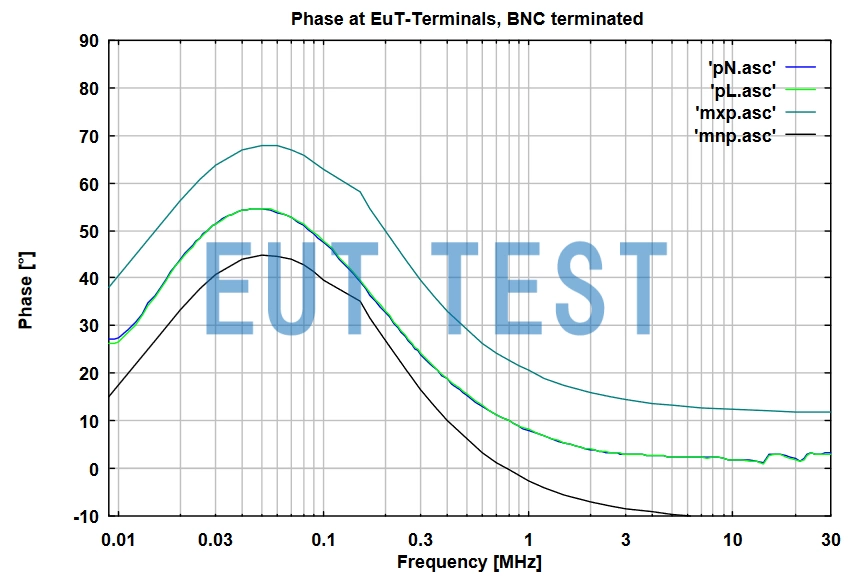

NNLK 8122 Phase Curve Diagrams

phase portrait
