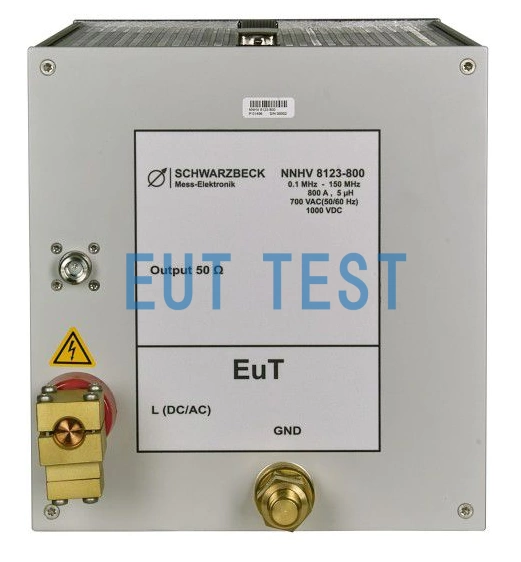

NNHV 8123-800 Schwarzbeck HVAN Human Network Current 800A

Model: NNHV 8123-800
Brand: Schwarzbeck

Min. order: 1 unit
Stock: 0
Delivery: 1-16 weeks

Standards:
Industry: /

Warranty: Original Import ; New Products ; Authorized Sales
Training: On-site training; Telephone; Email
Logistics: Shenzhen to National
Payment: Online banking

Product Price:

Introduction:

NNHV 8123-800 is the latest 800A HV AN - High Voltage Artificial Network for automotive electronics from Schwarzbeck, Germany. The LISN has a maximum continuous operating current of 800A and a maximum short-time operating current of 1000A, and is compliant with the standards CISPR 25 Ed. 4 and BMW GS 95025-1. It can be used for new energy vehicle electronic parts testing needs.

Meets criteria:

  • ISO 11452-4
  • CISPR 25 ed4.0 latest version
  • BMW GS 95025-1
  • GB/T 18655-2018

CISPR 25 is a standard number that applies to any electronic/electrical component on vehicles, boats, and internal combustion engines used for testing radio nuisance testing of vehicles, trailers, and installations to protect adjacent receivers on board the vehicle in proper working order. The name of the standard is: Vehicles, boats and internal combustion engines Radio disturbance characteristics Limits and methods of measurement for the protection of on-board receivers Vehicles, boats and internal combustion engines-Radio disturbance characteristics -Limits and methods of measurement for the protection of on-board receivers

Our standard GB 18655 is the Chinese translated version of CISPR25.

Product Features:

  • It is mainly applied to the electromagnetic interference voltage test of single power line of automobile electronic parts products.
  • Meet the requirements of the latest version of CISPR 25:2016 Edition 4.0 4th Edition and BMW GS 95025-1 and GB/T 18655-2018 standards.
  • Tests can be performed with shielded cables in the HF-VHF i.e. 0.1MHz-150MHz frequency range.
  • It can be terminated with our 50Ω ohm load terminals and used for BCI high current injection testing according to ISO 11452-4.
  • Input impedance suitable for test receiver measurements is realized by shunt inductance: 5μH | | 50Ω.
  • The maximum continuous input current of 800A is able to test larger current vehicle electronic products, making up for the previous problem of not being able to test large currents.

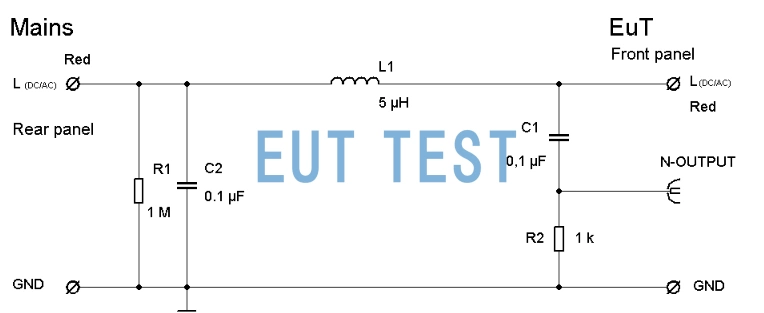

Circuit Impedance Schematic

Circuit Impedance Schematic

NNHV 8123-800 Tested with HVSE 8601 High voltage shielding is used, contact EUTTEST for more information.

Technical parameters:

<<<<提醒:左右滑动表格>>>>
High Voltage Artificial Power Network ModelNNHV 8123-800
manufacturerSchwarzbeck
agentEUTTEST
Product nameHigh Voltage DC Artificial Power Networks
Available frequency range0.1-150MHz
Maximum continuous current800A
Maximum current (short time)1000A
Maximum DC Voltage1000V
Maximum AC 50/60Hz voltage700Vrms
Maximum AC 400Hz voltage300Vrms
impedanceCompliance with CISPR 25:2016 Edition 4.0 High Voltage LISN Requirements
HV Cable4-15mm
connectorN mother
size226*241*407mm
weight12.2kg
<<<<提醒:左右滑动表格>>>>

Graph of related technical parameters:

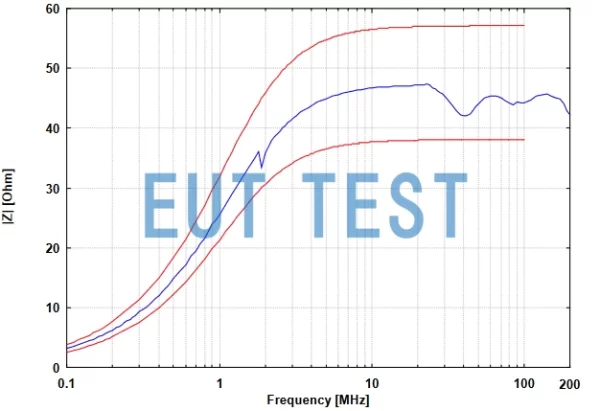

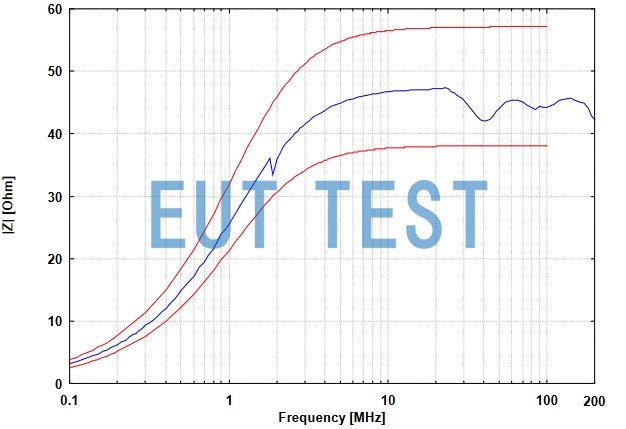

EUT Port Impedance Graph

EUT Port Impedance Graph

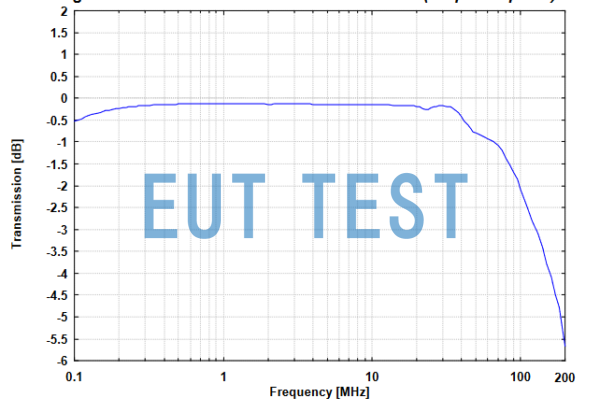

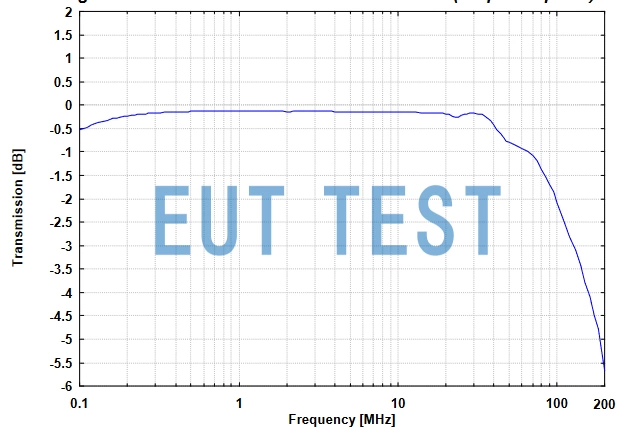

Partial pressure coefficient graph

Partial pressure coefficient graph

other

We provide quotation and after-sales consulting service for NNBM 8123-800, if this equipment can not meet your requirements, please go to the following product page to select more LISN and AMN that we represent.

LISN and AMN Schwarzbeck Options and Offers



Service

Our company sells all the instrumentation equipment products provide after-sales personnel door-to-door training or telephone, e-mail, microblogging and other ways of installation and training services.

We are committed to supplying equipment that is brand new and manufactured by the original manufacturers at home and abroad.

After-sales of the product is carried out by the after-sales policy provided by the original equipment manufacturer.

Purchase

The EUTTEST website does not sell any products online and is only used to display information about the products that our company represents and sells or researches in-house.

The prices shown are for display purposes only, please contact our sales staff to get the real-time quotation information of the required instruments and equipment products;

When you confirm your purchase, we will contact you to sign a purchase and sales contract.

Our company only deals with companies and provides formal Chinese VAT special invoices.

Sales call:134 2515 8926

Sales mailbox:sales@euttest.com

Company Wechat: euttest
