Introduction：
NNBM DO160-1500 is a new artificial power network for onboard avionics launched by Schwarzbeck in 2024. It supports up to 200A continuous current and meets the requirements of the latest standards DO-160 and DEF-STAN-59 test criteria.
DO160-1500 ratio NNBM 8126-A 890 The LISN products have higher available current and come with a 10μF capacitor, so there is no need to purchase additional options to start testing. Please select the appropriate LISN product based on your test current requirements or contact us.
Technical parameters：
<<<<提醒：左右滑动表格>>>>| Model number | NNBM DO160-1500 |
| manufacturer | Schwarzbeck |
| agent | EUTTEST |
| Frequency range | 9kHz - 400 MHz |
| Maximum continuous current | 200A |
| Maximum short-time current | 280A |
| Maximum DC Voltage | 1500V |
| Maximum 400Hz voltage | 650V |
| Maximum 890Hz voltage | 650V |
| impedance | 5 μH || 50 Ω(±20 %) |
| agent | Euttest.com |
| DC Impedance, EUT to Main Port | <5 mΩ |
| 50Hz impedance | 4.2 mΩ |
| 400Hz impedance | 13 mΩ |
| EUT Connectors | 8mm |
| size | 220*220*320mm |
| weight | 3.8kg |
Technical parameter graphs:

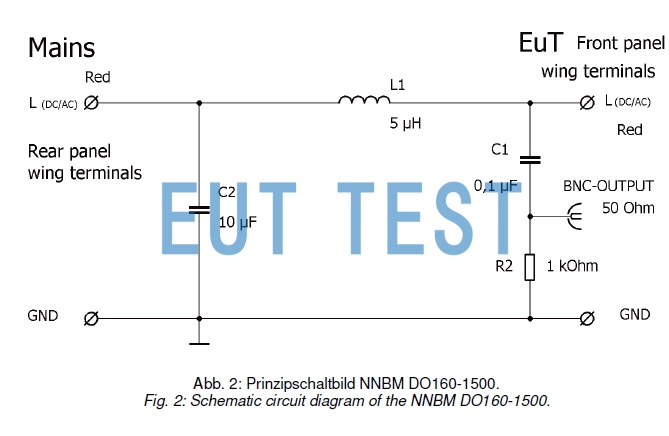

Circuit Design Schematic
You can additionally purchase schwarzbeck's KA 8125 calibration adapter option for calibrating the impedance curves of the NNBM DO160-1500.

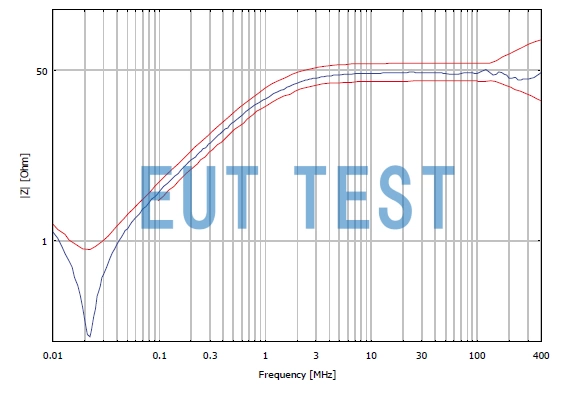

Impedance test curves with the addition of the calibration adapter option
