Introduction：

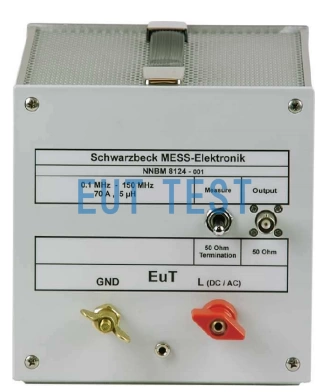

NNBM 8124 is manufactured by Schwarzbeck, Germany and authorized by EUTTEST Shenzhen.Artificial network for automotive electronics LV AN- Artificial network, the LV AN's maximum continuous operating current of 70A, the maximum short-time current up to 100A.
Test standards for major applications:
The NNBM 8124 measures interference voltages from 0.1 to 150 MHz in the HF-VHF range for vehicles, aircraft and ships. it can also be used for bulk current injection (BCI) testing or transient measurements according to ISO 7637-2. Circuit principles with impedance characteristics (5 µH + 1 Ω) || 50 Ω according to CISPR 16, CISPR 25 and MIL-STD-461F can also be realized, and the optional external capacitor CAP 10 can also be used for the DO-160 aeronautical standard and DEF-STAN59.

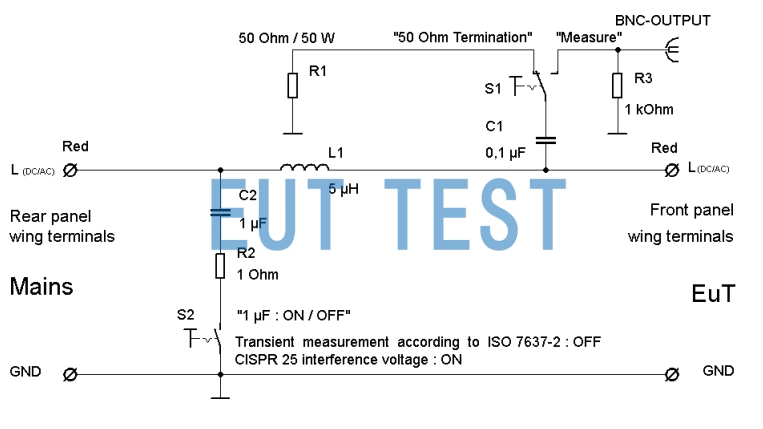

Impedance Characterization Circuit Schematic for NNBM 8124
Technical parameters：
<<<<提醒：左右滑动表格>>>>| LISN Model | NNBM 8124 |
| manufacturer | Schwarzbeck |
| Frequency range | 100kHz-150MHz |
| Maximum continuous current | 70A |
| Maximum current | 100A |
| Maximum DC Voltage | 500V |
| Maximum 50/60Hz voltage | 250V |
| Maximum 400Hz voltage | 130V |
| agent | Euttest.com |
| impedance | (5 µH + 1 Ω) || 50 Ω ±10 % |
| weight | 1.9kg |
| size | 160 mm x 210 mm x 165 mm |
| Meet the standard | CISPR 16-1-2, Annex D2,D3 CISPR 25 MIL-STD-461F ISO 7637-2 Transients ISO 11452-4 BCI DO-160 (Airborne equipm.) DEF-STAN-59 |
Graph of related technical parameters：

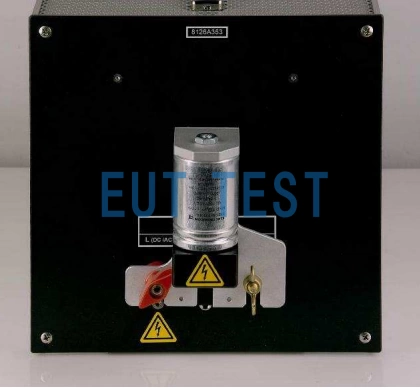

NNBM 8124 Mounted 10μF Capacitor

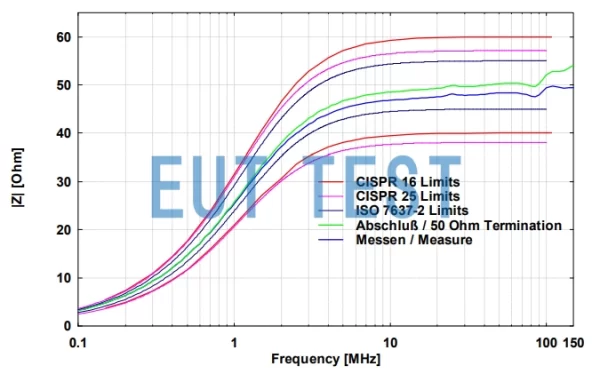

Impedance Curve for NNBM 8124

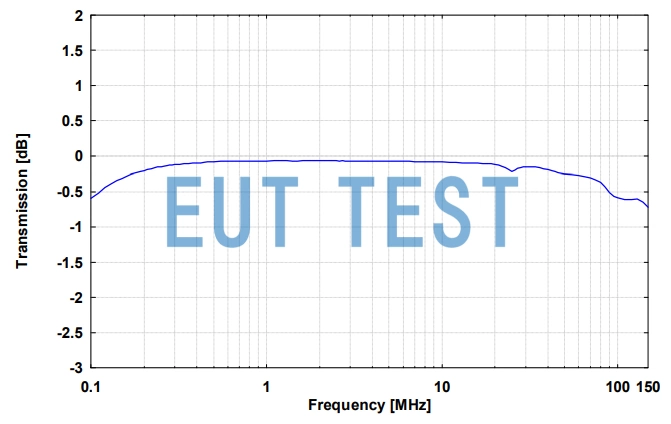

Transmission Divide Ratio Graph for NNBM 8124
