NNBM 8124-200 Schwarzbeck Automotive Electronics Low Voltage AN Current 200A

Model: NNBM 8124-200
Brand: Schwarzbeck

Min. order: 1 unit
Stock: 0
Delivery: 1-16 weeks

Standards:
Industry: /

Warranty: Original Import ; New Products ; Authorized Sales
Training: On-site training; Telephone; Email
Logistics: Shenzhen to National
Payment: Online banking

Product Price:

Introduction:

NNBM 8124-200 is a low-voltage artificial network AN- Artificial network for automotive electronics produced by Schwarzbeck, Germany and authorized to be sold by Shenzhen EUTTEST agent, which has a maximum continuous current rating of 200 A, and a short time exceeding 280 A is possible. The DUT will be connected to the wing terminal on the front panel during testing.

Test standards that can be used:

The NNBM 8124-200 is manufactured and produced primarily on the principle of the (5 μH + 1 Ω)|| 50 Ω impedance characterization circuit required by the CISPR25 standard to measure interference voltages in the HF-VHF range of 0.1-110 MHz for vehicles, aircraft, and ships according to the standard. The NNBM 8124-200 can also be used in the ISO 11452-4 high current injection BCI testing or transient measurements according to ISO 7637-2.

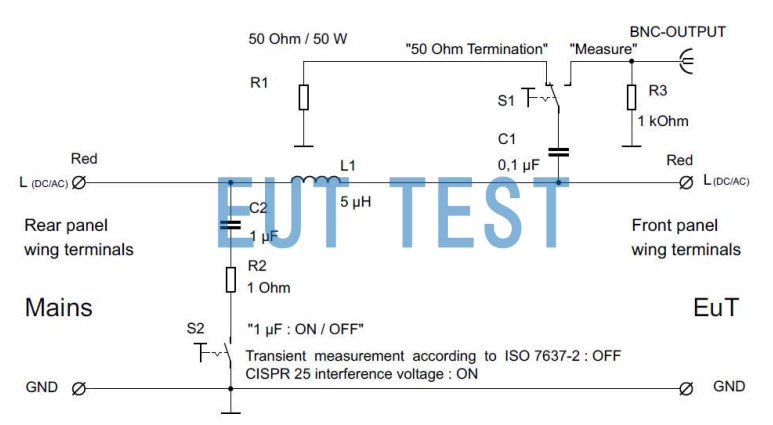

Circuit Schematic for NNBM 8124-200

Circuit Schematic for NNBM 8124-200

Technical parameters:

<<<<提醒:左右滑动表格>>>>
AN ModelNNBM 8124-200
manufacturerSchwarzbeck
Frequency range0.1 - 110 (150) MHz
Maximum continuous current200A
Maximum current280A
Maximum DC Voltage1000V
Maximum 50/60Hz voltage400V
Maximum 400Hz voltage300V
agentEuttest
impedance(5 µH + 1 Ω) || 50 Ω ±10 %
weight3 kg
size160 x 165 x 210 mm
Meet the standardCISPR 16-1-2, Annex D2,D3

CISPR 25

ISO 7637-2 Transients

ISO 11452-4 BCI

<<<<提醒:左右滑动表格>>>>

Graph of related technical parameters:

 Impedance Curve for NNBM 8124-200

Impedance Curve for NNBM 8124-200

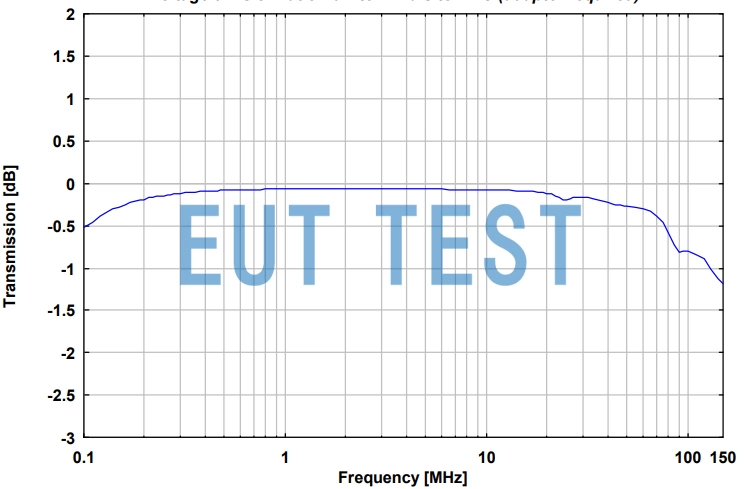

 NNBM 8124-200 Transmission Partition Ratio Graphs

NNBM 8124-200 Transmission Partition Ratio Graphs

Other:

We provide quotation and after-sale consulting service for NNBM 8124-200, if this equipment can not meet your requirements, please go to the following product page to choose more LISN and AMN that we sell.

LISN and AMN Schwarzbeck Options and Offers
