Introduction：

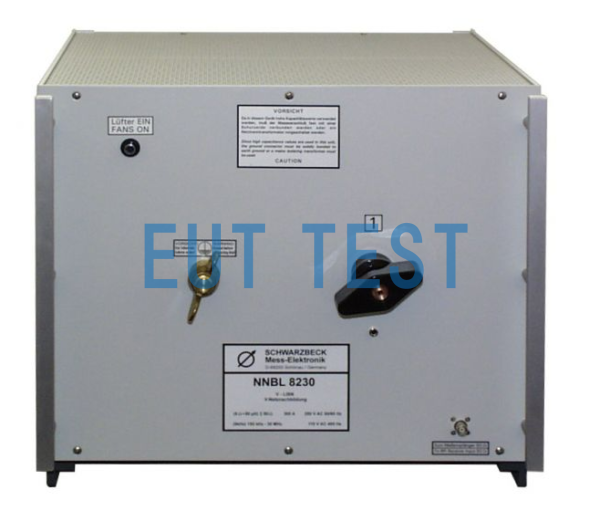

The NNBL 8230 is one of the test instruments produced by Schwarzbeck and authorized for sale by our company under the name of LISN-Linear Impedance Stabilization Network. The LISN supports a maximum working current of 300A for DUT, you can even use it up to 500A in a short time, and it can be used to test the military equipments up to the conventional voltage of 250V, but it can only work in the range of 30MHz, so it is also designed according to the CISPR16-1-2, but it also meets the military standard requirements, so the LISN is mainly positioned as follows It is used to test the EMC of military electronic products that work with utility power.
The LISN is designed with 50µH+5Ω impedance and complies with the latest version of AFSL and NTSC EMC test standards, which are listed in the technical data table below.
Impedance Design Schematic
Technical Parameter Sheet:
<<<<提醒：左右滑动表格>>>>| Model number | NNBL 8230 |
| manufacturer | Schwarzbeck |
| agent | Euttest |
| Instrument Name | Linear impedance stabilized network LISN |
| Available test standards | MIL-STD-461D MIL-STD-461E MIL-STD-461F GJB151B-2013 |
| Test frequency range | 9kHz-30MHz |
| Maximum continuous operating current | 300A |
| Maximum instantaneous operating current | 500A |
| DC Impedance | 10mΩ |
| connector | M16 |
| Maximum working voltage | DC:250V AC 50/60Hz: 250V AC 400Hz: 140V |
| impedance | (50µH+5Ω) || 50Ω ±20% |
| weight | 20kg |
| size | 0.45*0.39*0.54m |
For more information about NNBL8230, please contact us for more information.
