Introduction：
NNBL 8226 is one of the test instruments produced by SCHWARZEBCK and authorized to be sold by our agent, its Chinese name is Linear Impedance Stabilization Network, generally referred to as the industry abbreviation for LISN. The LISN supports a maximum of 70A of the DUT working current, which is much higher than theNNBL 8225 Models have higher currents, so please select the appropriate model for your testing needs.
The LISN is designed with 50µH+5Ω impedance and complies with the latest version of AFSL and NTSC EMC test standards, which are listed in the technical data table below.

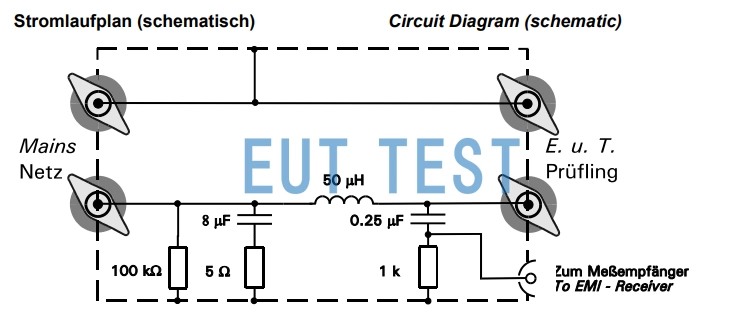

Circuit Impedance Schematic
Technical Parameter Sheet:
| Model number | NNBL 8226 |
| manufacturer | Schwarzbeck |
| agent | Euttest |
| Instrument Name | Linear impedance stabilized network LISN |
| Available test standards | MIL-STD-461E GJB151B-2013 |
| Test frequency range | 9kHz-100MHz |
| Maximum continuous operating current | 70A |
| Maximum working voltage | DC:250V AC 50/60Hz: 250V AC 400Hz: 140V |
| impedance | (50µH+5Ω) || 50Ω ±20% |
| weight | 4.5kg |
| size | 0.22*0.22*0.26m |
For more information about NNBL8226, please contact us for more information.
