NNBL 8225 Schwarzbeck Linear Impedance Stabilization Network Current 20A

Model: NNBL 8225
Brand: Schwarzbeck

Min. order: 1 unit
Stock: 0
Delivery: 1-16 weeks

Standards:
Industry: /

Warranty: Original Import ; New Products ; Authorized Sales
Training: On-site training; Telephone; Email
Logistics: Shenzhen to National
Payment: Online banking

Product Price:

Introduction:

NNBL 8225 is this Line Impedance Stabilization Network manufactured by Schwarzbeck, Germany and authorized to be sold by Shenzhen EUTTEST agent, this LISN supports DUT EUTs up to a maximum continuous current of 20A and DC voltages up to 250V and is designed to be used according to MIL461E or MIL461F (RE/CE EMI Characterization Measurement). This corresponds to 50 μH +5 Ohm || 50 Ohm in CISPR 16-1-2 Chapter 4.2. Unlike the newer CISPR versions, military standard EMC has no requirements for impedance phasing or decoupling between the LISN power supply and the EUT side.

Meets criteria:

GJB151B-2013

MIL-STD-461 E/F

Technical parameters:

<<<<提醒:左右滑动表格>>>>
Model numberNNBL 8225
manufacturerSchwarzbeck
agentEUTTEST
Frequency range(9) 150 kHz - 100 MHz
Maximum continuous current20A
Maximum voltage DC250V
Maximum AC 50/60Hz voltage250V
Maximum 400Hz voltage140V
impedance(50μH+5Ohm)||50Ohm (± 20 %)
DC Impedance10mΩ
weight2.2kg
size0.16 x 0.16 x 0.26m
RF connectorBNC
<<<<提醒:左右滑动表格>>>>

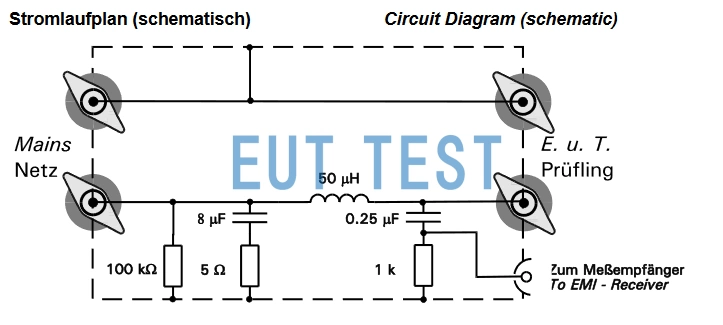

Circuit Schematic for NNBL 8225

Circuit schematic

Graph of related technical parameters:

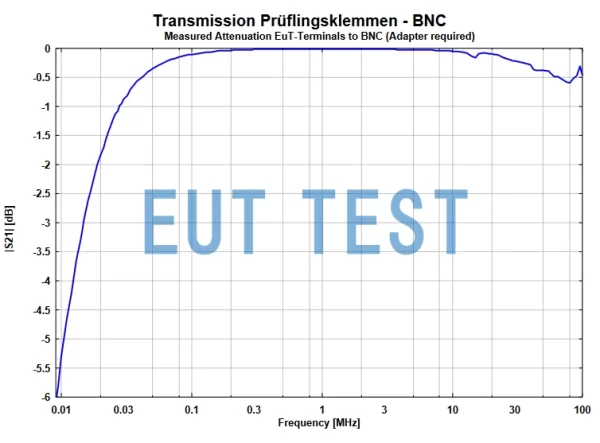

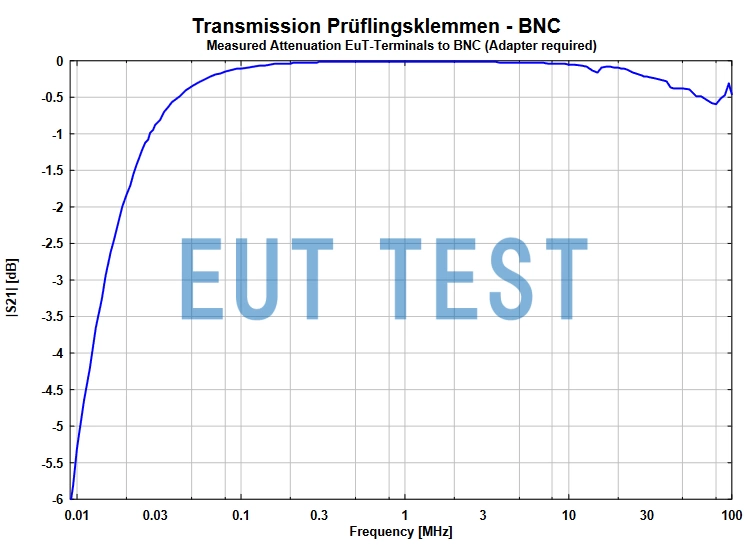

EUT port to BNC port attenuation for NNBL 8225

EUT port to BNC port attenuation

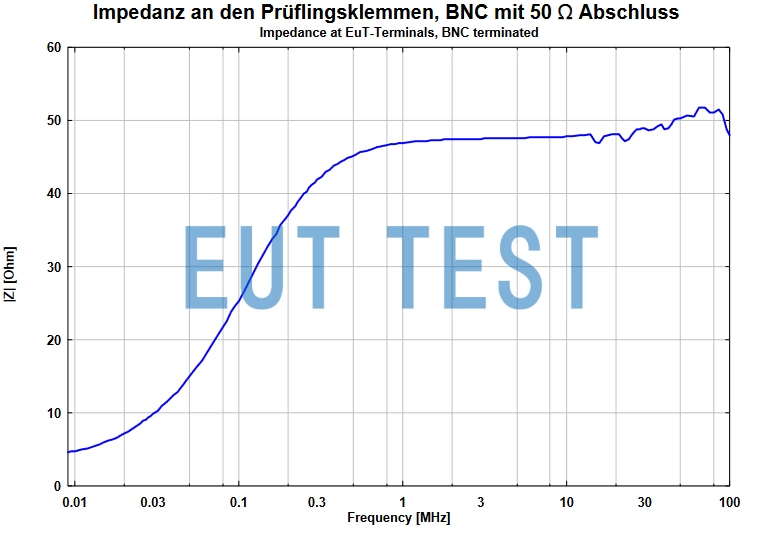

NNBL 8225 Impedance

impedance



You can chooseLISN for larger test currents and voltages
