Introduction:
MFPO 9760 is a high-current magnetic field generator produced by Schwarzbeck in Germany and authorized to be sold by Shenzhen EUTTEST. Using this magnetic field generator with FESP 5410-1 or FESP 5210-1 magnetic field coil, the power frequency magnetic field immunity test required by the following standards can be completed.:
IEC 61000-4-8 Industrial Frequency Magnetic Field Immunity Test System (including national standard: GBT 17626.8)

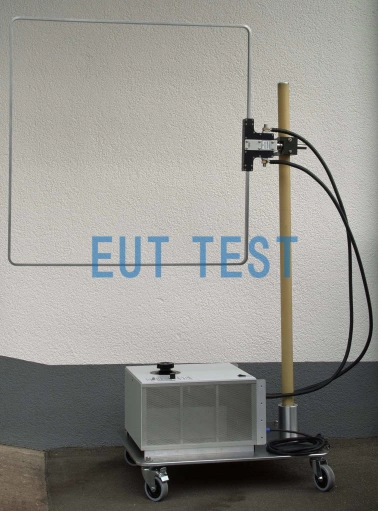

Physical map of the test with magnetic field coil
function:
Continuous current output function:
MFPO 9760 can output a maximum continuous line current of 400A, and it can reach 1200A within 5 seconds, which meets the standard requirements of 100A (determined according to the magnetic field coil).

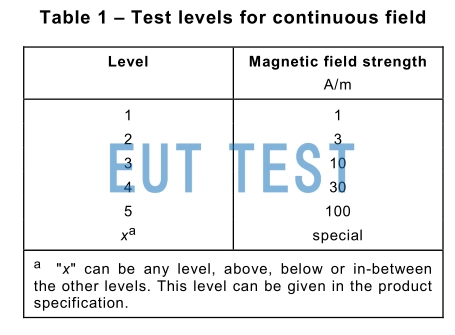

IEC 61000-4-8 standard requires that the power frequency magnetic field needs to complete a continuous magnetic field interference test
Short-term current output function:
MFPO 9760 can set the output current pulse interval of 0.5-5.0 seconds, which meets the standard requirements of 1-3 seconds.

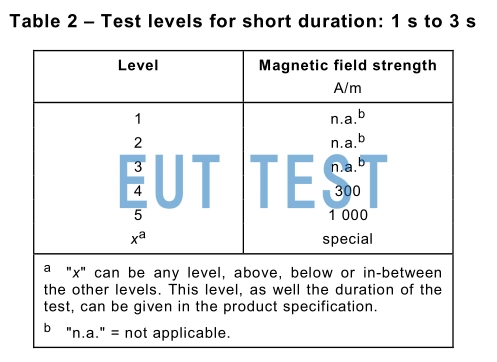

IEC 61000-4-8 standard requires the power frequency magnetic field to complete the short-term magnetic field interference test
Technical parameters:
<<<<提醒:左右滑动表格>>>>Product model | MFPO 9760 |
manufacturer | SCHWARZBECK, Germany Agent EUTTEST |
Interval time | Can be set 0.5-5.0 seconds as needed |
Input power | 230V / 50/60Hz / 16 A |
Maximum continuous current input | 400A |
Maximum current @5 minutes | 600A |
Maximum current @5 seconds | 1200A |
Maximum field strength (ring center) | >1000A/m |
Maximum measurable EUT cross section | 1 square meter |
material | aluminum |
size | 650*800*490mm |
weight | 60kg |
connector | M16 |
Other options (configured by euttest) | Ammeter Voltage probe A test environment such as a test table that meets the requirements of the standard |
